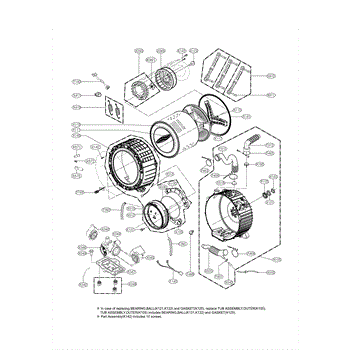

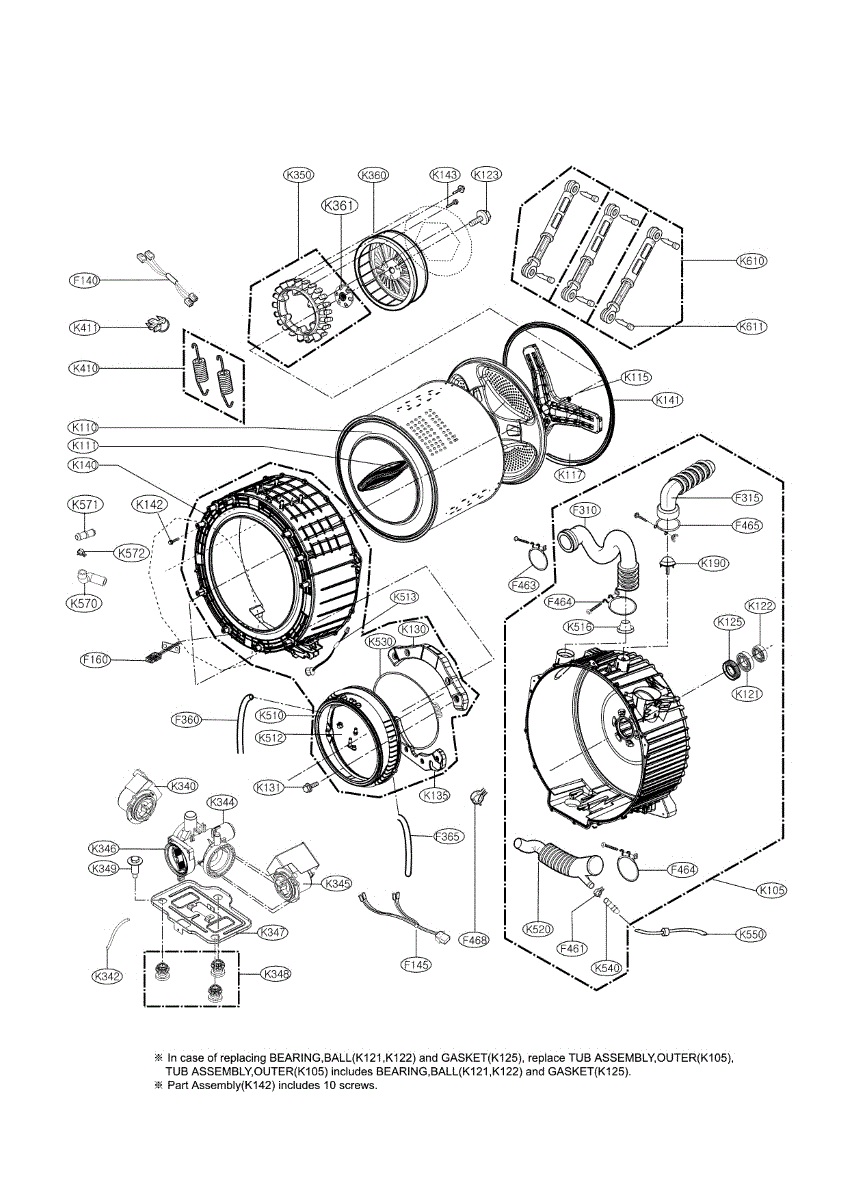

Parts for Kenmore 796.41963610 (79641963610, 796 41963610): Drum And Tub Parts

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.

This lifter is a replacement drawer support that helps hold and guide a refrigerator/freezer drawer for smooth, even operation. Restores proper alignment and reduces sticking or uneven movement. What it does:

• Supports and stabilizes a sliding drawer so it opens and closes smoothly
• Helps maintain proper drawer alignment and load distribution
• Worn or broken lifters can cause sagging, binding, or uneven drawer movement
• Replaces damaged or missing lifter hardware to restore normal drawer function

• Disconnect power and empty the drawer before starting any repair
• Remove the drawer or access panel per your model's service instructions to reach the lifter
• Install the new lifter in the same orientation and secure any retaining clips or screws; do not force parts into place
• If fasteners or adjacent guides are damaged, replace them as well for a secure fit

This drum spider is the rear support that attaches the washer's inner drum to the drive assembly, restoring stable spinning and reducing wobble, banging and vibration caused by a cracked or corroded support. What it does:

• Holds and centers the inner drum and transmits motor torque to the tub during spin cycles.
• Worn or broken spiders commonly cause loud banging, heavy vibration, or wobbling during spin.
• A failed spider can lead to uneven spinning and accelerate bearing or seal wear.
• Replacing the spider restores proper drum alignment and helps prevent further drivetrain damage.

• 1 drum spider

• Disconnect power and turn off water; drain the washer before beginning repairs.
• Replacement requires partial disassembly (removal of the outer/front panel and drum); follow for step-by-step instructions.
• Inspect tub bearings, seals and mounting hardware while the hub and shaft are exposed; replace any worn components to avoid repeat failure.

Customized machine screw for select washers that fastens specific assemblies and resists vibration. Replace a missing, stripped, or damaged factory screw to restore a solid, rattle-free fit and proper component alignment.

• Secures designated brackets, panels, or housings per the manufacturer's specifications
• Maintains alignment and stability under high-speed spin and vibration
• Replaces missing, corroded, or stripped hardware to stop looseness and noise
• Use when the original screw is worn, damaged, or lost

• Unplug the appliance and shut off water before servicing
• Support the component while removing/installing screws
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing, especially into plastic
• Keep screws organized—lengths and styles may vary by location

The Rear Tub Gasket is an OEM part for LG washing machines. It provides a watertight seal between the rear tub and the front tub assembly, preventing water leaks during the wash and spin cycles. This gasket ensures that water remains contained within the drum, contributing to the overall efficiency and performance of the washing machine.

You should replace the rear tub gasket if it becomes worn out, cracked, or damaged. Causes of a bad rear tub gasket can include general wear and tear, mold or mildew buildup, and damage from foreign objects during washing.

Symptoms of a bad rear tub gasket include:

• Water leaking from the back of the washing machine
• Visible cracks, tears, or deformation in the gasket
• Mold or mildew buildup around the gasket area
• Unusual noises during the wash cycle indicating a loose or misaligned gasket

This OEM LG part is also compatible with certain models of Kenmore washing machines.

This Screw (drawing) is a factory fastener used to secure appliance panels and components. Replacing a stripped, corroded, or missing screw restores a tight fit, reduces vibration, and helps keep assemblies correctly aligned.

• Secures panels, brackets, and mounting points as specified by the manufacturer
• Replaces screws that are lost, damaged, corroded, or stripped
• Helps address rattling, vibration, or loose-fitting parts caused by missing hardware
• Maintains proper alignment and stability of the assembly

• Disconnect power and, if applicable, shut off gas/water before servicing
• Match the screw to its original location; start threads by hand to avoid cross-threading
• Use the correct driver; tighten snugly without over-torquing into metal or plastic
• Refer to your model's parts diagram to correct location and quantity

This multi wiring harness connects multiple components to the appliance's control system, providing the necessary connectors and wiring paths for reliable electrical communication and operation. What it does:

• Routes power and signals between the control board and components such as motors, sensors, and switches
• Replaces damaged or burnt wiring that can cause intermittent operation or component failures
• Restores proper connector fit to prevent loose connections and electrical faults
• Helps resolve symptoms like no-start, certain components not receiving power, or intermittent function

• One multi wiring harness as pictured

• Disconnect power to the appliance before servicing to avoid shock or damage
• Take photos of the original wiring routing and connector orientations before removal for reference
• Match connectors carefully and avoid forcing terminals; ensure secure, full seating of each plug
• Use proper routing and retainers to prevent pinching or contact with hot/moving parts

The Gasket is an OEM replacement part for LG front-load washing machines. It sits between the washer tub opening and door, forming a watertight barrier. This helps prevent leaks during fills and spin cycles by sealing the connection.

Causes of a bad seal include cracks, cuts, or degradation of the sealing material over time and use. Improper mounting that results in gaps compromising the seal can also allow water to escape.

Symptoms of a bad seal include:

• Puddles or pools of water found below the washer after cycles
• Mineral or soap scum buildup from repeated leaks
• Slow or ineffective water removal during spins
• Soaking or waterlogged clothes that take longer to dry

This OEM LG part is also compatible with Sears/Kenmore models.

Washer screw

The Motor Stator Bolt is an OEM part for LG washing machines. This bolt secures the stator to the motor, ensuring the stability and proper functioning of the washing machine's motor assembly.

Causes of a bad motor stator bolt can include wear and tear over time, improper installation, or damage from over-tightening or impact. A compromised bolt can lead to instability in the motor, potentially affecting the washer's performance.

Symptoms of a bad motor stator bolt include:

• Unusual noises during the wash cycle
• Vibrations or shaking of the washer
• The motor not functioning properly or failing to start

This OEM LG part is also compatible with Sears/Kenmore.

This is a motor harness intended for use with washing machines. The motor harness is a wiring component that's attached to the washing machine's motor and is used to conduct electricity between the motor and the PCB. Wear and tear, damage, or other issues can arise with the motor harness over time. When there is a malfunction or failure with this component, a replacement part is necessary to continue the appliance's efficient and safe use.Signs that something has gone wrong with the washing machine's motor harness include intermittent operations or a device that won't run at all. Replacing the motor harness is a relatively easy task. Disconnect the appliance from power and wear work gloves for safety. Ensure all connections between the motor and motor harness are secure before plugging the washing machine back into to avoid the motor's accidental activation.This motor harness is an authentic OEM replacement part. It is sold as an individual unit. The motor harness is made of high-quality, durable materials. It comes sourced directly from the manufacturer to ensure compatibility. The motor harness can be installed in various models of washing machines. It fits correctly into appliances produced by Kenmore and LG.

The Vent Hose is an OEM part for LG washing machines. This hose is essential for ensuring proper ventilation within the washer, allowing air to circulate and preventing the buildup of moisture and mildew. It helps maintain the efficiency of the washing machine by facilitating the expulsion of air and excess water vapor during operation.

Causes of a bad washer vent hose can include wear and tear over time, blockages from lint or debris, or damage due to bending or pinching.

Symptoms of a bad vent hose include:

• Excessive moisture or condensation inside the washer
• Musty odors from the washing machine
• Visible cracks or holes in the hose
• Poor ventilation leading to inefficient washing cycles

This OEM LG part is also compatible with Sears/Kenmore.

The Drain Hose is an OEM part for LG washing machines. It is designed to carry used water from the washing machine to the household drain. This hose ensures that water is efficiently expelled from the washer, preventing any overflow or leakage issues.

Causes of a bad drain hose can include cracks or splits due to wear and tear, clogs from debris or residue buildup, and damage from mishandling or improper installation. Such issues can compromise the hose's ability to transport water effectively.

Symptoms of a bad Drain Hose include:

• Water leaks during or after the wash cycle
• The washer not draining properly
• Visible cracks or damage to the hose
• Unpleasant odors due to trapped debris or standing water

This OEM LG part is also compatible with Sears/Kenmore models.

The Pump Casing is an OEM replacement part for LG top-load washing machines. This casing houses the water pump, providing a protective enclosure that shields the pump from debris and external factors. The casing is designed to fit snugly around the pump, helping to maintain its position and function within the washing machine.

Causes of casing failure can include cracks or leaks from repetitive pressure fluctuations exerted during machine operation. Casings experience extensive mechanical stresses.

Symptoms of a compromised casing include:

• Water leaks near or below the pump assembly
• Noisy or grinding pump noises during water fills or drainage
• Error codes related to water flow issues

This casing fits LG top load models as well as some Kenmore configurations.

The Pump Filter Assembly is an OEM replacement part for LG washing machines. It is a crucial component that filters out lint, debris, and other particles from the wash water, preventing them from recirculating and damaging the pump or other internal components.

Symptoms of a need to replace the pump filter assembly:

• Clogging or blockages, leading to poor drainage or water not draining completely
• Excessive buildup of lint, hair, or other debris in the filter screen
• Leaks or water seeping from the filter housing or surrounding area
•  Unusual noises or vibrations during the drain or spin cycles, indicating a potential blockage

Causes of a faulty pump filter assembly can include excessive lint accumulation, damage to the filter screen or housing due to impact or mishandling, and general wear and tear over time.

This OEM LG part is also compatible with Sears/Kenmore washing machines.

The Damper is an OEM replacement part for LG washing machines. It plays an important role in regulating airflow through the machine's drying system. The damper uses adjustable louvers to direct warm air emitted during the drying cycle.

Causes of a faulty washer damper include broken internal mechanisms preventing louver movement, and restricting optimal air dispersion. Dust or mineral buildup can also impact function over time.

Symptoms of a problematic damper are

• incomplete or lengthy drying cycles.
• Clothing may still feel damp even after an extended run
• Excessive lint accumulation could also point to improper air management

This OEM LG part is also compatible with Sears/Kenmore.

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.

The Common Bolt is an OEM part for LG washing machines. It is a necessary mounting hardware component used to securely fasten and assemble various internal parts and components. Common bolts play a crucial role in ensuring the washer maintains solid construction and can withstand the shaking and vibrations of each wash cycle.

Causes of a bad common bolt can include stripped threads, rust, or damage over time due to repeated use or exposure to detergents and chemicals.

Symptoms of a bad common bolt include:

• Loose or detached internal parts
• Excessive noise or vibration
• Leaks around seal areas

This OEM LG part is also compatible with some Kenmore models.

The stator assembly is the stationary coil of your washer's direct-drive motor. It generates the magnetic field that spins and agitates the basket, helping restore proper movement when the original winding is worn or failed. What it does:

• Produces the electromagnetic field that drives the rotor and basket
• Common fix for no-spin, no-agitate, or weak/intermittent motor performance
• Helps restore smooth, consistent basket speed and torque

• One stator assembly

• Disconnect power and ensure stable access to the appliance before starting
• Access the motor from the bottom or rear; remove the rotor cap/center bolt and rotor before the stator
• Handle the rotor's strong magnets with care; support the tub and keep fingers clear
• Reconnect wiring harnesses fully seated and route as original; tighten mounting bolts evenly

This hose connector attaches the appliance's water hose to the inlet, restoring a secure, leak-free water connection. Use it to replace a cracked, brittle, or leaking connector and get reliable water flow back to the appliance. What it does:

• Connects the supply hose to the appliance water inlet to allow proper water flow
• Replaces damaged or worn connectors that can cause visible leaks
• Addresses symptoms like leaks at the hose connection, intermittent filling, or reduced water flow
• Provides a direct, OEM-style replacement when the original connector fails

• Turn off the water supply and disconnect power before starting
• Inspect and replace any worn O-rings or seals; use only parts specified for your model
• Hand-start threads to avoid cross-threading, then tighten securely; test for leaks after installation

This hose connector attaches a refrigerator water line securely to the appliance to maintain a sealed water supply for the dispenser and ice maker. Replaces a cracked or worn connector to stop leaks and restore proper water flow. What it does:

• Joins the refrigerator water line to the inlet fitting, creating a watertight connection
• Prevents leaks and dripping at the hose junction
• Restores steady water flow to the dispenser and ice maker when a damaged connector is replaced
• Helps eliminate moisture or puddling under or behind the appliance caused by a failed connector

• Turn off the water supply and unplug the appliance before replacing the connector
• Drain any residual water from the line to reduce spills during removal
• Use appropriate tools to avoid over-tightening; confirm all fittings are snug and leak-free after installation

This hinge spring applies the correct tension to the hinge mechanism so your appliance door opens smoothly and returns to the closed position. Replacing a fatigued or broken spring restores proper door action and alignment. What it does

• Provides spring tension to the hinge linkage for smooth, controlled door movement
• Helps the door close fully and stay closed
• Maintains door alignment at the hinge
• Common symptoms: door won't stay closed, drops or swings freely, uneven/squeaky hinge movement, or a visibly damaged spring

• 1 hinge spring

• Disconnect power before servicing; if your model involves water or gas connections, shut those off as applicable
• Springs are under tension—wear eye protection/gloves and support the door to relieve tension before removal
• Note the original routing and hook positions; install the new spring in the same orientation
• If your model uses two springs, consider replacing both to maintain even tension and door feel

The Suspension Spring Holder is an OEM part for LG washing machines. This holder supports the suspension springs that help stabilize the washer drum during operation, reducing vibration and movement. It plays a critical role in ensuring smooth and quiet operation of the washing machine.

Over time, the suspension spring holder can become worn or damaged due to regular use, heavy loads, or accidental impacts. Causes of a bad suspension spring holder include wear and tear, physical damage, or corrosion from moisture exposure.

Symptoms of a bad suspension spring holder include:

• Excessive vibration or shaking during wash cycles
• Unusual noises, such as banging or clunking
• The washer drum appearing misaligned or sagging
• The washing machine moving or walking during operation

This OEM LG part is also compatible with Sears/Kenmore.

A replacement hose clamp that secures a flexible hose to its fitting to help prevent leaks and disconnections. Restores a tight, reliable seal so hoses stay seated during normal use. What it does:

• Holds a rubber or plastic hose firmly to a pump, valve or connection to prevent leaks.
• Helps stop hose pull-off that can cause water leaks or appliance interruptions.
• Commonly replaced when clamps are corroded, bent, cracked or missing.
• Works as a low-cost repair to restore a secure hose connection without replacing the hose assembly.

• Disconnect power to the appliance and shut off the water supply before servicing.
• Use the correct tool (slip-joint pliers for spring-style clamps or a screwdriver for screw-type clamps) and avoid pinching the hose.
• Inspect the hose and fitting for damage; replace the hose if it's cracked or excessively worn.
• After installing, restore power/water and run a short test cycle or check for leaks.

This hose clamp secures a rubber hose connection to prevent leaks where the hose meets its fitting. A tight, uniform seal helps maintain proper water flow and keeps the appliance operating reliably.

• Provides a tight, 360-degree seal around the hose barb/fitting
• Helps correct issues like water leaks at the hose connection point
• Maintains correct hose attachment during operation and vibration
• Step-less ear design distributes clamping force evenly

• Unplug power and shut off water supply before servicing
• Note clamp orientation and hose routing before removal
• Use appropriate ear-clamp pincers or pliers to compress the clamp evenly
• Check the hose and fitting for wear; replace if cracked or deformed

This hose clamp secures a washer hose to its fitting to maintain a tight, leak-resistant connection. Replace a weakened or damaged clamp to stop seepage at hose joints and keep the washer operating reliably.

• Holds the hose firmly on pump, tub, or drain fittings to help prevent leaks
• Maintains clamping pressure during operation and vibration
• Replace if rusted, bent, cracked, or no longer holding tension
• Typical symptoms: water dripping at hose connections or a hose that slips off

• Disconnect power and shut off water; drain any remaining water from the unit
• Release and slide back the old clamp, then remove the hose
• Fully seat the hose on the fitting and position the clamp just behind the hose bead/ridge
• Secure the clamp and run a brief test to check for leaks

The Nozzle Connector is an OEM part for LG washers. This connector piece attaches to the water supply lines and direct tub fill nozzle, directing water into the washer tub during fill cycles. It allows water to be distributed evenly around the tub perimeter during fills to optimize cleaning performance.

Causes of a bad connector can include cracks, leaks, or blockages from mineral buildup that disrupt water flow.

Symptoms of a bad connector include:

• Uneven or inadequate water levels in the tub during fills
• Slow or inefficient fills requiring multiple attempt
• Water leaks from the connector area
• Mineral buildup visibly clogging the connector

This OEM LG part is also compatible with some Kenmore models.

This washer clutch assembly engages the drive system to shift between wash and spin modes. Replacing a worn clutch restores smooth agitation and full-speed spin performance, reducing noise and leaving clothes properly wrung out at cycle end.

• Engages and disengages the drive to transition between wash/agitate and spin
• Transfers motor torque to the basket during wash and spin
• Worn clutch can cause weak or no spin
• May result in no agitation or intermittent shifting
• Can cause grinding/scraping noises and leave clothes wet after the final spin

• Unplug the appliance and shut off water before starting
• Access from the bottom; support the washer securely to prevent tipping
• Remove obstructing drive components to reach the clutch; note hardware/wire routing for reassembly
• After installation, rotate the basket by hand and run a quick test cycle to confirm proper operation

A molded water guide that routes dispenser water inside the refrigerator to the dispenser/ice area, helping direct flow and reduce splashing. Fits the factory mounting points for a clean, secure path for water. What it does

• Channels water from the inlet tubing toward the dispenser/ice assembly to prevent misdirected flow.
• Helps keep water from pooling or dripping inside the cabinet or on internal components.
• Common replacement when you see water on shelves, puddling near the dispenser, or reduced or misdirected dispenser flow.
• Preserves proper alignment of the dispenser plumbing to prevent kinks or strain on tubing.

• One water guide (single molded channel) as shown.

• Turn off the refrigerator and shut off the water supply before starting; disconnect power for safety.
• Remove interior panels or shelves as needed to access mounting points; keep fasteners for reassembly.
• Inspect adjoining tubing and seals for damage and replace any worn components to ensure a leak-free fit.
• After installation, restore power and water, then check carefully for leaks during an initial test dispense.

The Air Chamber is an OEM part for LG washing machines. This part connects to the pressure switch and ensures the washer machine fills with the correct amount of water for the selected cycle.

Causes of a bad  Air Chamber can include clogging due to detergent residue or debris, cracks or perforations that lead to air leaks, and aging of the material, which might compromise its integrity and function.

Symptoms of a faulty Air Chamber include:

• Inaccurate water level readings leading to overfilling or insufficient water during cycles
• Unusual noises during the fill cycle, indicating air escaping
• The washing machine failing to start the wash cycle due to improper water level detection
• Error codes displayed on the machine that relate to water level issues

This OEM LG part is also compatible with some Kenmore models.

This inlet hose delivers water from your home's supply to the appliance, restoring proper fill and water flow. It replaces a damaged, cracked, or leaking inlet line to help stop leaks and restore normal filling. What it does:

• Guides incoming water from the household supply to the appliance's fill system
• Replaces hoses that are cracked, split, or leaking at connections
• Helps resolve slow or no-fill symptoms caused by a damaged supply line
• Restores a secure connection at the appliance inlet to prevent water damage

• Turn off the water supply and unplug the appliance before starting
• Inspect fittings and seals; replace washers if worn to ensure a tight seal
• Hand-start threaded fittings, then snug with a wrench—avoid over-tightening
• Check for leaks after reconnecting water and restoring power

The Clamp is an OEM part for LG washing machines. It is used to secure the hose connections within the washer, ensuring that water flows correctly without leaks.

Over time, the clamp can become worn or damaged due to repeated exposure to water, vibration, or general wear and tear. If the clamp fails, it can lead to water leaks or hoses becoming detached.

Symptoms of a bad clamp include:

• Water leaking from hose connections
• Hoses coming loose or detaching during operation
• Visible rust or damage on the clamp
• Poor water flow or pressure issues

This OEM LG part is also compatible with Sears/Kenmore models.

The Hinge Pin is an OEM part for LG washing machines. It serves as a pivot point for the washer door, allowing it to open and close smoothly. This component is crucial for maintaining the proper alignment and function of the washer door, ensuring a secure and reliable seal during operation.

Common causes of a bad hinge pin include frequent use leading to wear and tear, physical damage from accidental impacts, or rust and corrosion over time. A compromised hinge pin can result in misalignment of the door, affecting the washing machine's ability to close properly and maintain an effective seal.

Symptoms of a bad hinge pin include:

• Difficulty opening or closing the washer door
• Door not staying securely closed during operation
• Squeaking or grinding noises when the door is moved
• Visible wear or damage to the hinge pin

This OEM LG part is also compatible with Sears/Kenmore models.

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.
