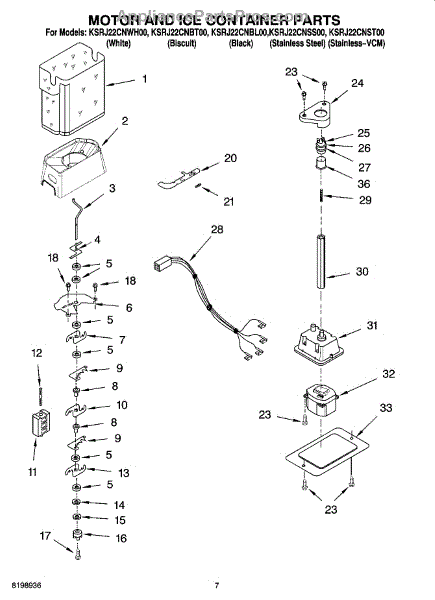

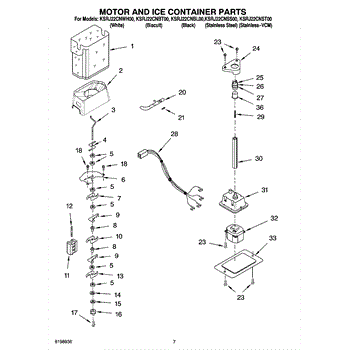

Parts for Kitchenaid KSRJ22CNBT00: 05 - Motor And Ice Container Parts

The Whirlpool EveryDrop Refrigerator Water Filter 5 is an OEM replacement filter for Whirlpool refrigerators. This filter is used in Whirlpool bottom freezer and side-by-side refrigerators which accept Filter 5.

• Single Port Filter
• Simple turn installation requires no special tools
• For best performance, replace every six months
• Micron Rating: 0.5
• Filter Media: Coconut Carbon Block
• Flow Rate: 0.5 GPM
• Capacity: 300 gallons
• Temp Range: 33 - 100 °F
• Pressure Range: 30 - 120 psi
• Approximate dimensions: 2.30 x 3.00 x 11.60 Inches
• Meets NSF Standard: 42
• Approved for WQA Gold Seal
• Reduces 16 contaminants, including lead, mercury, asbestos, etc

This flat spacer installs on the refrigerator or freezer door hinge. It sets the correct clearance and height between the hinge and door so the door swings smoothly and seals properly. Replace worn or missing spacers to restore alignment. What it does:

• Maintains proper spacing between the hinge and door
• Helps keep the door level and aligned for a consistent seal
• Reduces rubbing or binding as the door opens and closes
• Typical symptoms when worn or missing: door sits low/uneven, rubs the cabinet, won't close reliably, or shows gaps/condensation at the gasket

• 1 flat spacer

• Disconnect power and remove items from the door to reduce weight
• Support the door before removing hinge fasteners; lift the door slightly as needed
• Install the new spacer in the same position/order as the original spacers and washers
• Reinstall and tighten the hinge; readjust if necessary

This replacement blade is the rotating element used within the appliance assembly to deliver the intended action. Installing a new blade restores smooth, efficient operation when the original is cracked, bent, worn, or missing.

• Provides the mechanical action required by the assembly (rotation/agitation)
• Helps maintain consistent performance and smooth operation
• Common failure signs: rattling or scraping noises, vibration/wobble
• Other symptoms: reduced performance in that section of the appliance, visible chips, cracks, or deformation

• Disconnect power before servicing; turn off water supply if applicable
• Wear cut-resistant gloves; edges may be sharp
• Note the original blade's orientation and spacing before removal; install the new blade the same way
• Hand-rotate after installation to ensure free movement and clearance before restoring power

This step spacer positions and supports the appliance step or kickplate to keep panels aligned and reduce rattles. Replacing a worn or missing spacer restores a secure, even fit and helps stop vibration and misalignment. What it does:

• Maintains correct gap and alignment between the step/kickplate and cabinet.
• Prevents rubbing, rattling, or an uneven step caused by a missing or damaged spacer.
• Provides a stable mounting surface so adjacent trim and panels sit flush.
• Helpful when replacing worn trim or after panel repairs to restore factory fit.

• Disconnect power (unplug or shut off breaker) before accessing panels.
• Remove the kickplate or access panel to reach the spacer; note original orientation before removal.
• Seat the spacer fully and reinstall panels and fasteners; avoid over-tightening.

A roll pin (spring pin) that secures rotating or sliding components by fitting into matched holes to hold shafts, levers, or brackets in place. Replaces a worn or damaged pin to restore proper mechanical engagement. What it does:

• Holds shafts, levers or hinges in position by expanding into drilled holes for a snug, vibration-resistant fit
• Keeps pulleys, rollers, or linkages from moving out of alignment or sliding off their shafts
• Common symptom: loose or wobbling pulley, lever, or shaft where the retaining pin is worn or broken
• Common symptom: noisy or intermittent operation caused by a pin that no longer secures moving parts

• Inspect mating holes and shaft for wear; replace pin with correct size to ensure secure fit
• Use appropriate pliers or a pin punch and hammer to drive the pin in or out; support the assembly to avoid damage
• Wear eye protection when installing or removing roll pins—pins can snap or fly out under force
• If pin is difficult to remove or install, consider using penetrating oil or heating only per OEM guidance

This plain washer is a small hardware spacer used in appliance assemblies. It spreads the load under a fastener to secure parts, maintain alignment, and reduce wear—helping keep brackets, hinges, and mounts tight and operating correctly. What it does

• Distributes clamping force under screws/bolts to protect surfaces
• Maintains spacing for proper alignment of assembled components
• Helps reduce metal-to-metal wear and friction at mounting points
• Replace if missing, bent, worn, or if you notice looseness or rattling around a fastened area

• 1 plain washer

• Disconnect power; shut off water or gas supplies before service
• Note the original order/orientation of hardware; take a photo for reference
• Replace one-for-one and tighten to a snug fit—do not overtighten
• Check alignment and operation before restoring power and utilities

This top coupling links two drive components in select washers to transfer rotation smoothly. Replacing a worn or stripped coupling restores consistent agitation/spin and can reduce slipping, rattling, or grinding noises from the drive area. What it does:

• Connects mating shafts/components so power is transmitted through the drive system
• Helps maintain alignment and cushions minor shock to protect other parts
• Failure symptoms may include no or weak agitation/spin, intermittent drive, or clicking/grinding sounds
• Visual clues can include cracks, rounded/stripped splines, or excessive play

• One top coupling

• Disconnect power; turn off water supply if moving the appliance
• Access location varies by model; cabinet/top or front panel removal may be required
• Note orientation of flats/splines and seat the coupling fully—do not hammer into place
• Inspect the mating hub/shaft; replace worn companion parts to prevent rapid re-wear

The Ice Bin Coupling is an OEM part for Whirlpool refrigerators. This component connects the ice bin to the motor, enabling the transfer of power to dispense ice. The coupling ensures that the ice bin rotates properly, allowing for efficient dispensing of ice cubes through the door.

Causes of a bad ice bin coupling can include wear and tear from regular use, damage due to jamming or overloading the ice bin, and physical impact that might cause cracking or breakage. Maintaining the coupling in good condition is crucial for the smooth operation of the ice dispensing mechanism.

Symptoms of a bad ice bin coupling include:

• The ice dispenser not working or dispensing ice irregularly
• Unusual noises coming from the ice bin area
• The ice bin not rotating as it should
• Difficulty in dispensing ice through the door

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Screw is an OEM part for Whirlpool appliances, designed to provide secure fastening in a variety of locations within the appliance. This versatile component is crucial for assembly and maintenance tasks, ensuring that parts are held together tightly and function as intended. Whether it's securing panels, attaching components, or facilitating repairs, this screw is engineered to meet the specifications of Whirlpool appliances, offering durability and reliability.

Causes of screw issues can include normal wear and tear, over-tightening, which may strip the threads, or corrosion that weakens the screw's hold.

Symptoms of a bad or missing Screw include:

• Loose components or panels within the appliance
• Unusual noises due to parts not being securely fastened
• Difficulty in assembling or disassembling parts for repairs or maintenance

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This replacement cabinet screw secures panels, brackets, and ducts in Whirlpool-built appliances so components stay aligned and secure. Replacing missing or stripped hardware helps reduce vibration, rattling, and gaps that can affect performance.

• Fastens panels, brackets, and internal components in the appliance cabinet
• Helps maintain proper alignment and reduce vibration or rattling noises
• Restores a tight fit where original hardware is missing, damaged, or stripped
• Typical symptoms: loose paneling, buzzing/rattling sounds, or parts that won't stay fastened

• Disconnect power; for gas models, also shut off the gas supply
• Replace one fastener at a time to preserve alignment and match to the original hardware
• Use the correct driver; start threads by hand to avoid cross-threading
• Do not overtighten into sheet metal

The Whirlpool latch spring is an OEM replacement part responsible for securing the ice container or bin in place on a refrigerator. Its main function is to provide tension and support to the ice container latch, allowing it to engage and disengage properly. When the ice container is inserted into the refrigerator's ice compartment, the latch spring ensures that it securely locks in place, preventing accidental spillage of ice.

Causes of a bad latch spring can include metal fatigue from repeated use, rust or corrosion from exposure to moisture, or physical damage from accidental impacts.

Symptoms of a bad latch spring include:

• The ice container not staying in place and sliding out of position
• Difficulty in properly attaching or detaching the ice container from the refrigerator
• The ice container feeling loose or wobbly when inside the ice compartment
• The ice container not aligning correctly with the ice dispenser or auger

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This replacement screw secures panels, brackets, and internal components within your appliance. Replacing a missing or damaged fastener restores a tight fit, reduces vibration and noise, and helps keep parts properly aligned during operation.

• Fastens panels, trim, brackets, or internal components to the chassis
• Maintains proper alignment and stability during normal use
• Replaces missing, rusted, or stripped hardware
• Common symptoms: loose or rattling panels, vibration, difficulty fastening, or a visibly missing screw

• Disconnect power; for gas appliances, also shut off the gas supply
• Match length and thread to the original; replace one-for-one in the same location
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• If the receiving hole is stripped, repair threads or replace the clip/nut before installing

The Ice Maker Coupler is an OEM part for Whirlpool refrigerators. It connects the ice maker drive motor to the auger shaft and gear assembly inside the ice storage bin. This allows rotational force to be transferred between components, ensuring efficient ice harvesting and delivery.

Symptoms of a bad ice maker coupler include:

• Slow or inconsistent dispensing of ice
• Improper filling of the storage bin
• Ice that is jammed or dispensed in clumps

Causes can involve normal wear and tear over time that leads to slippage between connected parts. Cracks or fractures in the coupler housing also inhibit smooth transmission of motor power throughout ice vending operations.

This genuine Whirlpool OEM replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Drive Shaft Seal is an OEM part for Whirlpool washing machines. It plays a role in preventing water from leaking out of the tub and onto the drive system. This seal ensures that the connection between the drive shaft and the washing machine tub remains watertight, protecting the mechanical components from water damage and corrosion.

Causes of a bad drive shaft seal include aging and deterioration of the material, excessive load sizes that strain the washer, and foreign objects caught between the seal and the shaft, which can lead to tears or breaks.

Symptoms of a bad Drive Shaft Seal include:

• Water leakage from the underside of the washing machine
• Unusual noises during the spin cycle
• A visible tear or damage to the seal itself
• Increased vibration and movement of the machine during operation

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Coupling is an OEM replacement part for Whirlpool French door bottom-mount refrigerators equipped with an interior automatic icemaker. As an internal part, this coupling connects the auger motor to the ice mold assembly, allowing the motor to transmit rotational force during the ice harvest cycle.

Causes of a damaged coupling can include regular wear from years of exposure to changing temperatures inside the refrigerator. Mineral deposits accumulating on surfaces over many harvest seasons have the potential to deteriorate plastic material. Physical obstructions lodged in the icemaker mechanism could potentially bend or crack the coupling.

Symptoms of a failing coupling involve:

• Inability of the auger motor to engage fully and eject frozen cubes
• Grinding or knocking sounds emitting from the icemaker
• Restricted or incomplete ice harvest that leaves cubes in molds

This OEM replacement is compatible with some Kenmore Elite French door models.

The Spring is an OEM part for Whirlpool refrigerators. It is a small but important internal part that applies pressure to dispense cubed or crushed ice from the refrigerator door. The spring is located within the ice dispenser mechanism and works with a lever to push ice out through the dispenser chute upon activation.

Causes of a bad spring can include wear and tear over time, putting undue pressure on the dispenser by jamming items into the chute, or damage from excessive force applied during dispensing.

Symptoms of a bad spring include:

• Ice cubes or crushed ice becoming jammed or failing to dispense properly
• The ice dispenser failing to push ice fully through the chute
• Excessive pressure needs to be applied to activate the dispenser
• Ice cubes are dispensed in irregular sizes or clumps rather than individual pieces

This OEM Whirlpool part is compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Dispenser Motor is an OEM part for Whirlpool refrigerators. It is a crucial component that powers and operates the water and ice dispensing system, allowing users to conveniently access chilled water, cubed ice, or crushed ice from the refrigerator door.

Causes of a bad dispenser motor may include electrical failures, mechanical wear and tear, or physical damage from impact or moisture.

Symptoms of a faulty Dispenser Motor include:

• No water or ice being dispensed from the refrigerator door
• Intermittent or inconsistent water or ice dispensing
• Leaks or drips from the dispenser area
• Unusual noises or grinding sounds when attempting to dispense

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore refrigerator models.

A replacement sleeve coupling that helps connect components in the drive assembly so the appliance transfers rotational force smoothly. Use this part to restore proper tumble/spin and reduce noise or slipping from a worn sleeve. What it does

• Couples two drive components to transmit motor rotation to the drum/transmission.
• Replaces worn or scored sleeves that can cause slipping, rough rotation, or reduced spin/tumble.
• Can help reduce noise and vibration caused by excess play or metal-on-metal contact.
• Restores proper alignment between mating shafts when the original sleeve is damaged.

• Disconnect power (and water if applicable) before starting any repair.
• Basic disassembly of the cabinet, access panels, or drum may be required.
• Inspect mating shafts, bearings, and seals for wear; replace any damaged components to prevent repeat failure.
