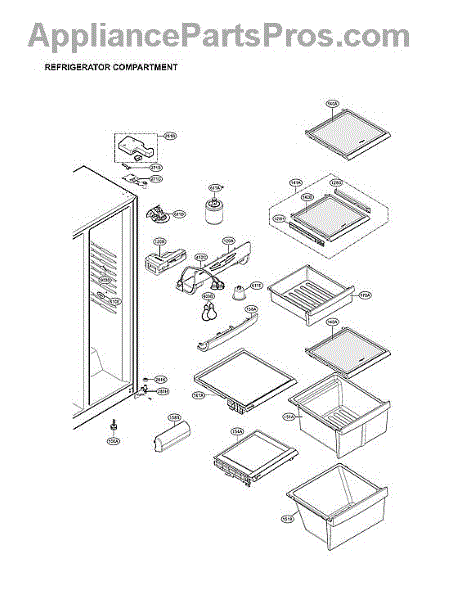

Parts for Lg LSC27914ST/02: Refrigerator Compartment Parts

This is a genuine replacement screw used to secure appliance panels and components. It restores proper fastening so panels and assemblies stay aligned and operate safely. What it does:

• Fastens panels, brackets, and small assemblies to maintain structural integrity
• Replaces missing or stripped screws that cause rattling or loose parts
• Helps stop vibration-related noise when used in its original mounting locations
• Matches the OEM fit to ensure proper alignment and clearance

• Use the correct screwdriver or bit to avoid stripping the head
• Tighten until snug; do not overtighten to prevent thread or component damage
• Disconnect power to the appliance before working on electrical components
• Replace all matching fasteners for even fit

This replacement screw secures specified panels or components inside your appliance. Refreshing worn or missing hardware helps restore a tight fit, reduce rattling, and keep assemblies properly aligned for reliable performance.

• Provides secure fastening for brackets, panels, or internal assemblies
• Replaces stripped, rusted, or lost hardware
• Helps reduce vibration and rattling noises
• Symptoms include loose panels, shifting components, or a screw that won't tighten

• Disconnect power and allow any hot surfaces to cool before servicing
• Wear cut-resistant gloves and eye protection
• Match length and thread to the original; replace like-for-like
• Start threads by hand to avoid cross-threading; do not overtighten

This shelf holder is a molded support clip that secures and positions a removable shelf inside the appliance, restoring proper shelf alignment and preventing slipping or tilt for safer storage. What it does:

• Supports and locks a shelf into the cabinet wall to keep it level and stable
• Prevents shelves from sliding forward or falling when loaded
• Stops rattling or uneven shelf movement caused by a worn or broken clip
• Fits where the shelf edge rests to maintain correct shelf spacing

• One shelf holder

• Disconnect power and empty the area before starting work
• Typically installs by snapping into the shelf track or sliding onto a mounting peg; small hand tools may be required
• Inspect the mating shelf edge and track for damage and clean debris before installing
• Replace any matching clips on the opposite side if the shelf still sits unevenly

The Lower Cover Assembly is an OEM part for LG refrigerators. This cover is located at the bottom of the refrigerator, protecting internal components and providing a finished look to the appliance. It plays a crucial role in maintaining the refrigerator’s efficiency by shielding important parts from dust, debris, and potential damage.

Causes of a bad lower cover assembly include regular wear and tear, accidental impact, or exposure to moisture, which can lead to degradation over time.

Symptoms of a bad lower cover assembly include:

• Visible cracks or breaks in the cover
• The cover not fitting securely or coming loose
• Accumulation of dust or debris around the internal components
• Aesthetically displeasing appearance of the refrigerator’s bottom area

This OEM LG part is also compatible with Sears/Kenmore.

The Drain Tube Assembly is an OEM part for LG refrigerators. This drain tube assembly is responsible for directing condensation and melt water that accumulates in the refrigerator away to the evaporator pan.

Causes can include cracks developing from limescale or mineral accumulation, flexing fatigue from repeatedly catching drips, or damage from improper cleaning methods.

Symptoms of a bad drain tube assembly include:

• Puddles or leaks developing underneath the refrigerator
• Poor air flow from vents and higher temperatures
• Ice or moisture buildup in refrigerator walls and seals
• Water stains or corrosion appearing inside the unit

This OEM LG part is also compatible with some Kenmore models.

This leveling leg assembly stabilizes and levels your refrigerator so it sits solidly on the floor and the doors align correctly. Replacing a worn or stripped leg helps reduce rocking and vibration and restores smooth leveling adjustment.

• Provides height adjustment to level the cabinet on uneven floors
• Supports the unit to prevent rocking or wobbling
• Helps doors close and seal properly when the cabinet is level
• Symptoms may include persistent wobble, vibration/rattling, or a stripped/bent foot or screw

• Unplug the refrigerator and use a helper to prevent tipping injuries.
• Protect flooring; remove the kickplate/grille for access if present.
• Thread out the worn leg; hand-thread the new assembly and adjust height—do not over-extend.
• Level side-to-side and front-to-back per your owner's manual, then reattach any panels.

This guide is the replacement drawer slide guide that supports and aligns a refrigerator drawer for smooth, stable opening and closing. Restore proper drawer travel and help prevent binding, sagging, or uneven movement. What it does:

• Supports the drawer on its track and keeps it aligned.
• Guides the drawer during opening and closing for smooth travel.
• Prevents the drawer from binding, sagging, or coming off the track.
• Reduces noise and wobble caused by worn or broken guides.

• Always unplug the appliance or turn off power at the breaker before starting repairs.
• Remove the drawer to access the guide.
• Inspect the mating track and adjacent guides; replace any damaged parts to ensure proper fit.
• Tighten fasteners securely but avoid over-tightening to prevent damage.

The Lever Dispenser is an OEM part for LG refrigerators. It is the control mechanism responsible for dispensing crushed ice and water through the refrigerator door without opening it. The lever and dispensing components are designed to withstand frequent use while retaining smooth, reliable operation.

Causes of a bad lever dispenser can include worn parts inhibiting proper dispensing movement, cracks or damage reducing structural integrity, or mineral buildup affecting functionality over time.

Symptoms of a bad lever dispenser include:

• Difficulty or inability to dispense ice and water
• Leaks or drips around the dispenser area
• Loose, rattling, or unresponsive lever action
• The dispenser not activating or emptying the reservoir

This OEM LG part is also compatible with dispenser models featured on Kenmore side-by-side refrigerators.

This dispenser lever holder is the mounting bracket behind the refrigerator's dispenser paddle. It supports and aligns the lever and switch so water or ice dispenses reliably when the paddle is pressed.

• Holds and guides the dispenser lever and actuator switch inside the dispenser housing
• Provides a secure pivot point for smooth paddle movement
• Helps ensure consistent activation of water and ice dispensing
• Damage can cause a loose or stuck paddle, intermittent dispensing, or no dispense

• Disconnect power and shut off the water supply before servicing
• Remove the dispenser panel/escutcheon to access the lever assembly; note part orientation
• Transfer the lever, switch, and return spring to the new holder and secure with the original fasteners
• Restore power/water and test dispensing before reinstalling trim

The Ice Door Lever Spring is an OEM component compatible with LG refrigerators. It is part of the mechanism that opens and closes the ice door on LG French door refrigerators. Over time, springs can lose resiliency or become misaligned.

Causes may be extensive usage over years or damage like kinking that compromises spring function.

Symptoms of a bad ice door lever spring include:

• The ice door not latching fully when closed
• Difficulty opening or poor balance while moving the door
• The lever rubbing or catching instead of moving smoothly

This OEM LG part is also compatible with Sears/Kenmore side-by-side refrigerators.

The Guide Rail is an OEM replacement part for LG refrigerator shelves. Running horizontally inside the refrigerator cavity, these durable rails smoothly guide shelf movement during height adjustment. This rail is for the left side.

Causes of faulty guide rails can include dents or damage occurring from heavy loads, as well as plastic degradation from prolonged use.

Symptoms include:

• Shelves difficult to pull out fully or reinsert
• Scratching or binding noises heard during adjustments
• Shelves unable to securely lock into place

Note: Per factory, Roller 4580JA3034A and screw 1SBZJA3004K no longer come with guide rail.

This OEM LG replacement is also compatible with select Kenmore refrigerators.

The Guide Rail is an OEM part for LG refrigerators. It is designed to support and guide the movement of refrigerator drawers, ensuring they slide smoothly in and out. This component helps in maintaining the proper alignment and functionality of the drawers, making it easier to access stored items.

Causes of a bad guide rail include wear and tear over time, excessive force or weight applied to the drawers, or accidental impact that causes cracks or bends in the rail. Ensuring the guide rail is in good condition is crucial for the smooth operation of refrigerator drawers.

Symptoms of a bad guide rail include:

• Difficulty in opening or closing drawers
• Drawers not staying aligned or securely in place
• Noticeable wobbling or uneven movement of the drawers
• Unusual noises when moving the drawers

This OEM LG part is also compatible with Sears/Kenmore.

Note: Per factory, Roller 4580JA3034A and screw 1SBZJA3004K no longer come with guide rail.

A replacement tempered glass shelf that provides a sturdy, easy-to-clean surface for organizing food and containers in your refrigerator. Restores usable shelf space and helps keep items level. What it does:

• Replaces a cracked, chipped or missing refrigerator shelf
• Provides a stable surface for storing food, bowls and containers
• Resists spills and is simple to wipe clean
• Helps maintain proper organization and airflow on the shelf level

• Remove all food and items from the shelf area before installing
• Slide shelf into the support rails until it seats evenly on both sides
• Handle with care — tempered glass can break if dropped or struck
• If shelf supports or rails are damaged, replace or secure them before use

This Vegetable Tray Assembly is the removable crisper drawer insert that holds and organizes fresh produce in the refrigerator, helping contain spills and keep fruits and vegetables separated for easier access and cleaning. What it does:

• Replaces a damaged, cracked, or warped crisper tray to restore secure storage for produce
• Provides a flat, stable surface to support produce and smaller containers
• Helps contain minor leaks or spills, keeping the fridge floor cleaner
• Restores proper fit and sliding action of the crisper area when tray wear impedes operation

• Designed for simple drop-in replacement; remove crisper drawer to access tray
• Handle with care to avoid scratching or cracking the plastic during installation
• If the tray mounts to rails or clips, verify clips are intact before reinstalling
• Disconnect power or follow manufacturer safety guidance before working in the fridge

This tray assembly is the interior storage tray used in compatible refrigerators. It restores a secure, level surface for organizing food and containers when the original tray is cracked, damaged, or missing.

• Provides a stable surface to hold and organize items inside the compartment
• Fits onto the appliance's existing supports/rails for proper seating
• Replace when cracked, warped, or when support tabs are broken
• Common symptoms: broken or missing tray, won't stay in place, wobbles or tilts

• Disconnect power before servicing interior components
• Remove nearby items, then lift out the damaged tray
• Align the new tray with the guides/tabs and set fully into place—do not force
• Handle cold plastic carefully; allowing it to warm to room temperature can reduce the risk of cracking

This Tray Cover Assembly replaces a cracked, warped or missing tray cover to protect internal components and restore the appliance's original fit and finish. It provides a secure cover for the tray and helps contain spills and debris. What it does

• Covers and protects the underlying tray or compartment from spills and dirt
• Restores proper alignment and appearance to the tray area
• Helps prevent debris from falling into working components
• Commonly replaced when the cover is cracked, broken, or no longer seats properly

• Disconnect power to the appliance before starting any repair.
• Removal/installation may require basic hand tools; handle plastic parts carefully to avoid damage.
• Inspect surrounding components for damage while replacing the cover.

This lamp cover is the replacement plastic diffuser that protects the interior light and spreads illumination evenly inside the appliance. It restores a finished look and keeps the bulb shielded from spills and contact. What it does:

• Covers and protects the interior light bulb from moisture, food, and accidental contact
• Diffuses and softens the light for more even illumination
• Prevents loose debris from touching the bulb and reduces glare
• Useful when the original cover is cracked, discolored, or missing

• One lamp cover

• Disconnect power or unplug the appliance before servicing the light area
• Remove any screws or clips holding the old cover; handle plastic parts gently to avoid cracking
• Avoid touching the bulb with bare hands when replacing; allow bulb to cool first

This refrigerator door gasket forms an airtight seal between the door and cabinet to keep cold air in and humid air out, helping restore stable temperatures and efficiency when the original seal is worn, torn, or warped.

• Seals the door perimeter to prevent air leaks and temperature swings
• Helps reduce frost and condensation around the door opening
• Can resolve doors not closing fully or popping back open
• Replace if the gasket is cracked, deformed, or won't stay seated

• Disconnect power and clear items from the door before starting
• Warm the new gasket (hot water or low heat) to relax folds and improve fit
• Pull the old gasket from the retaining channel; press the new one in firmly, starting at the corners
• Close the door and check for an even seal all around; allow the gasket to conform over the next 24 hours

The Handle Mounting Stud is an OEM replacement part for LG refrigerator doors. It provides a sturdy mounting point for the door handle assembly. Reliable handle connection and support is crucial for dependable door function and access.

Causes of a faulty stud can include damage from excess weight or impact over time rendering the stud loose or unstable.

Symptoms of a bad stud include:

• Loose or sagging door handle
• Difficulty opening and closing the refrigerator door
• Potential for the handle to detach completely
• Safety concerns if the handle connection fails

This OEM LG replacement stud is also compatible with Sears/Kenmore models.

Replace a worn door gasket to restore a tight seal on your refrigerator door. This perimeter seal keeps cold air in and humid air out to stabilize temperatures, reduce frost and condensation, and support efficient, consistent cooling.

• Creates an airtight seal between the door and cabinet
• Helps maintain proper internal temperature and humidity
• Reduces frost, sweating, and energy loss from air leaks
• Common symptoms: torn or hardened gasket, visible gaps, door not sealing, moisture or frost near the door

• Disconnect power before servicing
• Warm the new gasket in hot water or with a hair dryer on low to relax and straighten it
• Remove the old gasket and clean the mounting channel and mating surfaces
• Install starting at the corners and press fully into the channel; verify even contact and proper door closure

This dairy bucket is the removable door bin that holds butter, cheese and small dairy items for easy access and organization. It restores a broken or missing door storage bin so food stays contained and accessible. What it does:

• Provides a dedicated, shallow storage area for butter, cheese and other small items on the refrigerator door
• Replaces cracked, broken or missing door bins that no longer stay secured or leak onto lower shelves
• Keeps dairy items contained to prevent spills and improve door organization
• Fits into the door bin track and snaps into place to hold lightweight items

• One dairy bucket

• Removes and installs by lifting or unhooking the old bin from the door rails and snapping the replacement into the same position
• Use gentle pressure to seat the bin; do not force or wedge to avoid damaging the door rail
• Clean with mild soap and water before first use and after spills; avoid abrasive cleaners
• Handle carefully to avoid chipping or cracking the plastic

This dairy bucket is the removable door bin that holds butter, cheese and small dairy items for easy access and organization. It restores a broken or missing door storage bin so food stays contained and accessible. What it does:

• Provides a dedicated, shallow storage area for butter, cheese and other small items on the refrigerator door
• Replaces cracked, broken or missing door bins that no longer stay secured or leak onto lower shelves
• Keeps dairy items contained to prevent spills and improve door organization
• Fits into the door bin track and snaps into place to hold lightweight items

• One dairy bucket

• Removes and installs by lifting or unhooking the old bin from the door rails and snapping the replacement into the same position
• Use gentle pressure to seat the bin; do not force or wedge to avoid damaging the door rail
• Clean with mild soap and water before first use and after spills; avoid abrasive cleaners
• Handle carefully to avoid chipping or cracking the plastic

This refrigerator door basket holds items on the door, creating organized, easy-to-reach storage. A cracked or missing bin can lead to spills and wasted space; replacing it restores secure storage on the door.

• Provides a stable shelf on the refrigerator door for bottles, jars, and condiments
• Replace if cracked, broken, loose, or missing
• Helps prevent items from tipping or falling when the door opens/closes
• Restores proper door storage capacity and organization

• Unplug the refrigerator or switch off the circuit breaker before starting
• Remove the old bin by lifting it up and out of the door liner slots
• Align and press the new bin into the slots until fully seated
• Do not overload the bin; distribute weight evenly

The Door Basket is an OEM part for LG refrigerators. It is used to organize small items and provide additional storage directly on the refrigerator door.

Symptoms of a bad door basket include:

• Items no longer stay securely in place during opening and closing
• Sagging or misshapen basket that no longer organizes properly
• Detached basket that no longer mounts firmly on the door

Causes of a bad door basket can include warped or broken plastic, cracks or fractures in the plastic construction, or failure of the mounting brackets over time.

This OEM LG replacement is also compatible with select Sears/Kenmore models.

This door basket is the removable bin that mounts to the refrigerator door and holds condiments, bottles, and small items. Replacing a broken or missing bin restores usable storage space and keeps items organized and easy to access.

• Mounts to the inner door liner to securely hold food items and beverages
• Helps organize frequently used items and maximizes door storage capacity
• Replace if the bin is cracked, warped, or the mounting tabs are broken
• Common symptoms: bin falls off, won't stay seated, or is missing

• Empty the old bin and lift it up and out of the door liner slots to remove.
• Align the new basket's hooks/tabs with the slots and press down until fully seated.
• Verify the bin is level and locked in place before loading items.
• Handle plastic carefully; allow it to warm to room temperature to reduce risk of cracking.

The Door Basket is an OEM part for LG refrigerators. This basket attaches to the interior of the refrigerator door, providing additional storage space for items such as bottles, jars, and other small containers, making it easy to organize and access frequently used items.

Causes of a bad door basket can include regular wear and tear, cracks or breaks from heavy use or overloading, and accidental impact or mishandling.

Symptoms of a bad door basket include:

• Cracks or breaks in the plastic
• The basket not fitting securely in its designated location
• Difficulty holding items properly
• The basket sagging or detaching from the door

This OEM LG part is also compatible with Sears/Kenmore models.

The Door Stopper Assembly is an OEM component specifically designed for LG refrigerators. It secures the fridge door in fully closed and aligned positions.

The stopper assembly utilizes a pneumatic cylinder and integrated mounts to softly cushion door movement. This allows for smooth closing with an audible click to confirm proper sealing.

Causes of a bad stopper assembly can include cracked or leaking air cylinders after years of use. Loose or sheared mounting hardware may also cause improper alignment and restricted closure.

Symptoms of a bad door stopper assembly include:

• Gaps forming around the door seal when closed
• Doors difficult to latch fully or align correctly
• Premature cooling loss from unsealed openings

Replacing this LG part restores a snug, confirmed door shut. The OEM stopper components ensure dependable closing effort for efficient operation. This replacement is compatible with some Kenmore models as well.

The Refrigerator Door Handle is an OEM replacement part for LG refrigerators. The door handle provides an easy grip point for opening and closing the refrigerator door.

Symptoms of a bad door handle include:

• Looseness, wobbling, or detachment from the refrigerator door
• Cracking or splitting of the plastic material
• Discoloration or warping from sun exposure

Causes can be regular wear and tear over many opening and closing cycles. Repeated force exerted by grabbing the handle may cause stress fractures. Exposure to direct sunlight's UV rays can degrade plastic over time as well.

This OEM LG part is also compatible with Sears/Kenmore refrigerators.

The Refrigerator Door Handle is an OEM replacement part for LG refrigerators. The door handle provides an easy grip point for opening and closing the refrigerator door.

Symptoms of a bad door handle include:

• Looseness, wobbling, or detachment from the refrigerator door
• Cracking or splitting of the plastic material
• Discoloration or warping from sun exposure

Causes can be regular wear and tear over many opening and closing cycles. Repeated force exerted by grabbing the handle may cause stress fractures. Exposure to direct sunlight's UV rays can degrade plastic over time as well.

This OEM LG part is also compatible with Sears/Kenmore refrigerators.

This upper hinge assembly supports the refrigerator door at the top and acts as the pivot point for smooth opening and closing. Replacing a worn hinge restores proper alignment and helps the door seal and close consistently.

• Supports and pivots the door at the top hinge point
• Maintains door alignment with the cabinet and gasket
• Helps ensure complete closure and proper sealing
• A worn hinge may cause door sagging, rubbing, popping/creaking noises
• Misalignment may lead to air leaks, frost, or temperature fluctuations

• Disconnect power and, if applicable, shut off the water supply.
• Remove the hinge cover, support the door, and note shim/bushing positions.
• Remove hinge screws, lift the door off, transfer any spacers/bushings, and install the new hinge.
• Align the door and verify gasket contact all around before restoring power.

This hinge lever mounts on the refrigerator door hinge to guide door movement and closure, helping the door seal properly. Replacing a worn or broken lever restores smooth operation and consistent sealing.

• Guides hinge motion so the door opens and closes smoothly
• Helps maintain door alignment for a reliable gasket seal
• Replace if the lever is visibly cracked, worn, or deformed

• Disconnect power and support the door to prevent injury or damage
• Remove the hinge cover and fasteners; note the lever's orientation before removal
• Install the new lever in the same position and reassemble the hinge components
• Adjust hinge per model procedures if needed

This funnel assembly directs detergent and rinse water from the dispenser into the dishwasher tub, helping consistent dispensing and preventing spills. Replace a cracked, clogged, or damaged funnel to restore proper detergent flow. What it does

• Channels detergent/rinse solution from the dispenser to the wash tub for normal cleaning cycles.
• Prevents leaks and spills that can occur from a broken or distorted funnel.
• Helps avoid uneven or missed dispensing that can lead to poor wash performance.
• Fits into the dispenser housing and works with the dispenser release mechanism.

• One funnel assembly.

• Disconnect power to the appliance before inspecting or servicing the dispenser.
• Remove the inner door panel or dispenser cover as needed to access the funnel; keep track of fasteners.
• Inspect and replace any worn seals or clips when installing the new funnel.

This replacement nut is a simple fastener used to secure internal components and panels. It restores proper attachment where a loose or missing nut causes vibration, noise, or parts to shift. What it does:

• Secures components, brackets, or panels in place to maintain appliance stability
• Prevents parts from loosening during operation, reducing rattles and vibration
• A missing or damaged nut can allow movement that leads to noise or improper alignment
• Use as a direct hardware replacement when the original nut is lost or worn

• Disconnect power (and water, if applicable) before accessing internal parts
• Start threads by hand to avoid cross-threading; tighten with the appropriate wrench or socket
• Replace if threads are stripped or the nut is damaged
• Refer to the parts diagram for the correct mounting location

The Lower Hinge Assembly is an OEM part for LG refrigerators. It is responsible for supporting the refrigerator door and allowing it to open and close smoothly. The hinge assembly ensures the door stays aligned and securely in place, preventing cold air from escaping and maintaining the efficiency of the appliance.

You should replace the lower hinge assembly if it becomes faulty. Causes of a bad lower hinge assembly can include wear and tear over time, excessive force or weight on the door, or damage from accidental impacts.

Symptoms of a bad lower hinge assembly include:

• Difficulty in opening or closing the door
• Door not sealing properly
• Squeaking or grinding noises when the door moves
• Door misalignment

This OEM LG part is also compatible with Sears/Kenmore models.

This PTC thermistor assembly feeds temperature feedback to the control so the appliance can monitor conditions and run sensor-based cycles correctly. Replacing a failed sensor restores reliable automatic operation and prevents errors that lead to inconsistent results.

• Detects temperature changes and sends a resistance signal to the main control for sensor/auto functions
• Helps regulate time and power during sensor-driven cycles for consistent performance
• Failure symptoms can include "sensor" errors, cycles ending too soon or running too long, or inconsistent results
• In some models, a bad sensor may prevent sensor modes from starting

• Disconnect power before servicing; microwaves can retain dangerous high voltage—discharge the capacitor before touching internal components
• Access and mounting location vary by model; commonly found behind the grille or near the control in the air duct path
• Route the harness exactly as original; keep wiring away from sharp edges and hot areas
• Avoid touching the sensing tip; ensure all connectors are fully seated

This motor overload protector helps prevent motor overheating by cutting power if the motor draws excessive current or gets too hot. It restores normal operation once the motor cools, helping protect the main motor from heat-related damage. What it does:

• Senses excessive motor current/heat and interrupts power to stop the motor from overheating
• Can prevent burning or further damage when a motor is overloaded or stuck
• Common symptom: washer motor hums but won't start or spins intermittently
• Works as a protective component in the washer's motor circuit

• One overload (motor protector) as shown

• Disconnect power before accessing or replacing the overload
• Access the motor area from the rear or bottom panel per your model's service instructions
• Handle terminals carefully and reconnect wires to the correct terminals
• If symptoms persist after replacement, test the motor and related components.

This relay cover is a protective housing that shields a washer or dryer relay assembly from dust, moisture, and accidental contact, helping maintain safe and reliable operation of the appliance's control components. What it does:

• Protects the relay and nearby wiring from debris and moisture that can cause shorts or corrosion
• Helps prevent accidental contact with relay terminals during maintenance
• Reduces risk of electrical arcing or damage when relays switch under load
• Can improve long-term reliability of the control assembly when installed and intact

• Disconnect power to the appliance before servicing to avoid electrical shock
• Remove access panels as needed to reach the relay area; basic hand tools typically required
• Handle control board and components carefully to avoid damage from electrostatic discharge
• Replace only with the specified cover; do not modify or force-fit

The Drier Assembly is an OEM part for LG refrigerators. This part is responsible for removing moisture and contaminants from the refrigerant. This ensures that the refrigerant circulates effectively and efficiently, preventing damage to other components and maintaining the refrigerator's cooling performance.

Causes of a bad Drier Assembly can include contamination from moisture entering the refrigerant lines, blockages from debris or particulates, and general wear and tear over time that reduces its effectiveness.

Symptoms of a bad Drier Assembly include:

• Reduced cooling efficiency or warm refrigerator temperatures
• Unusual noises from the refrigeration system
• The compressor running continuously or cycling frequently
• Frost buildup on the evaporator coils due to improper refrigerant flow

This OEM LG part is also compatible with Sears/Kenmore models.

This fan guide directs airflow from the evaporator fan to improve cold-air circulation in the fresh food/freezer compartment. It restores proper air routing for more even cooling and reduces direct fan contact with other components. What it does:

• Channels cold air from the evaporator fan into the cabinet for consistent temperature distribution
• Keeps the fan blade aligned and prevents rubbing or contact with other parts
• Helps reduce noise caused by misdirected airflow or loose fan components
• Commonly replaced when cracked, broken, or warped from impact or age

• Disconnect power before servicing the appliance to avoid electrical shock
• Replacement typically requires removing the evaporator cover or inner liner to access the fan area
• Inspect surrounding mounts and fasteners; replace any damaged clips to ensure secure fit
• Handle plastic guide carefully to avoid cracking during installation

This drip tray is the replacement pan that collects defrost and condensate water beneath the refrigerator, helping keep floor and cabinet areas dry. It restores the appliance's normal water drainage path. What it does:

• Catches defrost and condensate water from the freezer/refrigerator evaporator
• Directs collected water to the evaporator/heat source or drain area to allow evaporation
• Helps stop water pooling under or around the appliance that can cause floor damage
• Fits into the cabinet under the unit and works with existing drain and mounting features

• One drip tray

• Disconnect power to the appliance before attempting any service
• Pull the appliance away from the wall and remove the kick plate or front access panel as needed to access the tray
• Replace the tray in the cabinet, ensuring it seats and aligns with existing clips, slots, or drain tube
• If you see additional damage (cracked supports, clogged drain tube), inspect and replace those parts separately

This replacement fan assembly restores airflow in your appliance's cooling system to help maintain proper temperature and circulation. It's a direct-fit replacement designed to stop airflow-related issues and reduce noise from a failing fan. What it does:

• Circulates air across evaporator/condenser coils to support proper cooling and defrost cycles
• Replaces a worn or failed fan that can cause warm compartments or poor cooling
• Helps eliminate unusual humming, grinding, or rattling caused by a damaged fan blade or motor
• Supports even temperature distribution and can reduce frost buildup when fan operation is restored

• Disconnect power before starting; work on powered appliances can cause shock or injury
• Handle the fan blade carefully to avoid bending blades or damaging the motor
• Secure mounting fasteners to prevent vibration

This fan assembly moves air through the appliance to help maintain proper cooling and airflow. It replaces a worn or noisy fan to restore efficient air circulation and temperature consistency. What it does:

• Circulates air across evaporator or condenser coils to support proper cooling
• Helps reduce temperature fluctuations and frost buildup when functioning correctly
• Stops or slows excessive noise caused by a damaged or unbalanced fan
• Restores airflow when a failed fan motor or blade prevents circulation

• One fan assembly (motor and blade housing)

• Disconnect power before starting any repair to avoid shock or injury
• Handle the fan blades and motor carefully to avoid bending blades or damaging wiring

It contains the defrost temperature sensor and the defrost thermal fuse.

This evaporator fan motor assembly moves cold air across the evaporator and throughout the fresh food compartment to keep temperatures even and cooling consistent. Replace it to restore proper airflow and help eliminate warm spots or frost buildup. What it does

• Circulates chilled air from the evaporator into the refrigerator section
• Helps maintain stable temperatures and consistent cooling performance
• Replaces a motor that is noisy, stalls intermittently, or doesn't run
• Helps with symptoms like weak/no airflow from refrigerator vents, a warm fridge compartment, or ice/frost on the rear interior panel

• One refrigerator fan motor assembly

• Disconnect power to the refrigerator before servicing
• Access the assembly behind the rear interior panel of the refrigerator section
• Remove the panel, disconnect the wire harness, and release the motor assembly from its mounts; transfer any model-specific fan blade or isolators if required
• Ensure the fan spins freely and wiring is clear of the blade before restoring power; use care around sharp edges and the evaporator coil

This evaporator fan motor assembly circulates cold air across the evaporator coils and throughout the cabinet to keep temperatures even. Replacing a worn motor restores airflow and helps reduce warm spots and grinding or squealing fan noise. What it does:

• Circulates air across the evaporator and through vents to cool the refrigerator and freezer compartments
• Helps maintain uniform temperatures and consistent airflow throughout the cabinet
• Common failure signs: weak or no airflow, refrigerator section warmer than the freezer, or whining/rattling fan noise
• Fan typically runs only with the door switch closed; lack of operation with the switch closed can indicate a failed motor

• Includes: 1 evaporator fan motor assembly

• Disconnect power before servicing; interior panels and liners can have sharp edges
• Access is typically behind the rear panel of the freezer or fresh food section (varies by model)
• Disconnect the wiring harness, remove the old assembly, and install the new one securely with wiring routed clear of the blade
• Restore power and depress the door switch to verify fan operation and airflow

This motor support damper sits between the refrigerator's compressor and base to absorb vibration and movement. Replacing a worn damper helps quiet rattles and humming from the back of the cabinet and keeps the compressor properly supported.

• Cushions the compressor to reduce transmitted vibration and noise
• Helps quiet humming, buzzing, or rattling from the lower rear of the refrigerator
• Maintains proper compressor alignment and support on the base pan
• Common signs of wear: increased vibration/noise, a cracked or flattened damper, or noticeable compressor movement when running

• Unplug the refrigerator and pull it forward to access the rear; allow the compressor to cool before working
• Support the compressor to remove load from the mount before loosening hardware
• Replace the damper and tighten mounting hardware evenly without over-compressing the rubber
• Avoid bending or stressing refrigerant tubing; wear gloves and eye protection

The Rear Evaporator Motor Grommet is an OEM part for LG refrigerators. It's designed to secure and cushion the evaporator motor, ensuring it remains in place and operates quietly. This grommet plays a crucial role in minimizing vibrations and noise from the motor, which can otherwise lead to a disruptive refrigerator operation.

Causes of a bad Rear Evaporator Motor Grommet can result from deterioration due to cooling and thawing cycles in the refrigerator. Physical damage during cleaning or servicing may cause a loose motor fit.

Symptoms of a malfunctioning Rear Evaporator Motor Grommet include:

• Unusual noises or vibrations from the back of the refrigerator.
• The evaporator motor shifting out of place, which can affect cooling efficiency.
• Increased wear on the evaporator motor due to lack of proper cushioning and support.

This OEM LG part is also compatible with some Kenmore models.

The Rear Evaporator Motor Grommet is an OEM part for LG refrigerators. It's designed to secure and cushion the evaporator motor, ensuring it remains in place and operates quietly. This grommet plays a crucial role in minimizing vibrations and noise from the motor, which can otherwise lead to a disruptive refrigerator operation.

Causes of a bad Rear Evaporator Motor Grommet can result from deterioration due to cooling and thawing cycles in the refrigerator. Physical damage during cleaning or servicing may cause a loose motor fit.

Symptoms of a malfunctioning Rear Evaporator Motor Grommet include:

• Unusual noises or vibrations from the back of the refrigerator.
• The evaporator motor shifting out of place, which can affect cooling efficiency.
• Increased wear on the evaporator motor due to lack of proper cushioning and support.

This OEM LG part is also compatible with some Kenmore models.

The Front Evaporator Motor Grommet is an OEM part for LG refrigerators. This grommet cushions and secures the evaporator motor, reducing vibrations and noise during operation to ensure efficient cooling.

Causes of a bad grommet can include prolonged use leading to material fatigue, exposure to extreme temperatures, or physical damage from accidental impacts. A damaged grommet can result in increased noise and potential misalignment of the evaporator motor.

Symptoms of a bad evaporator motor grommet include:

• Increased noise from the refrigerator
• Vibrations or rattling sounds
• Poor cooling performance
• The evaporator motor becoming loose

This OEM LG part is also compatible with Sears/Kenmore.

The Ice Dispenser Door Motor is an OEM part for LG refrigerators. This motor is responsible for the operation of the ice dispenser door, controlling its opening and closing mechanism to allow ice to be dispensed without letting warm air into the freezer.

Symptoms of a bad Ice Dispenser Door Motor include:

• The dispenser door not opening or closing properly,
• Ice not being dispensed when activated,
• Unusual noises coming from the dispenser mechanism.

Causes of ice dispenser door motor failure can include electrical issues such as shorts or wiring problems, mechanical wear over time, or blockages that strain the motor.

This OEM LG part is also compatible with Sears/Kenmore.

This motor start/run capacitor helps the appliance motor or compressor start and run more reliably, restoring proper motor performance and reducing symptoms caused by a weak or failed capacitor. What it does:

• Provides the momentary electrical boost motors or compressors need to start
• Helps maintain stable motor operation during run cycles
• Resolves symptoms like motors that hum but won't start, intermittent starting issues, or cycling problems
• Replaces a worn or failed capacitor to restore consistent performance

• One replacement capacitor as shown

• Disconnect power before servicing and verify the appliance is de-energized
• Capacitors can hold charge — discharge safely before touching terminals
• Match terminal type and mounting location to the original part; do not force connections

This harness joint is a wiring connector that links two sections of an appliance wiring harness, restoring electrical continuity and reliable signal/power transfer. Use it to replace a damaged, loose, or corroded harness connection. What it does:

• Joins wiring harnesses so power and control signals pass between components
• Restores intermittent or lost electrical connections caused by broken or corroded terminals
• Helps eliminate symptoms like no power to a module, intermittent operation, or communication failures
• Maintains proper routing and strain relief where harness sections meet

• Disconnect power (unplug or shut off breaker) before inspecting or replacing wiring
• Match connector shape and terminal arrangement before installation; secure firmly until it clicks or seats
• Avoid forcing pins; inspect adjacent wires and insulation for damage and replace if needed

The Ice Maker is an OEM part for LG refrigerators. It is designed to produce ice within the refrigerator, ensuring a consistent supply of ice for your household needs. The ice maker unit fits seamlessly into the freezer compartment and is responsible for the automatic production and harvesting of ice cubes, providing convenience and efficiency.

Causes of a bad ice maker can include a faulty water inlet valve, issues with the ice maker module, or a malfunctioning thermostat. Additionally, mineral buildup or clogging in the water line can impede the ice-making process.

Symptoms of a bad Ice Maker include:

• No ice production
• Ice cubes are smaller than usual
• Ice maker not dispensing ice
• Unusual noises from the ice maker area

This OEM LG part is also compatible with Sears/Kenmore.

This holder assembly is a structural mounting piece that supports and secures an internal component in your appliance. Replacing a cracked or worn bracket helps restore proper alignment and keeps parts stable during everyday use.

• Provides a rigid mounting point for the attached component
• Keeps parts aligned to reduce movement and vibration
• Helps prevent rattling or noise from loose mounts
• Common signs of failure: visible cracks/broken tabs, looseness, or parts that won't stay seated

• Disconnect power and, if applicable, turn off the water supply before service
• Note the orientation of the original part to match fitment
• Reuse existing mounting screws or hardware unless the manufacturer specifies otherwise
• Do not overtighten fasteners; the secured component is fully seated and stable

The Water Filter Bypass is an OEM part for LG refrigerators. It provides a way to bypass the installed water filter and allows the water line to pass directly to the ice maker and water dispenser.

Causes of a bad water filter bypass can include mineral or sediment buildup restricting water flow, cracks or leaks in the plastic components, or damage to the bypass valve.

Symptoms of a bad water filter bypass include:

• Slow or declining water pressure at the dispenser
• Sediment or particles in the water
• Inability to bypass a clogged water filter
• Leaks in the water line connections

Replacing the water filter bypass restores optimal water flow and allows the filter to be changed out easily. This OEM LG part is also compatible with Sears/Kenmore models.

The LG Refrigerator Water Filter is an OEM Replacement Part. It is designed to improve the quality of water and protect refrigerators and ice machines from sediment deposits. This NSF-Certified filter effectively reduces iron and particulates. It also preserves beneficial minerals like fluoride. The filter measures 5.6 inches high and 3.3 inches in diameter.

It is installed by removing the top shelf and pulling the old filter downward. Then turn it counter-clockwise, and replace it with the new filter aligned in a horizontal position. To ensure the best performance and the removal of trapped air and contaminants, it's recommended to flush the dispenser with 2.5 gallons of water in alternating cycles. If your model includes a water filter indicator, press and hold the Filter or Reset button for 5 seconds after installation. With a lifespan of 6 months and a 500-gallon capacity, this filter provides both quality and longevity.

The Left Hand Guide Rail is an OEM part for LG refrigerators. This part supports and guides the ice bucket, ensuring smooth and stable movement when inserting or removing the bucket from the freezer compartment.

Causes of a bad guide rail can include regular wear and tear, damage from overloading the ice bucket, or accidental impacts that cause the rail to bend or break.

Symptoms of a bad Left Hand Guide Rail for the ice bucket include:

• Difficulty sliding the ice bucket in and out
• The ice bucket not aligning properly or sagging
• Unusual noises when operating the ice bucket
• The ice bucket getting stuck or not moving smoothly

This OEM LG part is also compatible with some Kenmore models.

The Water Tank is an OEM part for LG refrigerators. This tank stores and supplies water to the refrigerator's ice maker and water dispenser, ensuring a consistent supply of fresh, filtered water. It is designed to fit securely within the refrigerator, maintaining hygiene and preventing leaks.

Over time, the water tank can become worn out, cracked, or contaminated. Common causes of a bad water tank include regular wear and tear, exposure to extreme temperatures, or damage from mishandling or improper installation.

Symptoms of a bad water tank include:

• Leaking water inside the refrigerator
• Low water flow to the dispenser or ice maker
• Unusual tastes or odors in the water
• Visible cracks or damage to the tank

This OEM LG part is also compatible with Sears/Kenmore.

This is the water injector tube for select refrigerators. It routes water from the supply system into the appropriate internal channel, helping ensure proper flow to the ice maker or dispenser and preventing leaks at the connection point.

• Directs water from the valve/supply line into the refrigerator's internal water path
• Helps restore proper ice maker/dispenser filling
• Common symptoms: leaking at the rear/under the unit, poor or no ice production, slow or no dispenser flow

• Unplug the refrigerator and shut off the water supply before service
• Have a towel ready to catch residual water from the line
• Note tube routing and connection points before removal; push-to-connect fittings may be present
• After installation, turn water on and check all joints for leaks

The Water Inlet Valve Assembly is an OEM part for LG refrigerators. This valve controls the flow of water into the refrigerator for the ice maker and water dispenser. It ensures a steady supply of water, allowing these features to function efficiently.

You should replace the water inlet valve assembly if it becomes defective. Causes of a bad water inlet valve can include sediment build-up, electrical faults, or mechanical wear. These issues can compromise the valve's ability to open and close correctly, affecting water flow.

Symptoms of a bad water inlet valve assembly include:

• No water or ice production
• Leaks or water pooling around the refrigerator
• Low water pressure from the dispenser
• Strange noises during water filling

This OEM LG part is also compatible with Sears/Kenmore models.

The Connector (Mech), Tube is an OEM part for LG refrigerators. It is used to securely connect water tubing within the refrigerator, ensuring a reliable flow of water to components such as the ice maker and water dispenser.

Causes of a bad connector can include wear and tear over time, physical damage from improper installation or handling, or degradation due to exposure to varying temperatures and water pressure.

Symptoms of a bad connector include:

• Leaks or drips around the connector area
• Reduced water flow to the ice maker or water dispenser
• Water pooling inside or around the refrigerator
• The ice maker or water dispenser not functioning properly

This OEM LG part is also compatible with Sears/Kenmore models.

This mechanical mounting band secures a bracket assembly inside the appliance to keep components aligned and reduce vibration. It restores proper bracket positioning so moving parts run quietly and reliably. What it does:

• Holds a bracket or component assembly in place to maintain proper alignment
• Dampens movement and reduces vibration-related noise or rattling
• Prevents excess wear by keeping parts from shifting during operation
• Helps maintain correct clearances to avoid interference or rubbing

• Disconnect power before inspecting or replacing internal parts
• Remove only the fasteners necessary to access the bracket; keep track of hardware
• Secure all fasteners to the manufacturer's torque or snug specification
• Replace the band if bent, cracked, or missing to restore proper fit and function

This cover assembly replaces a damaged or missing control-panel cover to restore a clean appearance and protect the controls from spills, dust, and accidental contact. It fits over the appliance control area and aligns with factory mounting points. What it does

• Shields the control board and buttons from moisture, debris, and impact
• Restores a finished, factory look to the control area
• Prevents accidental button presses caused by objects or debris
• Helps reduce the chance of corrosion or shorting on exposed controls

• One cover assembly as pictured

• Disconnect power before starting any repair to avoid shock or damage
• Installation typically requires removing trim or screws and snapping or fastening the cover into place
• Handle carefully to avoid scratching the finish; use correct fasteners and alignment for a secure fit

This cover tube is a molded protective housing that shields internal components and wiring from wear, heat, and debris. It helps maintain safe operation and prevents rubbing or chafing that can lead to damage. What it does:

• Covers and protects internal wiring, hoses or assemblies from contact and abrasion
• Helps direct airflow and keeps debris away from sensitive parts
• Reduces noise caused by rubbing or loose components
• Preserves component alignment and prevents premature wear

• Disconnect power to the appliance before beginning any repair.
• Installation requires partial disassembly of the appliance; keep track of screws and clips.
• Use OEM replacement and follow the service manual for correct orientation and torque of fasteners.
• If you see damaged wiring or other compromised parts, replace or repair those items before reinstalling the cover tube.

This holder is a small mounting bracket that secures a mating component in place inside the appliance. Replacing a cracked or missing holder restores a firm, rattle-free fit and proper alignment.

• Provides a stable mount for the designated part
• Prevents shifting and vibration that can cause noise or premature wear
• Common signs of failure: broken tabs, stress cracks, or the attached part sagging or falling out
• When damaged, the connected component may be loose, noisy, or misaligned

• Disconnect power; if working near water tubing, also shut off the water supply
• Note the original orientation and mounting points; take a photo before removal
• Reuse existing fasteners and avoid overtightening to prevent cracking the plastic
• Ensure the attached component is secure and clears any moving parts before restoring power

The Freezer Temperature Sensor is an OEM part for LG refrigerators. This sensor monitors the temperature within the freezer compartment, sending readings to the refrigerator’s control board to maintain optimal temperature levels. It plays a crucial role in ensuring that the freezer operates efficiently and keeps food items properly frozen.

Over time, the temperature sensor can fail due to regular wear and tear, electrical issues, or exposure to extreme temperatures. A faulty sensor can lead to inaccurate temperature readings, affecting the freezer's performance.

Symptoms of a bad freezer temperature sensor include:

• Inconsistent freezer temperatures
• The freezer running continuously or not running at all
• Frost buildup in the freezer compartment
• The control board displaying error codes related to temperature

This OEM LG part is also compatible with Sears/Kenmore.

The Refrigerator Temperature Sensor is an OEM part for LG refrigerators. This sensor monitors the temperature inside the refrigerator and communicates with the control board to maintain the optimal cooling environment.

Common causes of failure include wear and tear over time, electrical issues, or exposure to moisture. A malfunctioning sensor can lead to inaccurate temperature readings, resulting in improper cooling or freezing.

Symptoms of a bad refrigerator temperature sensor include:

• Inconsistent refrigerator or freezer temperatures
• Food spoiling faster than usual
• Refrigerator running continuously or not running at all
• Error codes displayed on the control panel

This OEM LG part is also compatible with Sears/Kenmore models.
