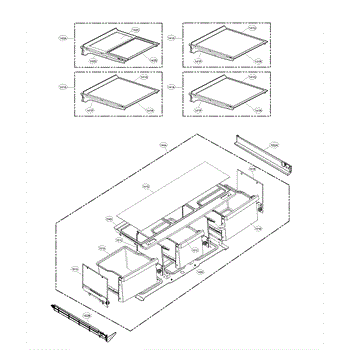

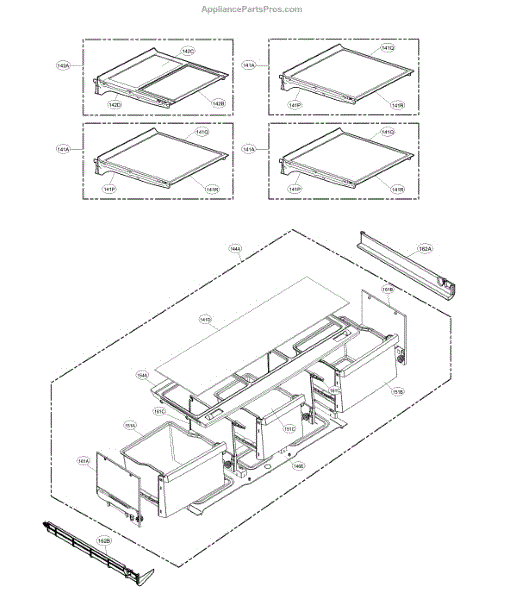

Parts for Lg LMXC23746S/01: Refrigerator Parts

This is a genuine replacement screw used to secure appliance panels and components. It restores proper fastening so panels and assemblies stay aligned and operate safely. What it does:

• Fastens panels, brackets, and small assemblies to maintain structural integrity
• Replaces missing or stripped screws that cause rattling or loose parts
• Helps stop vibration-related noise when used in its original mounting locations
• Matches the OEM fit to ensure proper alignment and clearance

• Use the correct screwdriver or bit to avoid stripping the head
• Tighten until snug; do not overtighten to prevent thread or component damage
• Disconnect power to the appliance before working on electrical components
• Replace all matching fasteners for even fit

This hinge bolt secures the hinge to the appliance cabinet or door, keeping alignment true and motion smooth. Replacing a stripped, missing, or corroded bolt helps restore proper door operation and reliable closing.

• Fastens the hinge to support and stabilize the door
• Helps maintain alignment for smooth opening and closing
• Replaces damaged, stripped, or missing hardware

• Disconnect power to the appliance; shut off water supply if applicable
• Support the door to prevent strain on remaining hardware; enlist a second person if needed
• Note the order/orientation of any shims or washers and transfer them during reassembly
• Start threads by hand to avoid cross-threading; tighten securely without overtightening

This is a replacement mounting bolt used to secure appliance components and assemblies, restoring proper fit and reducing movement that can cause noise or misalignment. Use when a factory fastener is missing or damaged. What it does

• Fastens panels or internal components to maintain correct alignment and structural integrity.
• Prevents vibration-related noise and rubbing by holding parts securely in place.
• Restores secure connections after disassembly for service or repair.
• Helps eliminate intermittent movement that can lead to wear or leaks when a fastener is compromised.

• Use the correct bolt length and thread engagement for the application; do not force a mismatched fastener.
• Tighten to snug, manufacturer-specified torque when available; avoid overtightening to prevent stripping.
• Inspect surrounding parts (washers, nuts, threaded holes) and replace if worn or damaged.
• Disconnect power and follow all safety precautions before servicing the appliance.

This screw is a direct-fit replacement fastener that secures panels, brackets, and internal components. Replacing a missing or stripped screw helps stop rattling and keeps parts aligned for reliable operation. What it does:

• Secures panels, trim, brackets, or internal components to restore proper fit
• Replaces missing or damaged hardware that can cause rattling or loose parts
• Restores alignment so doors, shelves, or assemblies operate smoothly
• Provides a straightforward hardware fix without replacing larger assemblies

• Use the matching screwdriver or driver bit to avoid stripping the head
• Do not overtighten — snug until seated to avoid damaging threads or plastic parts
• Disconnect power or follow appliance safety instructions before servicing electrical areas
• Keep removed hardware organized and save any damaged parts for inspection

The Handle Mounting Stud is an OEM replacement part for LG refrigerator doors. It provides a sturdy mounting point for the door handle assembly. Reliable handle connection and support is crucial for dependable door function and access.

Causes of a faulty stud can include damage from excess weight or impact over time rendering the stud loose or unstable.

Symptoms of a bad stud include:

• Loose or sagging door handle
• Difficulty opening and closing the refrigerator door
• Potential for the handle to detach completely
• Safety concerns if the handle connection fails

This OEM LG replacement stud is also compatible with Sears/Kenmore models.

This is a customized screw used to secure components in LG appliances. It replaces a worn or missing fastener to restore proper assembly and reduce rattling or loose panels. What it does:

• Secures panels, brackets, or small components in the appliance chassis
• Helps stop vibration-related noise caused by loose fasteners
• Replaces missing or stripped screws to restore safe, stable assembly
• Matches OEM fit for the specific mounting point it was made for

• Use the correct screwdriver or driver bit to avoid stripping the head
• Tighten until snug; avoid over-torquing which can damage threads or parts
• Disconnect power and follow appliance-specific safety procedures before servicing

This rear door handle replaces a worn or damaged handle on compatible LG appliances, restoring a secure grip and smooth opening. It's a direct-fit exterior handle that keeps the appliance door operating and looking right. What it does

• Provides a secure gripping point to open and close the appliance door
• Replaces cracked, loose, or broken rear handle hardware
• Restores correct alignment and feel when the door is operated
• Helps prevent further damage to the door edge from makeshift handles

• Power off and unplug the appliance before starting work; remove food or shelves as needed for access
• Keep fasteners and mounting clips; transfer original hardware unless new hardware is explicitly included
• Test door operation and alignment after installation; tighten fasteners evenly to avoid stress

This is a replacement drain tube assembly that directs water from the appliance tub to the drain pump or household drain, helping restore proper water removal and reduce leaks. It's a direct-fit service part used in the drainage system. What it does:

• Channels wastewater away from the tub to the drain pump or drain line
• Helps prevent pooling or slow draining caused by a damaged or disconnected tube
• Restores a sealed path to reduce leaks at the tub-to-pump connection
• Suitable when the original drain tube is cracked, split, collapsed, or leaking

• One drain tube assembly as shown

• Disconnect power and water before beginning any repair to avoid shock or flooding
• Inspect and clean mating surfaces and clamps; replace clamps if corroded or damaged
• Ensure correct routing and secure connections to prevent kinks and leaks

The Leveling Leg is an OEM part for LG refrigerators. It is one of the four legs at the bottom corners that elevate and provide stability to the entire appliance.

Causes of failure can be broken mounting points that no longer provide secure elevation, full compression of the built-in cushioning, or damage from impact on an unlevel floor.

Symptoms of a faulty leveling leg include:

• Excessive shaking or vibrating of the refrigerator
• Door alignment issues where doors are difficult to open or close fully
• Visible leaning or misalignment of the refrigerator cabinet

This OEM LG part is also compatible with some Kenmore models.

This replacement duct assembly routes exhaust air and restores proper airflow in compatible dryer units. It helps maintain efficient venting and reduces airflow restrictions that cause longer cycle times or overheating. What it does:

• Channels dryer exhaust to the vent to maintain airflow
• Replaces damaged, crushed or disconnected ducting that can restrict airflow
• Helps reduce extended drying times and poor drying performance linked to vent issues
• Addresses vent noise or vibration caused by loose or misaligned duct components

• Disconnect power and unplug the appliance before starting any repair
• Access may require removing the dryer rear panel or cabinet
• Ensure all hose clamps and seals are tight and the duct path is free of lint or obstructions
• If venting runs outdoors, the exterior vent is clear for proper exhaust

A small protective cap that covers and protects a component connection or opening from dirt and moisture, helping maintain proper function and prolong component life. Simple replacement when the original cap is cracked, missing, or worn. What it does:

• Covers exposed fittings, terminals, or openings to keep out debris and moisture
• Helps prevent leaks or contamination at the sealed connection
• Restores a secure fit when the original cap is cracked, split, or degraded
• Commonly used where a small, removable protective seal is required

• Inspect mating surface and surrounding gasket/seal before installing; replace other damaged parts as needed
• Press the cap firmly into place until fully seated; no special tools usually required
• Wear gloves and disconnect power or water supply if working near energized or pressurized components

The Shelf Assembly is an OEM replacement part for LG refrigerators. It provides a movable shelf surface for organizing and storing items in the refrigerator or freezer compartment.

Symptoms of a bad shelf assembly include:

• Sagging or bowing of the shelf surface
• Difficulty in moving or removing the shelf
• Damage or cracks in the frame or wire grid
•  Inability to bear weight as intended

Causes of failure can be repeated overloading, accidental impacts, or normal wear and tear over time.

This authentic LG shelf assembly is also compatible with refrigerators by Kenmore models.

This replacement door basket restores storage space on the refrigerator door so bottles and small items stay organized and secure. Durable molded plastic keeps contents visible and contained for everyday kitchen use. What it does:

• Replaces a cracked, chipped or broken door bin that no longer holds items securely
• Restores proper fit and alignment so the door closes and shelves stay stable
• Keeps bottles, condiments and small containers organized and easy to access
• Prevents items from falling out when the door is opened or closed

• One door basket

• Remove all items from the door and lift out the old basket before installing the replacement
• Align the bin with the door rails and press firmly until it snaps into place
• No special tools typically required; handle with care to avoid chipping the new plastic

This replacement tray assembly restores the drawer's support and containment so stored items sit level and the drawer operates as intended. Designed to replace a cracked, warped, or damaged drawer tray. What it does:

• Provides a stable, molded surface for items stored inside the drawer
• Supports the drawer floor to help maintain proper alignment and seating
• Helps contain spills and direct moisture away from drawer slides
• Replaces trays with visible cracks, breaks, warping, or failed mounting tabs

• One tray assembly

• Remove contents and slide the drawer out before replacing the tray
• Inspect mounting tabs and rails for damage; replace any additional broken hardware as needed
• Use basic hand tools only; follow OEM instructions for proper seating and alignment
• Disconnect power only if required by your appliance model's service instructions

This refrigerator shelf assembly provides a stable, easy-to-clean surface for storing food and containers in the fresh-food compartment. Replace a cracked, chipped, or missing shelf to restore usable storage and organization. What it does:

• Supports dishes, containers and groceries so items stay secure and level
• Restores storage space and helps prevent spills from reaching lower compartments
• Replaces cracked, chipped or missing shelves that can reduce usable space
• Matches OEM fit to slide into existing shelf tracks for straightforward placement

• Remove all items from the shelf and surrounding area before installing.
• Slide the shelf into the existing tracks until it seats; do not force or bend tracks.
• Use gloves and eye protection when handling glass to avoid cuts.
• If the shelf does not seat smoothly, check for obstructions or damaged tracks before applying pressure.

Glass Shelf provides a flat, easy-to-clean storage surface inside your refrigerator, replacing cracked or broken shelves to restore usable storage and help keep food and containers organized and supported. What it does:

• Provides a stable surface for food, beverage containers and small appliances inside the fridge.
• Replaces cracked, chipped or shattered shelves to restore full usable shelf space.
• Helps contain small spills and makes cleaning faster compared with wire shelving.
• Sits in existing shelf rails/grooves to lock into place without extra hardware (verify fit for your model).

• Remove food and loose items from the shelf area before removing or installing the shelf.
• Handle glass with care; wear cut-resistant gloves when installing or replacing a damaged shelf.
• Slide into existing shelf rails or grooves; do not force or pry if it does not seat easily.
• Inspect shelf supports or clips for damage and replace them if worn to ensure proper seating.

This shelf assembly replaces a broken or worn refrigerator glass shelf to restore sturdy, easy-to-clean storage space. The clear glass shelf supports food containers while maintaining proper airflow and visibility inside the fresh-food compartment. What it does:

• Replaces a damaged or cracked glass shelf to stop items from sliding or falling through gaps
• Provides a flat, stable surface for storing leftovers, produce, and containers
• Maintains proper spacing and airflow for even cooling in the fridge compartment
• Easy-to-clean glass surface resists stains and odors versus porous shelving

• Disconnect power to the appliance before starting any service to avoid injury
• Remove food and shelving above/below the area for safe access and alignment
• Slide the shelf into the existing track or support rails until it seats securely; do not force
• If any support rails or clips are damaged, replace them to ensure proper fit and safety

This shelf assembly replaces a broken or worn refrigerator glass shelf to restore sturdy, easy-to-clean storage space. The clear glass shelf supports food containers while maintaining proper airflow and visibility inside the fresh-food compartment. What it does:

• Replaces a damaged or cracked glass shelf to stop items from sliding or falling through gaps
• Provides a flat, stable surface for storing leftovers, produce, and containers
• Maintains proper spacing and airflow for even cooling in the fridge compartment
• Easy-to-clean glass surface resists stains and odors versus porous shelving

• Disconnect power to the appliance before starting any service to avoid injury
• Remove food and shelving above/below the area for safe access and alignment
• Slide the shelf into the existing track or support rails until it seats securely; do not force
• If any support rails or clips are damaged, replace them to ensure proper fit and safety

This shelf assembly replaces a broken or worn refrigerator glass shelf to restore sturdy, easy-to-clean storage space. The clear glass shelf supports food containers while maintaining proper airflow and visibility inside the fresh-food compartment. What it does:

• Replaces a damaged or cracked glass shelf to stop items from sliding or falling through gaps
• Provides a flat, stable surface for storing leftovers, produce, and containers
• Maintains proper spacing and airflow for even cooling in the fridge compartment
• Easy-to-clean glass surface resists stains and odors versus porous shelving

• Disconnect power to the appliance before starting any service to avoid injury
• Remove food and shelving above/below the area for safe access and alignment
• Slide the shelf into the existing track or support rails until it seats securely; do not force
• If any support rails or clips are damaged, replace them to ensure proper fit and safety

Note: This part is "Cover Only". Does not include pans or glass. Order pans and glass separately by model.

This rail guide assembly helps support and guide a sliding rack/drawer so it opens and closes smoothly and stays aligned. It replaces worn or broken guides to restore consistent rack movement and prevent binding or dropping. What it does:

• Guides the rack/drawer along its track for smooth operation
• Keeps the rack aligned to prevent tipping or falling out
• Replaces cracked, worn, or missing plastic guide components
• Helps eliminate sticking, grinding, or uneven sliding during use

• Disconnect power (and water if applicable) before beginning any repair
• Remove the rack/drawer and inspect mounting points before installing the new guide
• Use basic hand tools; avoid forcing parts to prevent damage
• Test the rack for smooth travel after installation

This rail guide assembly keeps a sliding component aligned and moving smoothly, restoring stable, low-friction travel for drawers or rails. It helps reduce noise, prevent binding, and maintain proper operation of the slide mechanism. What it does:

• Guides and supports the sliding rail to ensure straight, reliable travel
• Helps prevent sticking, misalignment, and uneven wear on the slide
• Reduces noise and vibration during operation
• Restores proper engagement of the rail with mating parts

• One guide assembly

• Disconnect power or unplug the appliance before starting any repair
• Use basic hand tools; follow OEM service manual or instructions for correct removal and alignment
• Inspect mating rails and fasteners for wear or damage and replace if needed
• Wear safety gloves and eye protection; test operation after installation

This rail connector secures a slide rail to its mounting point, keeping the rail aligned and stable so the assembly moves smoothly. Replace a cracked, worn, or missing connector to restore proper tracking and support.

• Joins the slide rail to its bracket or panel to maintain alignment and support
• Helps the rail travel smoothly without binding or coming off track
• Replaces broken, warped, or missing connectors that allow rails to loosen
• Typical signs of failure: rail separates, wobbles, sags, or won't stay engaged

• Disconnect power to the appliance; remove items to access the rail safely
• Remove the drawer/shelf and rail as needed to reach the connector
• Release locking tabs or fasteners, transfer the rail to the new connector, and seat it fully
• Reinstall components and test for smooth travel; wear gloves to protect hands from sharp edges

This connector joins two sections of the refrigerator's water tubing to create a secure, leak-resistant seal. Replace a cracked or loose connector to restore proper water flow to the dispenser and ice maker.

• Provides a sealed union between two water tubes in the appliance's water system
• Helps prevent air and water leaks that can impact dispenser and ice maker performance
• Typical failure signs include drips or puddles near the connection, visible seepage, or moisture alerts
• Also causes low/no dispenser flow or small or hollow ice cubes

• Disconnect power and shut off the water supply; dispense water to relieve line pressure
• Prepare tubing with a clean, square cut; insert each tube fully into the connector until seated, then pull-test to retention
• Restore water and check all joints for leaks; purge air by dispensing water before normal use

This slide rail supports and guides a refrigerator drawer so it opens and closes smoothly. Replacing a worn or cracked rail restores proper alignment and glide to prevent bins from binding, tilting, or popping out of the track.

• Provides the track the drawer/bin slides on
• Maintains drawer alignment and supports the bin during use
• Helps ensure smooth, even travel in and out
• Common failure signs: drawer hard to open/close, crooked or sagging bin, drawer comes off track, visible cracks or damage to the rail

• Disconnect power and remove the affected drawer/bin before starting.
• Remove screws securing the old rail; install the new rail in the same position and orientation.
• Transfer any reusable stops/caps from the original rail if applicable.
• Reinstall the drawer and verify smooth operation before reloading.

This cover assembly is a molded exterior panel that shields and finishes the appliance. Replacing a cracked or missing cover restores proper fit and protection for internal components, and keeps the unit looking the way it should.

• Protects internal components by covering and sealing the opening
• Helps maintain proper alignment with adjacent parts and trim
• Reduces gaps where dust and debris can enter
• Common signs of failure: cracks, broken tabs, loose fit, rattling, or visible damage

• Disconnect power; for appliances with water connections, shut off the water supply
• Note screw locations and take photos before removal for reference
• Transfer any clips, gaskets, badges, or lenses from the original as needed
• Align tabs and mounting holes; snug fasteners without overtightening and confirm clearances before restoring power

This replacement drawer guide helps the freezer/refrigerator drawer slide smoothly and stay aligned for reliable opening and closing. It restores stable support and reduces sticking or noisy movement. What it does:

• Guides the drawer along its track so it opens and closes smoothly
• Supports the drawer weight to prevent sagging or misalignment
• Helps eliminate binding, catching, or uneven movement
• Reduces scraping or rattling noises caused by a worn guide

• Disconnect power to the appliance or unplug before beginning any work
• Remove the drawer and any contents to access the guide mounting points
• Align the guide with the existing track and secure using the original screws or fasteners
• If mounting hardware is damaged or missing, replace with OEM-specified fasteners; do not force parts into place

This vegetable tray assembly replaces the lower crisper pan so fruits and vegetables sit on a sturdy, easy-to-clean surface. Restores storage area support and helps keep produce contained for normal refrigerator use. What it does:

• Supports the crisper drawer and contents to prevent sagging or tipping
• Provides a smooth, washable surface that helps contain spills and debris
• Helps maintain organized produce storage by keeping items confined to the drawer area
• Commonly replaced when the tray is cracked, warped, or no longer secures the drawer

• Remove food and the crisper drawer before installing; handle glass/plastic parts carefully to avoid breakage
• Snap or slide the tray into the existing rails
• Wear gloves to protect hands from sharp edges; unplug the refrigerator only if accessing electrical components
• If the tray does not align, check the drawer slides and supports for damage before forcing installation

This replacement vegetable tray assembly restores the refrigerator's crisper storage area so fruits and vegetables sit securely and slide smoothly for easy access. It replaces a damaged, cracked, or missing crisper tray to regain usable storage space. What it does:

• Holds produce in the refrigerator's crisper area and helps prevent items from shifting or spilling
• Slides in and out on the crisper rails for convenient access to stored fruits and vegetables
• Restores proper fit and alignment when the original tray is cracked, broken, or warped
• Helps contain minor leaks and drips from produce and makes cleaning easier

• One vegetable tray assembly

• Remove all food and empty the crisper area before installation
• Slide old tray out and lift as needed to disengage; set new tray onto the crisper rails and test smooth operation
• Unplug the refrigerator or turn off power at the breaker if working near electrical components or lights
• Inspect rails and support brackets for damage or obstructions

Note: This part is "Cover Only". Does not include pans or glass. Order pans and glass separately by model.

The Temperature Sensor is an OEM part for LG refrigerators. It monitors the internal temperature and sends this information to the control board, ensuring that the refrigerator maintains the correct temperature for optimal food preservation.

Over time, temperature sensors can fail due to electrical issues, exposure to moisture, or wear and tear from continuous use.

Symptoms of a bad temperature sensor include:

• Inaccurate temperature readings
• The refrigerator or freezer being too warm or too cold
• The refrigerator running constantly or not running at all
• Error codes displayed on the control panel

This OEM LG part is also compatible with Sears/Kenmore models.

This guide rail keeps a refrigerator freezer drawer aligned and sliding smoothly so the drawer opens and closes without binding. It restores proper track support for worn, bent, or broken drawer slides. What it does:

• Replaces a damaged or worn drawer guide rail to stop sticking, binding, or misaligned drawers
• Provides stable lateral support so the drawer tracks run true and quietly
• Helps prevent drawer drop or uneven movement under load
• Works with the existing slide hardware to restore smooth operation

• Unplug the appliance or turn off power at the breaker before starting repair
• Remove drawer and any trim panels to access the guide rail; keep fasteners organized
• Inspect mating slide and rollers; replace any damaged components for best results

This ferrite magnet is a replacement magnetic element used in compatible appliance assemblies to help secure components and maintain proper alignment. It restores magnetic retention and reduces shifting or misalignment during operation. What it does:

• Provides magnetic retention for panels, assemblies or components that rely on ferrite magnets
• Helps maintain proper alignment and secure closure where magnets are used
• Can reduce noise and vibration related to loose magnetic components
• Useful when a brittle, cracked or weak magnet no longer holds parts in place

• Disconnect power and follow the appliance manufacturer's safety instructions before servicing
• Handle the magnet carefully; ferrite material is brittle and can chip or shatter if dropped or struck
• Keep magnets away from sensitive electronics and credit cards; avoid pinching fingers between strong magnets
• If the original magnet is bonded or embedded, some adhesive or light trim may be needed for proper fit.

Restore a tight, reliable seal on your refrigerator door with this Door Gasket Assembly. Replacing a worn or damaged gasket helps the unit hold temperature, reduce energy loss, and minimize condensation and frost around the door opening. What it does:

• Seals the door perimeter to keep cold air in and warm air out
• Helps maintain stable internal temperatures and efficiency
• Reduces moisture/condensation around the door area
• Limits frost or ice buildup caused by air leaks
• Common symptoms include tears, gaps, hardening, or a door not closing flush

• 1 door gasket assembly

• Unplug the refrigerator and clear door bins for easier access
• Let the new gasket relax flat; warm gently with a hair dryer or warm water to smooth kinks
• Press the gasket fully into the retainer/channel, starting at the corners and working evenly
• Close the door and check the seal all around; allow up to 24 hours for the gasket to conform

Restore a tight door seal and stop air leaks. This door gasket assembly forms the perimeter seal around the cabinet opening, helping maintain correct temperatures, reduce frost and condensation, and support efficient operation.

• Creates an airtight seal between the door and cabinet to keep conditioned air in
• Helps maintain stable internal temperatures and humidity
• Reduces frost/ice buildup and condensation around the door area
• Common symptoms of a failed gasket include tears, warping, gaps, doors not closing fully, moisture inside, or longer run times

• Disconnect power before servicing the appliance
• Let the new gasket warm and relax (room temperature or warm water); use low heat only if needed to smooth folds
• Start at the corners and press the gasket lip fully into the door's retainer channel, working evenly around
• Adjust door alignment if needed and allow time for the gasket to conform

This left-side door handle trim restores the finished appearance and edge protection on compatible refrigerators. It replaces cracked, scratched or missing trim to help the handle sit flush and improve the door's cosmetic finish. What it does

• Covers and protects the outer edge of the left door handle area
• Replaces cracked, broken or cosmetically damaged trim pieces
• Helps the handle sit flush and maintain a clean, finished look
• Works with the original mounting points and hardware

• One left door handle trim

• Remove contents from the door and support the door before beginning work
• Use basic hand tools to remove existing trim and secure the replacement to existing screw holes
• Do not force or bend the trim; align to original mounting points to avoid damage

This decor handle is the exterior trim piece for a refrigerator door that restores the original look and grip. It replaces cracked, scratched, or worn trim to improve appearance and provide a finished surface where the handle mounts. What it does:

• Replaces damaged or worn decorative handle trim to restore the appliance's appearance
• Covers and protects the handle mounting area from dirt and wear
• Helps provide a consistent grip surface along the door's edge
• Addresses cosmetic issues like scratches, chips, or fading

• Remove any tape or packaging and match the piece to the door before starting
• Support the door or work with a second person if needed to avoid stress on hinges
• Basic hand tools (screwdriver or nut driver) may be required to remove and reinstall mounting hardware
• Follow OEM instructions and disconnect power only if instructed for models with electrified door components

This Hinge Cover Assembly is the replacement hinge trim that restores the appliance's appearance and helps protect the hinge area from dirt and damage. It snaps into place for a clean, finished look. What it does:

• Covers and protects the hinge area to prevent debris buildup and reduce wear on the hinge
• Restores finished appearance where previous cover was cracked, broken, or missing
• Fits over the existing hinge to maintain proper clearance and trim alignment
• Helps hide mounting hardware for a seamless cabinet surface

• One Hinge Cover Assembly as shown

• Basic hand tools may be required; remove any damaged cover pieces before installing the new cover
• Align the cover over the hinge and press or snap into place; avoid forcing to prevent breakage
• Disconnect power and follow appliance-specific safety instructions if working near electrical components
• If screws or clips are present, keep hardware secure and reuse only OEM-recommended fasteners

This name plate is the exterior emblem that mounts to the appliance's front panel. It replaces a missing, cracked, or faded badge to restore a clean, factory look and cover the designated trim area.

• Attaches to the outer panel to display brand/series identification
• Restores a finished appearance where the original emblem sits
• Direct replacement for a lost, damaged, or worn badge
• Typical symptoms: missing emblem, loose or broken tabs, peeling, or discoloration

• Disconnect power before servicing the appliance
• Carefully remove the old emblem; release any tabs from behind or peel away remaining adhesive
• Clean and dry the mounting surface; remove all residue for best fit
• Align with the recess/holes and press evenly until fully seated

The Freezer Door Handle is an OEM part for LG refrigerators. It provides a convenient grip for opening and closing the freezer door, ensuring easy and efficient access to the freezer compartment.

Over time, freezer door handles can become loose, damaged, or break due to frequent use, accidental impacts, or general wear and tear. These issues can make it difficult to open or close the freezer door properly.

Symptoms of a bad freezer door handle include:

• Loose or wobbly handle
• Visible cracks or breaks in the handle
• Difficulty in opening or closing the freezer door
• Handle detaching from the door

This OEM LG part is also compatible with Sears/Kenmore models.

This door foam assembly replaces worn or damaged inner door insulation to help restore thermal performance and reduce vibration noise. It fits behind the door panel to improve temperature retention and support the door structure. What it does:

• Provides insulation inside the door cavity to help maintain interior temperature
• Dampens vibration and reduces rattling or noise from the door
• Fills gaps to help prevent moisture migration and condensation buildup
• Restores door shape and support when old foam has deteriorated

• Disconnect power and remove food or contents from the appliance before beginning.
• Access may require removing the outer and inner door panels; follow the OEM service manual.
• Handle the foam carefully to avoid tearing; use appropriate adhesive or fasteners if required by the model.

This refrigerator door gasket seals the door to the cabinet to keep cold air in and humid air out. Replacing a worn or torn seal restores proper temperatures, reduces frost and condensation, and helps the unit run efficiently.

• Creates an airtight seal between the door and cabinet perimeter
• Helps maintain internal temperature stability and energy efficiency
• Reduces frost/ice buildup and moisture around the door opening
• Common symptoms: visible tears or warping, gaps, door not sealing, warm spots, frost or condensation near the door

• Unplug the appliance before servicing
• Let the new gasket relax flat at room temperature, or gently warm it to make it more pliable
• Clean the sealing surfaces; seat corners first, then work evenly along the sides
• Close the door and check for uniform contact all around; adjust as needed for a consistent seal

This refrigerator door gasket assembly restores a tight, even seal around the door. A proper seal keeps cold air in and moisture out, helping maintain temperature, reduce frost and condensation, and prevent warm spots around the perimeter.

• Forms a continuous seal between the door and cabinet to prevent air leaks
• Helps maintain stable internal temperature and humidity
• Reduces frost/ice and condensation near the door area
• Replace if the gasket is torn, cracked, deformed, or won't sit flat
• Symptoms include gaps around the door, moisture on the gasket, frost buildup, or a door that won't close/seal properly

• Unplug the refrigerator before servicing
• Let the new gasket relax; use warm water or low heat to remove shipping creases
• Insert the gasket lip fully into the door's channel, starting at the corners, then work along the sides
• After installation, close the door and check for uniform contact all around; adjust the gasket as needed

This front plate assembly is the exterior trim piece that restores the appliance's front surface and protects internal components from dirt and damage. It improves appearance and helps maintain a proper seal and alignment. What it does:

• Replaces a cracked, dented, or missing front plate to restore the unit's exterior finish
• Shields controls and internal components from dust, spills, and everyday wear
• Helps maintain proper fit and alignment of adjacent panels and trim
• Returns the appliance to a finished, factory appearance

• Disconnect power to the appliance before beginning any repair.
• Installation typically requires removal of adjacent trim or the control bezel; keep all screws and fasteners for reinstallation.
• Handle the plate carefully to avoid scratching the finish during installation.

This refrigerator door shelf bin replaces a cracked or missing bin on the fresh food door. It snaps into the molded slots to restore secure, convenient storage for condiments, jars, and small bottles. What it does:

• Mounts to the inner door liner to hold items and free up shelf space
• Restores door storage capacity when the original bin is damaged or missing
• Common symptoms: cracked plastic, broken tabs, bin falls off, won't stay seated
• Helps keep jars and bottles organized and easy to access

• 1 door shelf bin

• Remove items from the old bin, then lift it straight up to release from the door slots
• Align the new bin's hooks with the door slots and press down firmly until it locks
• Handle plastic carefully and consider wearing gloves to avoid cuts from sharp edges
• Do not force the bin; ensure it's positioned in the correct door location before securing

This refrigerator door shelf bin replaces a cracked or missing bin on the fresh food door. It snaps into the molded slots to restore secure, convenient storage for condiments, jars, and small bottles. What it does:

• Mounts to the inner door liner to hold items and free up shelf space
• Restores door storage capacity when the original bin is damaged or missing
• Common symptoms: cracked plastic, broken tabs, bin falls off, won't stay seated
• Helps keep jars and bottles organized and easy to access

• 1 door shelf bin

• Remove items from the old bin, then lift it straight up to release from the door slots
• Align the new bin's hooks with the door slots and press down firmly until it locks
• Handle plastic carefully and consider wearing gloves to avoid cuts from sharp edges
• Do not force the bin; ensure it's positioned in the correct door location before securing

This refrigerator door shelf bin replaces a cracked or missing bin on the fresh food door. It snaps into the molded slots to restore secure, convenient storage for condiments, jars, and small bottles. What it does:

• Mounts to the inner door liner to hold items and free up shelf space
• Restores door storage capacity when the original bin is damaged or missing
• Common symptoms: cracked plastic, broken tabs, bin falls off, won't stay seated
• Helps keep jars and bottles organized and easy to access

• 1 door shelf bin

• Remove items from the old bin, then lift it straight up to release from the door slots
• Align the new bin's hooks with the door slots and press down firmly until it locks
• Handle plastic carefully and consider wearing gloves to avoid cuts from sharp edges
• Do not force the bin; ensure it's positioned in the correct door location before securing

The Refrigerator Door Shelf is an OEM part for LG refrigerators. It provides additional storage space on the door of the refrigerator, allowing for the organization and easy access of frequently used items such as condiments, beverages, and small containers. It measures approximately 14" x 4" x 4".

Causes of a bad refrigerator door shelf can include general wear and tear from repeated use, overloading the shelf with heavy items, or accidental damage during cleaning or reorganization. Cracks or breakage in the plastic material can also render the shelf unusable.

Symptoms of a bad refrigerator door shelf include:

• Cracked or broken shelf
• Items not staying securely on the shelf
• The shelf not fitting properly into the door brackets
• Difficulty in attaching or removing the shelf

This OEM LG part is also compatible with Sears/Kenmore refrigerators.

The Refrigerator Door Shelf is an OEM part for LG refrigerators. Designed to offer additional storage space, this door shelf seamlessly integrates into the refrigerator door, providing a convenient spot to store jars, bottles, and other condiments.

Over time, door shelves may suffer from wear and tear or become damaged due to overloading or accidental impact. This can lead to cracks, breaks, or a loose fit, which compromises the shelf's ability to hold items securely.

Symptoms of a bad Refrigerator Door Shelf include:

• Visible cracks or breaks in the shelf
• The shelf sagging or unable to hold items securely
• Difficulty fitting the shelf into the door slots
• Items falling through the shelf due to damage or warping

This OEM LG part is also compatible with some Kenmore models.

This stopper assembly mounts on the appliance door to cushion movement and hold the door in position, reducing wear and preventing slamming for smoother, safer operation. Fits as the OEM door stop used on compatible LG models. What it does:

• Cushions door movement to prevent hard impacts and reduce noise
• Holds the door in the open or closed position to prevent unwanted swings
• Helps maintain door alignment and reduces stress on hinges and latches
• Common symptom: door slams, won't stay open, or bangs against the cabinet

• Disconnect power and water before starting any repair
• Remove the door or open access for safe replacement
• Replacement typically requires basic hand tools (screwdriver or nut driver)
• Inspect surrounding hinge/fastener hardware and replace if worn

This door stopper assembly mounts at the hinge to control how far the door opens and promote smooth, consistent closing. Replacing a worn or broken stopper restores proper door swing and helps protect the hinge from overextension.

• Limits the door's opening range to prevent overextension
• Guides and cushions door movement for a smoother close
• Helps maintain door alignment at the hinge area
• Common symptoms: door swings too far, doesn't stop at the usual angle, clicks/binds near the hinge, or visible cracks/wear on the stopper

• Disconnect power to the appliance before servicing
• Support the door and use a helper when loosening hinge hardware
• Note the original orientation and transfer any spacers/shims if present
• Tighten fasteners evenly and verify smooth door operation before finalizing reassembly

The Lower Refrigerator Door Hinge is an OEM part for LG refrigerators. This hinge supports the refrigerator door, allowing it to open and close smoothly while maintaining proper alignment. It is designed to handle the weight of the door and ensure a secure and stable operation over time.

Causes of a bad lower refrigerator door hinge can include regular wear and tear, physical damage from overloading or impacts, and gradual loosening over time. A faulty hinge can lead to misalignment, difficulty in opening or closing the door, and potential damage to the door seal.

Symptoms of a bad lower refrigerator door hinge include:

• The door not closing properly or staying open
• Sagging or misaligned door
• Unusual noises when opening or closing the door
• Gaps in the door seal, causing cooling inefficiency

This OEM LG part is also compatible with Sears/Kenmore models.

The Lower Refrigerator Door Hinge is an OEM part for LG refrigerators, designed to support and pivot the refrigerator door, allowing it to open and close smoothly. This hinge is a critical component for the proper alignment and function of the door, ensuring an airtight seal when closed to maintain the internal temperature and efficiency of the refrigerator.

Causes of damage to the lower refrigerator door hinge often include normal wear and tear, excessive force when opening or closing the door, or corrosion due to moisture and cleaning agents.

Symptoms of a bad Lower Refrigerator Door Hinge include:

• Difficulty in opening or closing the refrigerator door.
• A door that hangs unevenly or does not close properly
• Unusual noises during door operation
• Visible wear or damage to the hinge itself.

This OEM LG part is also compatible with some Kenmore models.

The Refrigerator Door Handle is an OEM replacement part for LG refrigerators. The door handle provides an easy grip point for opening and closing the refrigerator door.

Symptoms of a bad door handle include:

• Looseness, wobbling, or detachment from the refrigerator door
• Cracking or splitting of the plastic material
• Discoloration or warping from sun exposure

Causes can be regular wear and tear over many opening and closing cycles. Repeated force exerted by grabbing the handle may cause stress fractures. Exposure to direct sunlight's UV rays can degrade plastic over time as well.

This OEM LG part is also compatible with Sears/Kenmore refrigerators.

This connector rail is a small replacement connector used to join or secure the wiring/harness along the appliance rail, helping maintain proper electrical routing and stable connections for reliable operation. What it does:

• Provides a secure connection point along a mounting rail to keep wiring harnesses routed and supported
• Helps prevent wires from snagging, rubbing, or becoming disconnected during use or door movement
• Reduces strain on terminals and harness ends by keeping wiring aligned and restrained
• Commonly replaced when cracked, broken, or when the connector no longer holds the harness securely

• One connector rail

• Disconnect power to the appliance before inspecting or replacing wiring components
• Replace only the listed connector;
• Use basic hand tools and avoid stretching or pinching the harness when installing
• If you find damaged wiring or terminals, repair or replace those parts before restoring power

This slide rail guides and supports a single appliance drawer or pull-out door so it opens and closes smoothly and stays aligned. Replaces a worn, bent, or noisy guide to restore proper movement and stability. What it does:

• Provides a rolling/sliding track for a drawer or pull-out door to travel smoothly
• Replaces damaged or worn rail that causes sticking, misalignment, or uneven movement
• Helps keep the drawer properly supported and prevents sagging or binding
• Works as a direct-fit replacement when the original rail is broken or worn

• One slide rail (single left or right guide)

• Disconnect power and empty the drawer before starting repairs
• Typical installation requires removing the drawer and fastening the rail with existing screws or clips
• Inspect mating hardware and replace any stripped screws or broken clips for secure fit

This slide rail is a direct-fit replacement that restores smooth, reliable movement to a refrigerator or freezer drawer. It replaces a worn or broken glide so the drawer opens and closes without sticking or sagging. What it does:

• Replaces a damaged or worn drawer glide to restore proper sliding action
• Supports the drawer to keep it level and reduce binding or sticking
• Reduces noise from grinding or scraping during drawer movement
• Helps maintain correct drawer alignment for proper sealing and operation

• Verify left/right orientation and part number before installation
• Remove contents and disconnect power if working near electrical components
• Typical installation uses existing mounting points and hardware; save original fasteners when possible

This ice maker drive gear engages the ice maker's motor to rotate the ejector and harvest ice, restoring proper ice release and ejection. Ideal for common ice-maker failures where the tray doesn't cycle. What it does:

• Transfers motor torque to the ice ejector, allowing the ice maker to harvest and eject cubes
• Commonly used when the ice maker stops cycling or fails to eject ice
• Can reduce grinding or clicking noises if the original gear is stripped or worn
• Works with the ice maker's harvest and fill sequence to maintain normal operation

• Power off and unplug the refrigerator before beginning service
• Remove the ice maker assembly per manufacturer instructions to access the gear
• Inspect mating gears and motor shaft for wear; replace any damaged parts to prevent repeat failure

This ice maker gear drives the ejector blades that push ice from the tray into the bin. Replacing a worn or broken gear restores proper harvest cycles and stops grinding or slipping during ejection. What it does:

• Turns the ice maker ejector to release ice cubes during the harvest cycle.
• Stops or reduces grinding noises and slipping when the gear teeth are stripped or damaged.
• Helps restore regular ice production when the ejector no longer rotates.
• Works as the replacement driven gear in compatible LG ice maker gear trains.

• Disconnect power before servicing the ice maker to avoid shock or injury.
• Remove the ice maker assembly to access the gear; follow OEM instructions for disassembly.
• Inspect the mating gear, motor shaft, and ejector assembly for wear—replace additional damaged parts as needed.
• Use the matching part number to ensure fit.

This harness assembly is the vehicle wiring connector that routes power and signals between the appliance control and components, restoring electrical connections for proper operation and control response. What it does:

• Carries power and control signals between the control board and components such as motors, sensors, valves or switches
• Reestablishes broken or damaged wiring paths that can cause intermittent operation, failure to start, or control errors
• Provides factory-matched connectors and wire lengths to maintain correct fit and reliable connections
• Helps eliminate issues caused by frayed wires, burnt contacts, or detached plugs

• Disconnect power (and water, if applicable) before starting any repair to avoid shock or injury
• Inspect connectors and mounting points; replace if pins are corroded or housings cracked
• Route harness along original clips and ties to avoid heat or pinch damage

This turntable roller ring sits under the glass tray and allows it to rotate smoothly for even heating. Replace a worn, warped, or broken ring to restore stable rotation and consistent cooking performance.

• Supports the glass turntable and rides on built-in rollers for smooth, quiet movement
• Keeps the tray level and centered to promote even heating
• Common symptoms: tray not turning, uneven cooking, scraping/grinding noises, or a wobbly/slipping turntable
• Restores proper interaction between the turntable, drive coupling, and motor

• Unplug the microwave or switch off the breaker before servicing
• Remove the glass tray; lift out the old ring and clean the track
• Place the new ring with the rollers facing down on the track; reseat the tray on the center drive coupling
• Test rotation with a microwave-safe cup of water

The Spanner Wrench is an OEM replacement part for LG refrigerators. This tool allows you to adjust the door hinges to ensure the doors are level and aligned properly. A well-aligned door is crucial for maintaining the internal temperature and efficiency of the refrigerator, preventing energy loss and ensuring food is stored under optimal conditions.

Symptoms that you might need to adjust the door hinges and potentially need this wrench include:

• Doors not closing properly or sealing tightly
• Visible gaps between the door and the main body of the refrigerator
• The refrigerator tilting or not sitting level

This spanner wrench is also compatible with some Sears/Kenmore refrigerators.

This upper hinge assembly secures and allows the refrigerator door to pivot smoothly, restoring proper door alignment and sealing. It replaces worn or damaged upper hinge hardware to stop sagging or uneven door movement. What it does:

• Supports the top of the refrigerator door and provides the pivot point for opening and closing
• Restores proper door alignment and helps the door form a tight seal when closed
• Stops symptoms such as a sagging or tilted door, door rubbing, or uneven movement
• Durable metal/plastic construction resists wear from regular use

• One upper hinge assembly

• Unplug the appliance or disconnect power before starting work
• Support the door before removing the hinge to prevent it from falling
• Reuse any original screws/fasteners only if undamaged; replace damaged fasteners

This upper hinge assembly secures and guides the appliance door at the top, restoring correct door alignment and smooth opening. Replace a worn or damaged hinge to stop door sagging and improve sealing and operation. What it does:

• Supports the top of the door and keeps it aligned on the cabinet
• Allows the door to pivot smoothly during opening and closing
• Prevents or corrects door sag, rubbing, or uneven gaps that can affect sealing
• Stops grinding, squeaking, or binding caused by a damaged hinge

• One upper hinge assembly

• Unplug the appliance or disconnect power before starting work
• Support the door while removing and installing the hinge to prevent dropping or injury
• Use basic hand tools; follow the appliance service manual for torque and alignment steps

The Ice Dispenser Door Assembly is an OEM part for LG refrigerators. This assembly includes the door and the necessary components that control the opening and closing of the ice dispenser chute. It plays a vital role in maintaining the efficiency of the ice dispensing system by ensuring that the ice chute remains sealed when not in use, preventing warm air from entering the freezer compartment.

Causes of a bad ice dispenser door assembly can include wear and tear from frequent use, damage from ice buildup, or issues with the mechanical or electronic components that control the door.

Symptoms of a bad ice dispenser door assembly include:

• Ice dispenser door not opening or closing properly
• Frost or ice buildup around the ice chute
• Warm air leaking into the freezer, affecting its temperature
• The ice dispenser not functioning efficiently

This OEM LG part is also compatible with Sears/Kenmore.

This lever holder is the replacement mounting bracket that secures the door lever so the microwave door operates smoothly and reliably. It restores proper lever alignment to help the door latch and release as intended. What it does:

• Secures the door lever assembly so the door can latch and release properly
• Keeps the lever aligned to prevent binding, sticking, or loose movement
• Helps restore normal door operation and user access to the oven cavity
• Common symptom: door feels loose, lever moves freely, or door will not latch

• Disconnect power before beginning any repair to avoid shock or injury
• Remove the outer cabinet or door trim only as needed to access the lever area
• Handle door components and glass carefully to avoid damage or injury

This holder bracket replaces a damaged or missing mounting support. It secures an internal component so it stays aligned and stable, helping your appliance operate smoothly without looseness or rattling.

• Provides a rigid mounting point to hold a component or assembly in place
• Maintains alignment to reduce vibration, rubbing, and intermittent operation
• Restores support when the original bracket is cracked, warped, or missing
• Common symptoms include a loose/wobbly part, rattling noises, or visible broken tabs

• Disconnect power to the appliance before servicing
• Note the original bracket's orientation and transfer any clips or screws from the old part
• Use existing hardware and tighten fasteners evenly—do not overtighten
• Verify proper fit and alignment before restoring power

The Right Ice Door Spring is an OEM part for LG refrigerators. This part provides the necessary tension to ensure the ice door opens and closes smoothly, maintaining the seal to keep the ice compartment cold and efficient.

Causes of a bad ice door spring can include wear and tear over time, loss of tension due to repeated use, or physical damage from accidental mishandling.

Symptoms of a bad Right Ice Door Spring include:

• Ice door not staying closed
• Difficulty in opening or closing the ice door
• Unusual noises when the ice door operates
• Increased frost buildup around the ice compartment

This OEM LG part is also compatible with some Kenmore models.

The Dispenser Lever Retainer is an OEM part for LG refrigerators. This part secures the dispenser lever in place, this part ensures the smooth operation of the water and ice dispenser.

Causes of a bad Dispenser Lever Retainer can include normal wear and tear from repeated use, accidental damage, or deterioration of the material over time.

Symptoms of a bad Dispenser Lever Retainer include:

• The dispenser lever is loose or wobbly
• Difficulty in dispensing water or ice
• The lever does not return to its original position after use
• Unintended activation or difficulty in activating the dispenser

This OEM LG part is also compatible with some Kenmore models.

The Left Ice Door Spring is an OEM part for LG refrigerators. It is responsible for providing the necessary tension to ensure the ice door closes properly after dispensing ice. This spring helps maintain an airtight seal, preventing warm air from entering the ice compartment and ensuring efficient operation of the ice maker.

Over time, the ice door spring can become worn out, lose tension, or break due to repeated use or accidental damage. A faulty spring can result in the ice door not closing correctly, which can lead to issues with ice production and storage.

Symptoms of a bad left ice door spring include:

• The ice door not closing or sealing properly
• Warm air entering the ice compartment
• Excessive frost buildup around the ice dispenser
• The ice door feeling loose or not springing back into place

This OEM LG part is also compatible with Sears/Kenmore models.

This replacement funnel channels flow cleanly through the dispenser/fill area, guiding it into the correct passage to help prevent spills, drips, and messes when the original piece is cracked, warped, or missing.

• Guides flow into the correct passage within the dispenser or fill area
• Helps reduce drips, leaks, and misdirected flow caused by damage or wear
• Restores clean, accurate dispensing and a tidy appearance
• Common symptoms include leaking/dripping at the dispenser, misdirected stream, visible cracks, or a loose/missing funnel

• Disconnect power; shut off water supply if applicable
• Remove surrounding trim or fasteners carefully and retain hardware for reuse
• Clean the mounting area before installing the new funnel
• Ensure tabs/locks fully seat; secure fit before restoring power and water

The Ice Dispenser Door Lever is an OEM part for LG refrigerators. This part is responsible for operating the ice dispenser door, allowing ice to be dispensed from the ice maker when the lever is pressed.

Causes of a bad part can include mechanical wear and tear from repeated use, physical damage or impact, or issues with the internal mechanisms that control the lever's motion.

Symptoms of a bad Ice Dispenser Door Lever include:

• Failure of the ice dispenser door to open when the lever is pressed
• The door opening erratically or becoming stuck
• Difficulty in dispensing ice due to the improper operation of the door

This OEM LG part is also compatible with some Kenmore models.

This is the replacement display cover for the control panel. It protects the user interface and display from wear and moisture while restoring a clean, finished look—ideal when the original cover is cracked, yellowed, or missing.

• Shields the UI and display window from dust, splashes, and light impacts
• Provides the finished face for buttons/touch areas and helps maintain proper alignment
• Restores the console's appearance and readability
• Common signs it's needed: cracked lens, broken tabs, loose/missing cover, fogging, or a display that's hard to read

• Disconnect power to the appliance before servicing
• Remove console/trim screws or clips and carefully separate the old cover
• Transfer any decals, light pipes, or seals from the original if applicable
• Seat the new cover and secure with existing hardware; verify button feel and display visibility

This display cover assembly is the outer bezel for the appliance's user interface. It protects the display and buttons, keeps the controls aligned, and refreshes the appearance when the original cover is cracked, loose, or damaged.

• Houses and aligns the user interface display and buttons on the control panel
• Shields internal components from dust and minor splashes
• Restores a secure fit and clean, finished look
• Typical symptoms: cracked or broken bezel, missing/broken tabs, loose fit, sticking or misaligned buttons

• Disconnect power to the appliance before servicing
• Use a non-marring pry tool to release retaining tabs; remove any mounting screws as needed
• Transfer any trim pieces, light guides, gaskets, or brackets from the old cover to the new assembly
• Support wiring and the display board during removal/installation to avoid damage

The Ice Dispenser Button is an OEM part for LG refrigerators. It is a part of the refrigerator's ice dispensing system, enabling users to easily select and dispense ice with the press of a button.

Over time, the ice dispenser button can experience wear and tear from regular use, or it may become unresponsive due to electrical issues or physical damage such as cracking or breaking.

Symptoms of a bad Ice Dispenser Button include:

• The button not responding or requiring extra force to activate
• Ice not dispensing when the button is pressed
• The button sticking in the pressed position
• Visible damage or wear to the button

This OEM LG part is also compatible with Sears/Kenmore.

The Dispenser Cover is an OEM part for LG refrigerators. It covers and protects the dispenser area where water and ice are dispensed, ensuring the components remain clean and functional.

Over time, the dispenser cover can become damaged due to repeated use, exposure to moisture, or accidental impact. A compromised cover can affect the appearance of the refrigerator and lead to difficulties in using the dispenser.

Symptoms of a bad Dispenser Cover include:

• Cracks or breaks in the cover
• Difficulty in operating the dispenser
• Water or ice leaking from the dispenser area

This OEM LG part is also compatible with Sears/Kenmore.

Note: This is just the cover and does not include any other components. For the entire assembly, order part number ACQ85430239.

The Water Dispenser Button is an OEM part for LG refrigerators. This part allows users to easily dispense water with a simple press. It's directly connected to the electronic control system of the refrigerator, ensuring that when pressed, it signals the refrigerator to activate the water dispenser.

Causes of damage to the Water Dispenser Button often involve repeated use, which can wear down the mechanical components, or impact damage from objects hitting the button.

Symptoms of a bad Water Dispenser Button include:

• The button sticking or failing to spring back after being pressed.
• No water being dispensed when the button is pressed, indicating a possible fault in the signal transmission to the control system.
• The button feeling loose or falling off, suggesting that the mounting or connecting components may be damaged.

This OEM LG part is also compatible with some Kenmore models.

The Dispenser Drip Tray is an OEM part for LG refrigerators. Positioned discreetly below the dispenser spouts, this drip tray collects any accidental overflow or spills from beverage containers.

Causes may involve cracking or deformation of plastic over extended use. Mineral scale marks or stains are also common.

Symptoms of a bad dispenser drip tray include:

• Puddles or stains around the base of the dispenser unit
• Overflow running inside the refrigerator cabinet
• Odors developing from residual liquids near warm compressor

This OEM LG part is also compatible with some Kenmore models.

NOTE: This part also requires software update kit CJT30000002. DO NOT INSTALL WITHOUT UPDATING SOFTWARE. Call for more information.

The Compressor is an OEM part for LG refrigerators. As the primary component that circulates refrigerant to chill the refrigerator and freezer compartments, it is crucial for proper cooling operation. The compressor works with the condenser fan and evaporator coil to regulate temperatures inside the refrigerator.

Causes of a faulty compressor can include gradual breakdown of motor windings, loss of refrigerant pressure over time, or failure of electrical components vital to operation.

Symptoms of a bad compressor are:

• Elevated fridge/freezer temperatures unable to be maintained
• Frost patterns indicating poor or insufficient cooling
• Abnormal vibrations or sounds upon compressor cycling
• Error codes displayed regarding cooling performance

It is also compatible with Sears/Kenmore refrigerator models.


This evaporator assembly circulates refrigerant to absorb heat from the refrigerator/freezer compartment so your appliance can maintain cold temperatures. It restores the core cooling surface that removes heat and supports frost control. What it does:

• Provides the evaporator coil surface where refrigerant absorbs heat from the cabinet air
• Works with the evaporator fan and defrost system to maintain proper cooling and help prevent excessive frost buildup
• Commonly used when the evaporator is corroded, leaking, or severely iced-over and no longer cooling effectively
• Supports overall system cooling performance

• One evaporator assembly

• Disconnect power before starting any repair to avoid shock or injury
• Allow the system to fully defrost and dry before removing or replacing the assembly
• Inspect surrounding insulation, gaskets, and mounting hardware and replace if damaged

This evaporator assembly replaces the freezer evaporator coil and housing to restore proper cold-air circulation and frost control in the freezer compartment. It helps re-establish normal cooling and defrost performance when the evaporator is damaged or leaking. What it does:

• Contains the evaporator coil and housing that absorb heat from the freezer compartment
• Enables proper airflow and heat transfer for consistent freezer temperatures
• Restores defrost cycle effectiveness when a cracked or corroded evaporator causes frost build-up
• Addresses symptoms like excessive frost/ice on the coil, reduced cooling, or water leaking inside the freezer

• Disconnect power to the appliance before starting any repair; follow manufacturer safety instructions
• Replacement typically requires removing interior liners and thawing any ice; handle fins and tubing carefully to avoid damage
• Use proper sealing/insulation when reinstalling the housing to prevent air leaks and frost issues

The Thermistor Assembly, PTC is an OEM part for LG refrigerators. Located within refrigerator compartments, the thermistor monitors interior temperatures sending signals to the control board. It contains a temperature-sensitive resistor to provide precise feedback on cooling needs. This feedback allows the refrigeration system to maintain consistent temperatures across all food storage areas.

The causes of thermistor issues arise from normal component degradation, impacts, water damage, and manufacturing defects affecting sensor accuracy.

Symptoms of a bad Thermistor Assembly include:

• Fluctuating or inaccurate temperature readings
• Compartments failing to maintain proper cooling levels
• Frost or condensation builds up inside
• Repeated Auto Defrost error messages

This genuine LG replacement preserves dependable monitoring for balanced refrigeration control. Keeping food fresher longer and suitable for Sears/Kenmore refrigerators with LG components.

The Overload Compressor is an OEM part for LG refrigerators. This part protects the refrigerator's compressor from overheating and potential damage by acting as a safety device. It works by monitoring the compressor's electrical current and temperature. If the compressor operates under conditions that could lead to overheating or overcurrent, the overload protector will cut off the power to the compressor, allowing it to cool down before potentially restarting.

Causes of damage to the Overload Compressor can include power surges, electrical faults within the refrigerator, or a malfunctioning compressor that requires more current than usual to operate.

Symptoms of a bad Overload Compressor include:

• The refrigerator not cooling properly or not cooling at all
• The compressor failing to start, indicated by a clicking sound coming from the back of the refrigerator where the compressor is located.
• The refrigerator or freezer section warming up

This OEM LG part is also compatible with some Kenmore models.

This compressor damper is a vibration-isolating mount that sits between the sealed-system compressor and the chassis. It cushions the compressor to reduce noise, limit vibration transfer, and help keep refrigerant lines from being stressed.

• Isolates the compressor from the frame to absorb start/stop shock and vibration
• Helps reduce humming, rattling, or buzzing from the back/bottom of the appliance
• Replaces a damper that's cracked, flattened, hardened, or missing
• Can help if the compressor rocks or the unit vibrates excessively

• Disconnect power and pull the unit forward for access; remove rear/service panel if present
• Support the compressor to relieve load on the mounts before removing fasteners
• Match orientation; transfer any sleeves/spacers from the old damper to the new one
• Ensure the compressor sits level and that tubing is not strained before restoring power

This drip tray catches and channels water runoff inside the appliance to help prevent pooling and minor leaks. It's a direct-fit replacement listed by the manufacturer and sold as the single tray used in the unit. What it does

• Collects condensate or defrost water and directs it to the drain area to prevent pooling.
• Helps stop water from dripping onto lower drawers, shelves or the floor.
• Commonly replaces a cracked, warped or missing tray that causes visible leaks or water buildup.
• Fits into the appliance's lower compartment where the original tray sat.

• Unplug the appliance or disconnect power before servicing.
• Remove any obstructing drawers or shelves to access the tray location; handle glass shelves carefully.
• Lift out the old tray and set the new tray into the same position; no special tools typically required.

Replacement fan guide that directs airflow from the refrigerator fan to improve cooling distribution and help keep the fan blade clear of nearby components. Restores proper airflow and can reduce rubbing or scraping noises. What it does:

• Channels airflow from the fan to promote even temperatures throughout the compartment.
• Keeps the fan blade aligned and away from cabinet walls and other components.
• Commonly replaced when cracked, warped, or broken parts cause rubbing or unusual fan noise.
• Helps maintain efficient cooling by restoring the intended airflow path.

• Disconnect power (unplug or shut off breaker) before servicing the appliance.
• Access typically requires removing the interior cover or rear evaporator cover.
• Handle the plastic guide carefully to avoid cracking; align mounting tabs and secure using the original fasteners.
• Inspect the fan blade and motor for damage while replacing the guide; replace any damaged components to avoid repeat issues.

This cover assembly protects the machine components and helps keep internal machinery free of debris and accessible for repair. It provides a durable barrier that helps extend component life and maintains safe operation. What it does:

• Shields motors, belts and internal linkages from dust and lint that can cause wear
• Helps contain moving parts to reduce pinch or contact hazards during normal use
• Maintains proper component alignment by providing a stable mounting surface
• Commonly replaced when cracked, warped, missing fasteners, or damaged from impact

• One cover assembly as shown

• Disconnect power before attempting service
• Handle gently to avoid cracking plastic tabs; inspect mounting clips and screws for damage
• Reuse original fasteners only if undamaged; replace any stripped screws or broken clips

This small stopper installs in the refrigerator to limit the travel of a moving component and keep it securely in place. Replacing a broken or missing stopper prevents over-extension and helps maintain smooth, aligned operation.

• Limits the range of motion for a door, bin, or drawer to prevent over-opening or accidental removal
• Helps keep interior components aligned and operating smoothly
• Replace if cracked, missing, or deformed
• Common symptoms: drawer or bin slides out too far, door swings past normal range, or a broken plastic stop is found

• Disconnect power before servicing; remove or support the affected bin/drawer/door
• Note the old stopper's orientation and location before removal
• Transfer and reuse any original screws or clips if applicable
• Snap or fasten the new stopper in place and test for smooth movement

A small retaining pin used to secure moving parts and keep components aligned for smooth operation. Replacing a worn or broken common pin can stop rattling and restore proper fit between linked parts. What it does:

• Holds or aligns two parts together so they move correctly and stay in position
• Helps prevent rattling, looseness, or parts slipping out of place
• Works as a simple mechanical fastener—no electronics involved

• One common pin

• Disconnect power to the appliance before beginning any service
• Keep track of small parts; lay out components in order to aid reassembly
• May require removal of trim or a hinge/retainer to access the pin—use basic hand tools
• If the pin is difficult to seat, do not force; inspect mating parts for damage

This cabinet roller supports the refrigerator and lets the unit roll in and out of place for cleaning or service. Replace a worn or broken roller to restore smooth movement and help keep the appliance properly positioned.

• Supports the base of the refrigerator and enables rolling movement
• Helps with safe positioning and service access without dragging
• Common failure signs: appliance is hard to move, scraping or rolling noises, a flat-spotted/cracked wheel, or a wheel that won't turn
• Replace when the roller is damaged, seized, or missing

• Disconnect power and shut off water supply; protect flooring before moving the appliance
• With help, pull the refrigerator forward and safely support it to access the roller
• Remove mounting fasteners, install the new roller, and reuse original hardware
• Confirm level and smooth movement before returning the unit to its location

The Drier Assembly is an OEM part for LG refrigerators. This part is responsible for removing moisture and contaminants from the refrigerant. This ensures that the refrigerant circulates effectively and efficiently, preventing damage to other components and maintaining the refrigerator's cooling performance.

Causes of a bad Drier Assembly can include contamination from moisture entering the refrigerant lines, blockages from debris or particulates, and general wear and tear over time that reduces its effectiveness.

Symptoms of a bad Drier Assembly include:

• Reduced cooling efficiency or warm refrigerator temperatures
• Unusual noises from the refrigeration system
• The compressor running continuously or cycling frequently
• Frost buildup on the evaporator coils due to improper refrigerant flow

This OEM LG part is also compatible with Sears/Kenmore models.

This holder is a small mounting bracket used to secure internal components in place, helping keep parts aligned and stable for reliable operation. It provides a direct, OEM-compatible replacement to restore proper fit and function. What it does

• Secures and supports nearby components to prevent shifting or vibration.
• Restores proper alignment where a worn or broken holder causes rattling or loose parts.
• Helps maintain normal operation by keeping assemblies seated correctly.
• Works behind panels or inside assemblies where a dedicated bracket is required.

• One holder/mounting bracket as shown.

• Installation generally requires removing the panel or access cover where the holder is located.
• Use proper fasteners shown in your appliance; replace any damaged screws or clips as needed.
• Disconnect power before servicing electrical appliances to reduce shock risk.

The Fan Assembly is an OEM part for LG refrigerators. It is responsible for circulating air within the refrigerator and freezer compartments, ensuring consistent cooling and optimal temperature distribution. The fan assembly helps maintain the freshness of your food by evenly distributing cold air.

Common causes of a bad fan assembly include electrical issues, worn-out bearings, or obstructions that prevent the fan from spinning properly.

Symptoms of a bad fan assembly include:

• Unusual noises coming from the refrigerator
• Inconsistent temperatures within the fridge or freezer
• Frost buildup in the freezer
• Refrigerator running continuously or not cooling effectively

This OEM LG part is also compatible with Sears/Kenmore models.

The SWITCH, MAGNET is an OEM part for LG refrigerators. It is a switch designed to function in conjunction with the magnetic door seal, indicating to the refrigerator when the door is open or closed. This allows the refrigerator to regulate temperatures properly based on door positioning.

Symptoms of a bad switch, magnet can include:

•  Temperature control issues, with the fridge struggling to maintain proper coolness levels
•  The fridge fails to switch to energy-saving modes when the door is closed
•  Lights not turning on or off correctly when the door is opened or closed

Replace yours today with this genuine OEM LG part to ensure consistent and reliable temperature control. This OEM LG part is also compatible with Sears/Kenmore.

The Dispenser Switch is an OEM part for LG refrigerators. It is responsible for controlling the operation of the dispenser, allowing you to dispense water or ice from the refrigerator door. This switch is located in the dispenser house and activates the dispenser when pressed.

Causes of a bad dispenser switch can include wear and tear over time, electrical malfunctions, or damage due to accidental mishandling or impact.

Symptoms of a bad dispenser switch include:

• Inability to dispense water or ice when pressing the buttons.
• The dispenser works intermittently.
• No response or delayed response when pressing the dispenser buttons.

This LG part can also be used on Kenmore/Sears appliances.
