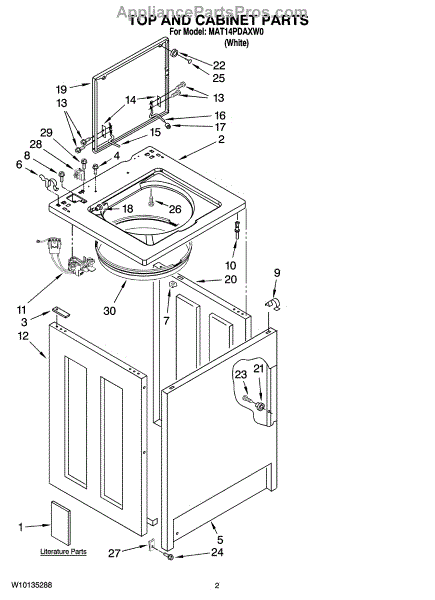

Parts for Whirlpool MAT14PDAXW0: 01 - Top And Cabinet Parts

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.

Size: 10-24 x 3/8 inch.

Used to lock washer cabinet to rear wall of washer.

This cage nut has 5/16-18 threads and clips into a panel or frame opening to create a durable, replaceable threaded anchor. It restores a solid mounting point so screws can securely fasten panels, brackets, or hardware.

• Provides a 5/16-18 threaded anchor in thin sheet metal or chassis openings
• Secures panels, brackets, and components where factory threads are not possible or have stripped
• Helps eliminate looseness, rattling, or misalignment when a mounting point fails
• Symptoms of a failed/missing cage nut include a screw that won't tighten or hold, loose panels, and vibration noises

• Disconnect power and allow moving parts to stop before servicing
• Remove the screw and old cage nut; compress the new nut's tabs and snap it fully into the opening
• Align threads and start the screw by hand to avoid cross-threading
• Tighten the screw until snug; do not overtighten into sheet metal

The Top Lock is an OEM component for Whirlpool electric and gas dryers. It secures the outer metal cabinet door during drying cycles for safety and ventilation. This lock provides a method for releasing and latching the door tightly when shut.

Symptoms of a failing top lock may include:

• Inability to fully close or properly latch the dryer door
• Accidental opening from deficient locking during operation
• Difficulty manipulating the lock due to worn or broken parts

Causes related to normal wear of moving parts through frequent use over several years. Deformation from excessive exterior impacts could also damage locking mechanisms.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This lid switch is the washer's safety interlock. It detects when the lid is closed so the machine can agitate and spin, and cuts power when the lid is opened to stop operation and enhance user safety.

• Monitors lid position and allows agitation/spin only when the lid is closed
• Interrupts motor operation if the lid opens during a cycle
• Common failure symptoms: washer won't start or spin, fills but stalls, stops intermittently, or displays "lid open" alerts
• Restores proper cycle progression and safety shutoff when replaced

• Disconnect power and water supply before servicing
• Access the switch from under the top panel/console per your model's procedure
• Release the old switch, move the harness to the new switch, and secure wiring away from moving parts
• Ensure the lid closes and actuates the switch before reassembly and test run

The Washer Lid Screw is an OEM part for Whirlpool washing machines. This 6-32 x .340 screw secures the washer lid to the hinge assembly, ensuring the lid opens and closes smoothly and stays securely in place during operation.

Causes of a bad washer lid screw can include wear and tear from frequent use, corrosion due to exposure to moisture, or damage from over-tightening or mishandling. A compromised screw can lead to issues with the lid's stability and functionality.

Symptoms of a bad washer lid screw include:

• The washer lid feeling loose or wobbling
• Difficulty in opening or closing the lid
• Visible rust or corrosion on the screw
• The lid not staying securely in place

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This lid hinge pad fits between the washer lid hinge and the cabinet. It cushions the joint to reduce squeaks and metal wear, helping keep the lid aligned and operating smoothly.

• Provides a protective wear surface between the hinge and cabinet/lid
• Reduces squeaks, creaks, and rattling when opening or closing the lid
• Helps maintain proper lid alignment and smooth movement
• Common signs it's worn or missing: squeaking lid, rubbing/scuff marks at the hinge, loose or wobbly lid

• Disconnect power to the washer before servicing
• Support the lid to relieve hinge tension and access the hinge area per your model
• Remove the worn pad and press the new pad fully into the hinge location
• Test lid operation; inspect the opposite hinge and replace its pad as needed if your model uses two

This left-side lid hinge replaces a worn or broken hinge to restore proper lid alignment and smooth opening on top-load washers. It helps keep the lid secure and operating safely for normal use. What it does:

• Supports and guides the washer lid on the left side for correct alignment
• Restores smooth opening and closing action when the original hinge is bent or worn
• Helps prevent the lid from sagging, sticking, or catching during use
• Reduces noise caused by loose or damaged hinge components

• Disconnect power and water supply before beginning any repair; dry area thoroughly.
• Remove the lid and follow the washer's service manual for hinge removal and replacement.
• Use proper tools and handle parts carefully to avoid scratching the cabinet or lid.
• Support the lid during installation to prevent it from dropping.

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.

Right hand side. For screws use WPW10119828.

The lid hinge bearing is used for the lid hinges on washers and dryers. When functioning properly, it allows the lid to open and close properly. If this is a problem with the bearing, it could make the lid difficult to move. In some cases, when the lid will not close, it means that the machine will not function correctly. Damaged lid hinge bearings should be replaced as soon as possible.The lid hinge bearings see a lot of work since they are in use whenever the lid of the washer or dryer opens and closes. They could become cracked and broken over time. Replacing the bearings is a relatively simple repair that owners can make on their own.This lid hinge bearing is for use with many models of washers and dryers from Whirlpool, KitchenAid, Roper, Estate, Inglis, Maytag, Admiral, Amana, Crosley, and Magic Chef. This is a genuine OEM replacement part that has been sourced from the manufacturer. The piece is sold individually, so if owners need to replace more than one hinge, they will need to buy multiples.

Quantity of ONE. Size: 8-18 x 5/8 inch. (#8 screw, 18 threads per inch, 5/8 inch long)

Part# is one rivet.

This U-type nut clips over a sheet-metal edge to create a durable threaded anchor for a screw. It helps secure panels, trim, and brackets so fasteners hold tight and components stay aligned and rattle-free. What it does:

• Clips onto thin sheet metal to provide captive threads where a standard nut cannot be used
• Holds screws securely to fasten panels, trim pieces, or mounting brackets
• Addresses issues like loose panels, missing/broken clips, or screws that will not tighten
• Helps reduce vibration and rattling from unsecured components

• 1 U-type nut

• Disconnect power and shut off gas/water before servicing
• Position the U-nut over the panel edge with the threaded side aligned to the hole
• Start the screw by hand to avoid cross-threading; tighten snugly without overtightening
• Replace any damaged or corroded hardware to ensure a secure hold

Control transformer that provides stable low-voltage power to the washer's control and user interface, ensuring reliable electrical signaling so cycles start and the machine operates correctly. What it does:

• Supplies the control board and user controls with the required control voltage.
• Restores power to displays, timers, and electronic controls when the transformer has failed.
• Common symptom: machine is dead, display is blank, or cycles won't start.
• Can cause intermittent power or control glitches before full failure.

• Disconnect power before servicing to avoid shock—follow lockout/tagout if required.
• Compare part number and mounting style to the original before installation.
• Handle terminals and wiring carefully; secure all connections and mounting hardware.

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This splash shield assembly directs and contains water inside the dishwasher tub to help protect the door area and nearby components from spray and moisture. It restores the tub's splash protection to reduce leaks and water damage risk. What it does:

• Channels spray and splashes away from the door edge and console area to help prevent moisture intrusion.
• Helps reduce leaks and water pooling around the dishwasher base or adjacent cabinetry.
• Protects wiring and electronic components from direct water exposure.
• Restores intended water containment after a damaged or missing shield.

• Disconnect power and water supply before beginning work.
• Handle gently and watch for sharp edges; wear gloves as needed.
• May require removal of the dishwasher door or access panel to reach mounting points; follow the OEM service instructions.

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.
