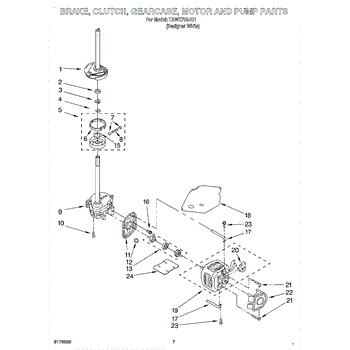

Parts for Estate TAWX700JQ1: 04 - Brake, Clutch, Gearcase, Motor And Pump Parts

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.

The Basket Drive is an OEM replacement part for Whirlpool washers. The basket drive is responsible for rotating the wash basket during the cycle.

Common causes of a bad basket drive include regular wear and tear, mechanical failures, or damage from overloading the washer. These issues can prevent the washer drum from spinning or agitating properly.

Symptoms of a bad basket drive can include:

• The washer fails to agitate or spin clothes properly
• Strange noises are heard coming from the drive area
• The basket no longer rotates smoothly
• Excessive vibration is noticed

This genuine Whirlpool OEM replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Spin Tube Thrust Washer is an OEM component for Whirlpool washing machines. It is a washer that fits around the agitator shaft and helps create a seal between the agitator shaft and the aluminum tub. This washer allows the agitator to spin freely during the wash and spin cycles without causing excessive vibration or noise.

Symptoms of a bad spin tube thrust washer include:

• Noises like banging or clunking coming from the agitator area
• Shaking or vibrating of the washer tub during spinning

Causes of a bad thrust washer include normal wear and tear after extended use. Exposure to extended periods of unbalanced loads can also put excessive strain on the washer components and lead to premature failure of the thrust washer seal.

This replacement part is also compatible with select Kenmore, Maytag, KitchenAid, and Jenn-Air models.

The Clutch Retaining Clip is an OEM part for Whirlpool washing machines. This clip secures the clutch assembly, which is essential for the proper engagement and operation of the washer's transmission.

Causes of a bad retaining clip can include repeated mechanical stress, corrosion, or accidental damage during maintenance or repair.

Symptoms of a bad retaining clip include:

• Washer not spinning or agitating properly
• Unusual noises during operation
• Excessive vibrations or movement
• Washer failing to complete cycles correctly

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This retainer ring is a genuine OEM replacement part sourced directly from the manufacturer for use on front load washing machines to hold the boot seal in place. The boot seal is the gasket that seals the washing machine when the door is closed to prevent water from leaking. The retainer ring is located flush against the boot seal and has either a spring clamp or screw clamp that secures it. Over time, this ring may become damaged due to the washing machine's normal use and age. If the ring is not tight, the washing machine could leak when in use. If water is coming from the door, it is a good idea to inspect and replace the retainer ring and possibly the boot as well.Unplug the washing machine to prevent electrocution. Remove the front panel, the detergent dispenser, and the kickplate to access the retainer ring. Locate the clamp on the ring and loosen it. Remove the retainer ring and set it to the side. Inspect the boot and then install the new retainer ring. Tighten the clamp and reassemble the washing machine. This retainer ring is sold as an individual unit. It is designed specifically for washing machines manufactured by Whirlpool.

The Clutch Assembly is an OEM replacement part for Whirlpool washing machines. It is a component that is responsible for transferring power from the motor to the transmission, allowing the washer tub to spin during the wash and spin cycles.

Symptoms of a bad Clutch Assembly include:

• The washer tub not spinning or agitating during the wash or spin cycles
• Loud grinding or screeching noises coming from the washer
• Excessive vibrations or shaking during the spin cycle
• The washer failing to start or complete the wash or spin cycles properly

Causes of needing to replace the clutch assembly can include normal wear and tear over time, bearing failure, or physical damage due to impact or overloading.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore washer models.

The Clutch Band and Lining Kit is an OEM part for Whirlpool washing machines. It contains the clutch band and clutch lining components essential for proper transmission of power from the washer motor to its drum during the spin cycle. The clutch band and lining allow for a controlled amount of slippage to safely extract water from clothes without damage.

Symptoms of a bad clutch band and lining include:

• Excessive noise or vibration during spin
• Slow or ineffective spinning
• The drum failing to spin or “locking up”
• Premature wear of other transmission parts

Over time and with heavy use, these components can wear down. If slipping or damage is detected, it’s important to replace the kit to avoid potential transmission repairs.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This clutch spring cap retains and protects the clutch spring in your washer's drive/clutch assembly, maintaining proper tension. Replacing a worn or missing cap helps the clutch engage smoothly and reduces slipping and noise during spin.

• Secures the clutch spring within the clutch assembly to prevent movement or dislodging
• Maintains correct spring preload for consistent clutch engagement
• Can help reduce clutch slip that appears as weak/no spin, slow spin ramp-up, or intermittent spinning
• Common signs of trouble: rattling or scraping near the drive, burning smell, or a visibly damaged/missing cap

• Unplug the appliance and shut off water before servicing
• Access the clutch per your model's service procedure; removing the gearcase/transmission and clutch may be required
• Carefully relieve spring tension and note the orientation of the spring and cap before removal
• Inspect the spring, clutch lining, and related hardware; replace any worn components during reassembly

This spring damper assembly cushions and stabilizes the appliance drum during spin cycles, reducing vibration and helping maintain smooth, balanced operation. It restores proper drum support and motion control for safer, quieter performance. What it does:

• Absorbs and dampens drum movement to reduce vibration and banging during spin
• Helps keep the drum properly aligned to prevent wobbling or rubbing
• Can resolve symptoms such as loud thumping, excessive vibration, or uneven spinning
• Works as the suspension support between the drum and cabinet to improve cycle stability

• Disconnect power (and water, if applicable) before beginning any repair
• Handle springs and mounting points carefully—springs are under tension and can snap if released improperly
• Installation may require partial disassembly of the cabinet or drum; follow the OEM service manual or instructions

The Transmission is an OEM part for Whirlpool washing machines. This integral component is at the heart of the washing machine's operation, translating the motor's power into action by driving the agitator and spinning the drum.

Regular inspection and maintenance can prolong the life of the transmission, but if these symptoms occur, it may be time to replace this critical component.

Symptoms of a bad Transmission include:

• The washing machine making unusual noises during the wash or spin cycles, such as grinding or whining sounds.
• The washer failing to agitate properly, affecting the cleanliness of the laundry.
• The drum not spinning during the spin cycle, leaving clothes wetter than usual.
• Leakage of transmission fluid beneath the washing machine.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This anti-rattle screw secures panels or brackets to prevent vibration noise in compatible appliances. Replacing a missing or stripped screw restores a tight fit and helps keep the cabinet and assemblies stable and quiet.

• Secures brackets, ducts, or panels to reduce buzzing and rattling during operation
• Replaces a lost, worn, or damaged anti-rattle fastener
• Helps maintain proper alignment and prevents vibration-related wear
• Typical symptoms include persistent rattling, a loose panel, or hardware found inside the cabinet

• Disconnect power before servicing; for gas appliances, shut off the gas supply
• Access the mounting point and remove the loose or damaged screw
• Start the new screw by hand to avoid cross-threading; tighten snugly without overtightening
• Repair or replace the bracket/clip before reassembly

Motor mount to gear case.

Rubber grommet for motor mount stud.

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.

The Direct Drive Washer Motor Coupling is an OEM replacement part for Whirlpool washers. It is responsible for connecting the motor to the transmission, allowing the washer to agitate and spin the clothes during the wash and spin cycles.

A bad motor coupling can be caused by prolonged use, heavy loads, or overloading the washer. It can also wear out or break over time due to normal usage.

Symptoms of a bad motor coupling include:

• The washer not agitating or spinning.
• Unusual noises, such as grinding or rattling, during operation.
• The motor running but the drum not moving.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This anti-rattle clip adds light spring tension to keep a small component snug and quiet during operation. Replacing a bent or missing clip helps reduce vibration noise and maintains a secure fit of the attached part.

• Applies tension to prevent rattling and buzzing during use
• Helps keep the mounted piece properly seated and aligned
• Common symptoms of failure: audible rattle, loose/wobbly component, missing or deformed clip
• Simple, drop-in replacement where the original clip is used

• Disconnect power to the appliance before servicing
• Note the original clip's orientation; transfer the new clip the same way
• Use needle-nose pliers for placement; avoid over-bending the clip
• The component is secure and clears adjacent parts before reassembly

This anti-rattle screw secures panels or brackets to prevent vibration noise in compatible appliances. Replacing a missing or stripped screw restores a tight fit and helps keep the cabinet and assemblies stable and quiet.

• Secures brackets, ducts, or panels to reduce buzzing and rattling during operation
• Replaces a lost, worn, or damaged anti-rattle fastener
• Helps maintain proper alignment and prevents vibration-related wear
• Typical symptoms include persistent rattling, a loose panel, or hardware found inside the cabinet

• Disconnect power before servicing; for gas appliances, shut off the gas supply
• Access the mounting point and remove the loose or damaged screw
• Start the new screw by hand to avoid cross-threading; tighten snugly without overtightening
• Repair or replace the bracket/clip before reassembly

This motor retainer secures the motor to its mounting point, keeping the assembly tight and aligned. Replace a worn or broken retainer to cut vibration and noise and to protect nearby seals, wiring, and components. What it does:

• Holds the motor firmly in place within the assembly
• Maintains alignment for smooth, quiet operation
• Supports sealing surfaces and connections; on water-bearing assemblies, help prevent leaks
• Replace if you notice a loose or rattling motor, new vibration/noise, or signs of movement or leakage at the motor

• Includes 1 motor retainer.

• Disconnect power; turn off water supply.
• Access the motor area and support the motor before removing the old retainer.
• Inspect mating parts and seals; replace any damaged components.
• Fully seat the motor and install the new retainer securely; test for abnormal noise or leaks.

This motor shield protects and secures the appliance motor assembly, helping block debris and contact with nearby components so the motor can run reliably. It's a direct-fit replacement for a damaged or missing motor shield. What it does

• Shields the motor from debris and foreign objects that can cause rubbing or obstruction.
• Helps secure and position the motor within the cabinet to maintain proper alignment.
• Reduces risk of contact between the motor and other parts that can cause noise or wear.
• Replacing a cracked or missing shield can prevent recurring motor issues and reduce abnormal sounds.

• Disconnect power to the appliance before beginning any repair.
• Use basic hand tools; avoid forcing fasteners or damaging adjacent components.
• Wear gloves to protect against sharp edges on the shield or mounting area.

Note: The manufacturer no longer includes the motor shield WP3946532 mentioned in the video. If needed, order it separately.

The Direct Drive Washer Motor is an OEM part for Whirlpool washing machines This motor drives the agitation, spinning, and draining processes during the laundry cycles, ensuring clothes come out clean and well spun.

Causes of a bad Direct Drive Washer Motor can range from wear and tear over time, overheating due to overloading or obstructed movement, and electrical failures like short circuits or blown capacitors.

Symptoms of a failing Direct Drive Washer Motor include:

• The washing machine not agitating or spinning correctly
• A noticeable decline in the washer's performance
• Unusual noises, such as humming or buzzing, indicating the motor is struggling

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Installation instructions included.

The Retainer Clip is an OEM replacement part for Whirlpool direct drive washing machines.

Causes of a bad retainer clip can include wear and fatigue from continuous vibration over many wash cycles. Cracks or breaks in the plastic material may develop as well.

Symptoms of a bad Retainer Clip include:

• Water leaks detected around the pump area inside machine cabinet
• Loosening of hoses or tubes interrupting proper drainage flow
• Potential pump component detachment from disconnected lines
• Damage to neighboring components submerged by leaked water

The OEM Whirlpool part is also compatible with Maytag, Jenn-Air, and select Kenmore models.

The Direct Drive Washer Pump is an OEM part for Whirlpool washing machines. It is responsible for pumping water out of the washer during the drain cycle, ensuring that the washing machine drains efficiently after each wash.

Causes of a bad direct drive washer pump can include blockages from debris or foreign objects, wear and tear from regular use, damage to the pump impeller, or electrical issues affecting the pump motor. Over time, these factors can hinder the pump's performance, leading to operational issues.

Symptoms of a bad direct drive washer pump include:

• Washer not draining water properly
• Unusual noises during the drain cycle, such as grinding or humming
• Water leaks from the bottom of the washer
• Washing machine stopping mid-cycle due to drainage issues

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Related item: Motor coupling 285753A.

Size: 10-16 x 5/8 inch.

This motor shield covers the drive motor on top-load washers to deflect splashes, lint, and debris away from the motor and wiring. Replace a cracked or missing shield to help protect the motor assembly at the base of the machine. What it does:

• Covers the washer's drive motor to deflect incidental water and debris
• Helps protect motor windings and terminals from splashes
• Replaces a cracked, warped, or missing cover
• Common signs: visible damage, rattling from the base, or corrosion/debris buildup around the motor

• 1 motor shield

• Unplug the appliance and turn off water supply before servicing
• Access the motor area from the bottom of the cabinet; note the shield's orientation
• Remove the damaged shield and install the new shield fully seated, reusing existing fasteners/clips
• Confirm clearance from moving parts before restoring power and testing
