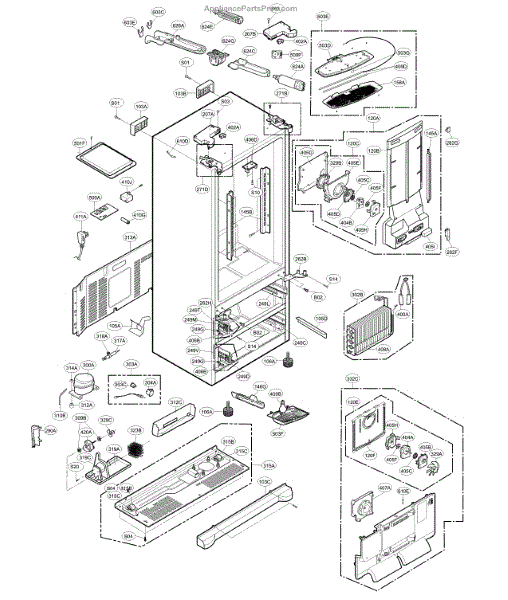

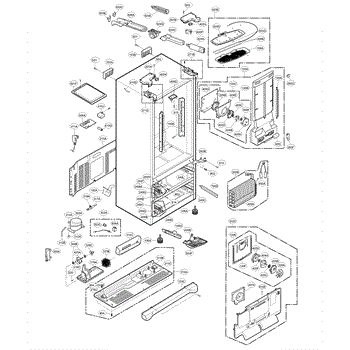

Parts for Kenmore Elite 79571073014: Case Parts

This replacement customized screw secures internal panels and components to restore proper fit and reduce movement. A small but essential fastener for repairs that stop rattling and prevent loose parts from causing damage. What it does:

• Fastens panels, brackets, or trim so parts stay aligned and stable
• Stops vibration-related noise caused by loose fasteners
• Helps prevent parts from shifting or falling during operation
• Replaces stripped or missing screws to restore proper assembly

• Disconnect power before servicing the appliance to avoid shock or injury
• Use the correct screwdriver or driver bit to prevent stripping the head
• Tighten until snug—do not overtighten, which can strip threads or crack components
• Inspect mating threads and replace if damaged; replace only with the exact OEM screw

A general-purpose replacement bolt used to secure appliance components and fasten panels. Restores proper fit and helps eliminate movement caused by loose or missing hardware for safer, quieter operation. What it does:

• Fastens panels, brackets, and assemblies to keep parts aligned and secure
• Stops rattling, vibration noise, and loose or shifting components
• Replaces corroded, stripped, or missing bolts that can cause misalignment
• Works where the OEM lists a generic "bolt" or common fastener

• Disconnect power and unplug the appliance before starting any repair
• Use the correct driver or socket to avoid stripping the head
• Replace any associated washers or nuts if damaged; secure to proper tightness without over-torquing
• If threads are damaged, repair or replace the mating hardware to ensure a safe fit

The Handle Mounting Stud is an OEM replacement part for LG refrigerator doors. It provides a sturdy mounting point for the door handle assembly. Reliable handle connection and support is crucial for dependable door function and access.

Causes of a faulty stud can include damage from excess weight or impact over time rendering the stud loose or unstable.

Symptoms of a bad stud include:

• Loose or sagging door handle
• Difficulty opening and closing the refrigerator door
• Potential for the handle to detach completely
• Safety concerns if the handle connection fails

This OEM LG replacement stud is also compatible with Sears/Kenmore models.

This customized replacement screw secures appliance components and restores proper fit and function. It's a direct-fit fastener designed for use where the OEM specifies a tailored screw to replace a worn, stripped, or missing fastener. What it does

• Fastens panels, brackets, or assemblies that use a manufacturer-specified customized screw
• Stops rattling or loose parts caused by worn or missing hardware
• Restores secure mounting for affected components
• Matches the OEM shape and thread pattern to prevent damage when used as directed

• Disconnect power and water before starting any repair
• Use the correct screwdriver or bit to avoid stripping the head
• Install by hand initially, then tighten snugly—do not overtighten to avoid thread damage
• Keep removed hardware organized so you replace parts in their original locations

This customized screw secures internal components and panels in compatible appliances, providing a reliable fastener that restores proper fit and function. Use it when factory screws are missing, stripped, or damaged. What it does:

• Fastens panels, brackets or assemblies to maintain structural alignment and prevent rattles
• Replaces stripped, corroded or missing mounting screws that can cause loose parts or vibration
• Restores secure connections for controls and internal components to help appliances operate quietly
• Works where the OEM called for a non-standard or modified screw shape/length

• Use the correct screwdriver or bit to avoid stripping the head; avoid overtightening
• Turn power off and unplug the appliance before accessing internal components
• Compare replacement to the original screw for length, thread and head type before installation

This rear door handle replaces a worn or damaged handle on compatible LG appliances, restoring a secure grip and smooth opening. It's a direct-fit exterior handle that keeps the appliance door operating and looking right. What it does

• Provides a secure gripping point to open and close the appliance door
• Replaces cracked, loose, or broken rear handle hardware
• Restores correct alignment and feel when the door is operated
• Helps prevent further damage to the door edge from makeshift handles

• Power off and unplug the appliance before starting work; remove food or shelves as needed for access
• Keep fasteners and mounting clips; transfer original hardware unless new hardware is explicitly included
• Test door operation and alignment after installation; tighten fasteners evenly to avoid stress

This lower cover assembly protects the appliance's lower cabinet area and helps keep internal components free from debris while supporting proper airflow. It restores the unit's finished appearance and helps prevent damage to wiring and controls. What it does:

• Shields lower cabinet components from dust, lint and accidental contact
• Helps maintain correct airflow routing under the appliance
• Prevents foreign objects from reaching motors, pumps or wiring
• Re-establishes the finished exterior where the lower panel is missing or damaged

• One lower cover assembly

• Disconnect power (and water, if applicable) before starting work
• Remove any exterior panels or trim as needed; basic hand tools required
• Handle edges carefully; wear gloves to avoid cuts
• Secure all fasteners; replace any damaged clips or screws

Replacement drain tube assembly that directs wastewater from the appliance tub to the drain pump, restoring proper drainage and helping reduce leaks. Use when the original tube is cracked, kinked, clogged, or visibly leaking. What it does

• Channels wastewater from the tub to the drain/pump for normal draining.
• Maintains a sealed path to help prevent water leaks under or around the appliance.
• Replace when you see pooling water, slow or no drain, or visible damage to the tube.
• Works as the fluid conduit; does not include clamps or pump.

• Disconnect power and water supply before beginning any service.
• Route the tube along the original path and secure with existing clamps or the correct replacement fasteners.
• Avoid kinks, sharp bends, and contact with sharp edges to prevent leaks or premature wear.
• After installation, restore power/water and run a short drain cycle; check all connections for leaks.

The Leveling Leg is an OEM part for LG refrigerators. It is one of the four legs at the bottom corners that elevate and provide stability to the entire appliance.

Causes of failure can be broken mounting points that no longer provide secure elevation, full compression of the built-in cushioning, or damage from impact on an unlevel floor.

Symptoms of a faulty leveling leg include:

• Excessive shaking or vibrating of the refrigerator
• Door alignment issues where doors are difficult to open or close fully
• Visible leaning or misalignment of the refrigerator cabinet

This OEM LG part is also compatible with some Kenmore models.

This fan grill assembly is the molded cover that protects the refrigerator/freezer fan and helps direct airflow for efficient cooling. It restores proper air movement and keeps debris away from the fan blade and motor. What it does:

• Covers and protects the evaporator/condenser fan from loose items and debris
• Directs airflow to support consistent cooling and efficient operation
• Reduces fan noise caused by damaged or loose grills
• Prevents accidental contact with the spinning fan blade

• Disconnect power to the appliance before servicing to avoid electrical shock or injury
• Typically secures with screws or retaining clips; keep all fasteners and align tabs before tightening
• Handle the plastic grille carefully to avoid cracking; confirm correct orientation before final install
• If fan or motor damage is present, inspect and replace those parts as needed

This replacement freezer tray holds water to form ice and fits into the freezer compartment to restore ice production and keep cubes contained. It's a simple swap that brings back reliable ice-making without tools. What it does:

• Holds water in molded cavities so ice cubes form evenly
• Replaces cracked, warped, or missing trays that leak or fail to produce ice
• Keeps ice contained and easier to remove from the freezer
• Helps prevent spills and pooling inside freezer shelves

• Remove the old tray, clean the cavity area, and slide or set the new tray into place per your freezer's shelf layout
• Wash the tray with warm, soapy water and rinse before first use
• Do not use sharp tools to pry ice from the tray; twist gently or run under cold water to release cubes
• Keep away from direct heat or stovetop surfaces and avoid using abrasive cleaners

A replacement refrigerator shelf assembly that restores a level, stable storage surface for leftover and fresh foods. Designed to replace a damaged, cracked, or worn shelf so you can safely store items and keep the interior organized. What it does:

• Provides a sturdy, level surface for food and containers to sit on
• Replaces cracked, chipped, or shattered glass or a warped shelf frame
• Stops items from sliding or falling when a shelf edge is broken
• Helps restore proper spacing and visibility inside the refrigerator

• Remove food and containers before removing the old shelf
• Wear cut-resistant gloves when handling broken or glass shelves
• Support the shelf while lifting out and during installation to avoid dropping
• Verify fit and seating into the shelf tracks; do not force—confirm alignment before applying weight

The Glass Shelf is an OEM part for LG refrigerators. It provides a durable surface for organizing and displaying items inside the refrigerator and freezer compartments.

Causes of a faulty shelf can include chips or cracks developing from repeated loading and unloading of items over time. Temperature fluctuations may also cause warping.

Symptoms of a problematic glass shelf include:

• Sagging or bowing that prevents proper fitting
• Breaks or weak spots that compromise strength
• Difficulty removing or replacing the shelf

This OEM LG part is also compatible with some Kenmore models.

This guide assembly is a chassis alignment and support piece that helps hold and position internal TV components for proper fit and operation. Replacing a damaged guide restores secure mounting and reduces panel or board movement. What it does:

• Secures and aligns internal TV modules or boards to the cabinet
• Prevents rubbing, vibration noise, and intermittent contact from loose parts
• Helps keep the display and internal assemblies correctly spaced for reliable operation
• Useful when cracked, warped, or broken guides cause misalignment or rattling

• One guide assembly as shown

• Unplug the TV and remove power/antenna cables before starting
• Ground yourself to protect against static-sensitive components
• Use original screws and fasteners; inspect adjacent tabs and mounts for damage during installation

This rail guide assembly replaces a worn or broken slide rail that supports smooth movement of a drawer or component. Restores proper alignment and helps the drawer glide quietly and evenly. What it does:

• Guides and supports the drawer or sliding component along its track.
• Replaces damaged or bent rail sections that cause sticking or uneven movement.
• Reduces scraping, grinding, or noisy operation from a faulty guide.
• Helps restore proper alignment to prevent binding or partial closure.

• One rail guide assembly.

• Disconnect power (and water if applicable) and follow appliance-specific disassembly steps before replacing the rail.
• Basic hand tools are typically required; avoid forcing components to prevent breakage.
• Keep fasteners and any removed parts organized for reassembly.

This guide assembly is a factory-style mounting guide used in TV chassis to position and support internal components, helping maintain correct alignment and stable operation during use and service. What it does:

• Provides a mounting and alignment point for internal TV components to keep assemblies stable
• Helps maintain proper spacing between parts to prevent rubbing, misalignment, or rattling noises
• Can restore correct fit where a damaged or worn guide causes loose panels or shifting components
• Useful when repairing or replacing adjacent parts that rely on the guide for proper positioning

• Guide assembly

• Disconnect power and remove the TV from its wall mount or stand before servicing
• Handle the panel and internal boards carefully to avoid damage; use non-marring tools
• Keep track of all screws and grounding hardware removed during disassembly for reassembly

This rail guide assembly restores smooth, reliable drawer movement by guiding and supporting the slide rail. Replaces a worn or broken guide so freezer/refrigerator drawers open and close without sticking or falling off track. What it does

• Guides the drawer slide rail and keeps the drawer aligned during operation
• Helps stop drawers from binding, sticking, or coming off the rail
• Reduces scraping, grinding, or noisy sliding caused by damaged guides
• Restores proper drawer support so contents remain stable while opening and closing

• Disconnect power before working inside the appliance and remove food, drawers and shelves that block access.
• Remove the old guide and install the new guide using the original mounting screws; match the correct side/orientation before fastening.
• Use common hand tools; avoid forcing parts—if the rail is bent or damaged, replace the rail as well.

This door gasket assembly replaces a damaged or worn refrigerator door seal to restore an airtight closure and improve cooling efficiency. It fits the door and provides a continuous seal to help maintain consistent internal temperature. What it does:

• Seals the refrigerator door to prevent warm air from entering and cold air from escaping.
• Helps reduce frost buildup and excessive compressor run time caused by a failed seal.
• Addresses symptoms like visible gaps, torn or deformed rubber, and poor door closure.
• Restores proper door alignment and contact for even cooling across compartments.

• One door gasket assembly

• Disconnect power and remove stored items from the door before starting.
• Replace gasket by removing retaining clips or trim, seat new gasket fully into the channel, and reattach trim/clips per manufacturer guidance.
• Avoid sharp tools that can damage the gasket; warm the gasket slightly if needed for easier seating.
• After installation, allow the gasket to set and check the door seal on all sides; adjust alignment if necessary.

This door gasket assembly seals the refrigerator/freezer door to help maintain proper temperature and reduce energy loss. It replaces a worn or damaged seal to improve cooling performance and prevent moisture buildup. What it does:

• Creates an airtight seal between the door and cabinet to keep cold air in and warm air out
• Helps prevent frost buildup, water leaks, and fluctuating internal temperatures
• Reduces compressor run time by maintaining consistent internal temperature
• Restores proper magnetic engagement where applicable to ensure the door closes fully

• Inspect the door flange for damage and clean thoroughly before installing the new gasket.
• Remove the old gasket carefully to avoid bending the door; align the new gasket evenly around the door perimeter.
• Warm the gasket slightly if needed to help seat it into the channel; avoid open flames or excessive heat.
• If the door still does not seal after installation, check hinge alignment and adjust.

Color: Stainless

The Refrigerator Door Gasket is an OEM part for LG refrigerators. It's designed to create an airtight seal around the refrigerator door, preventing warm air from entering and cold air from escaping. The gasket is made from a flexible material that conforms to the door's edges, ensuring a snug fit against the refrigerator frame.

Causes of a bad door gasket include frequent opening and closing of the refrigerator door, exposure to harsh cleaning chemicals that can degrade the material, and natural wear and tear.

Symptoms of a bad Refrigerator Door Gasket include:

• Condensation or frost buildup near the door edges.
• The refrigerator runs more frequently or for longer periods.
• A noticeable increase in your electricity bill.
• The gasket feels brittle or has visible cracks, tears, or gaps.

This OEM LG part can also be used on Kenmore/Sears appliances.

The Refrigerator Door Gasket is an OEM replacement part for LG refrigerators. It is a crucial component that seals the gap between the refrigerator door and the main body, creating an airtight seal to maintain the desired temperature and humidity levels inside the appliance. It has approximate dimensions of 2" x 41" x 20".

Symptoms of a bad refrigerator door gasket include:

• Warm air leaking into the refrigerator compartment
• Excessive frost or ice buildup in the freezer
• Condensation forming on the interior walls or shelves
• Higher energy consumption due to the refrigerator working harder to maintain the set temperature

Causes of a bad door gasket can include physical damage, such as tears or cracks, due to impact or wear and tear over time. It can also become stiff or lose its pliability, preventing a proper seal.

This OEM LG part is also compatible with Sears/Kenmore models.

The Refrigerator Flipper Assembly is an OEM part for LG refrigerators. This assists in the smooth opening and closing of the refrigerator door. It ensures an airtight seal when the door is closed, preventing cool air from escaping and maintaining the refrigerator's internal temperature.

Causes of a malfunctioning Refrigerator Flipper Assembly can range from physical damage, such as cracks or breakage, to wear and tear from regular use.

Symptoms of a bad Refrigerator Flipper Assembly include:

• Difficulty in opening or closing the refrigerator door
• A noticeable gap when the door is supposed to be sealed shut
• Increased energy consumption as the refrigerator works harder to maintain its temperature
• Spoilage of food items quicker than expected due to poor temperature regulation

This OEM LG part is also compatible with some Kenmore models.

This replacement drawer guide restores proper tracking and smooth operation to a refrigerator or freezer drawer. It helps keep the drawer aligned and reduces scraping, sticking, or uneven movement for reliable daily use. What it does:

• Guides the drawer along its track so it opens and closes smoothly
• Replaces a worn, cracked, or bent guide that can cause sticking or misalignment
• Reduces drawer rattling and scraping against the cabinet
• Helps prevent drawer drops or catching when pulling open or pushing closed

• Unplug the appliance or switch off power before servicing to avoid electrical hazards
• Remove the drawer and any screws or retaining clips holding the old guide; keep hardware if it's reusable
• Align the new guide on the track and secure with the original screws or clips; do not force parts into place
• Test the drawer operation before returning contents; recheck alignment and hardware if movement is still obstructed

This door basket restores secure storage on your refrigerator's inner door. It replaces a cracked, loose, or missing bin so bottles and condiments stay organized and easy to access.

• Provides on-door storage for jars, bottles, and condiments
• Snaps into the molded door rails/tabs for a secure fit
• Restores lost capacity and organization when a bin is damaged or missing
• Common symptoms: cracked bin, broken tabs, bin falls off, won't stay level

• Disconnect power and remove items from the door before starting
• Lift the old bin straight up and out of the door slots
• Align the new bin with the slots and press down until fully seated
• The bin is securely engaged before reloading items

This door basket assembly mounts to the refrigerator door to provide secure, convenient storage for bottles, jars, and condiments. Replacing a cracked or loose bin restores usable door storage and helps prevent spills when opening and closing.

• Creates additional door-mounted shelf space for beverages and condiments
• Direct replacement for a damaged, warped, or missing door bin
• Helps keep items organized and reduces tipping during door movement
• Seats on the molded door-liner hooks/tabs when properly aligned

• Remove all items from the existing bin; lift the bin straight up and out of the door-liner slots
• Align the hooks/tabs of the new bin with the intended position and lower until fully seated
• Do not force into place; verify correct location and ensure the bin is securely engaged before loading
• Avoid overloading to prevent stress or cracking

This door basket assembly mounts to the refrigerator door to provide secure, convenient storage for bottles, jars, and condiments. Replacing a cracked or loose bin restores usable door storage and helps prevent spills when opening and closing.

• Creates additional door-mounted shelf space for beverages and condiments
• Direct replacement for a damaged, warped, or missing door bin
• Helps keep items organized and reduces tipping during door movement
• Seats on the molded door-liner hooks/tabs when properly aligned

• Remove all items from the existing bin; lift the bin straight up and out of the door-liner slots
• Align the hooks/tabs of the new bin with the intended position and lower until fully seated
• Do not force into place; verify correct location and ensure the bin is securely engaged before loading
• Avoid overloading to prevent stress or cracking

This door basket assembly mounts to the refrigerator door to provide secure, convenient storage for bottles, jars, and condiments. Replacing a cracked or loose bin restores usable door storage and helps prevent spills when opening and closing.

• Creates additional door-mounted shelf space for beverages and condiments
• Direct replacement for a damaged, warped, or missing door bin
• Helps keep items organized and reduces tipping during door movement
• Seats on the molded door-liner hooks/tabs when properly aligned

• Remove all items from the existing bin; lift the bin straight up and out of the door-liner slots
• Align the hooks/tabs of the new bin with the intended position and lower until fully seated
• Do not force into place; verify correct location and ensure the bin is securely engaged before loading
• Avoid overloading to prevent stress or cracking

STOPPER ASSEMBLY,DOOR

The Lower Refrigerator Door Hinge is an OEM part for LG refrigerators, designed to support and pivot the refrigerator door, allowing it to open and close smoothly. This hinge is a critical component for the proper alignment and function of the door, ensuring an airtight seal when closed to maintain the internal temperature and efficiency of the refrigerator.

Causes of damage to the lower refrigerator door hinge often include normal wear and tear, excessive force when opening or closing the door, or corrosion due to moisture and cleaning agents.

Symptoms of a bad Lower Refrigerator Door Hinge include:

• Difficulty in opening or closing the refrigerator door.
• A door that hangs unevenly or does not close properly
• Unusual noises during door operation
• Visible wear or damage to the hinge itself.

This OEM LG part is also compatible with some Kenmore models.

This rail slide replaces a worn or broken drawer track to restore smooth opening and reliable support for a refrigerator or freezer drawer. It helps the drawer glide smoothly and keeps contents stable during use. What it does:

• Guides and supports the drawer for smooth, linear movement
• Restores even alignment to prevent sticking, binding, or uneven travel
• Reduces rattling and helps the drawer stay fully seated when closed
• Addresses symptoms like a sagging, hard-to-pull, or off-track drawer

• High-level replacement — remove the drawer and fasteners to swap the rail
• Keep small screws and clips organized and reuse original hardware unless replacements are provided
• Wear gloves to protect hands and avoid damaging painted surfaces

This slide rail restores smooth, stable drawer or rack movement so the compartment opens and closes without binding. It replaces a worn or damaged rail to improve alignment and support. What it does

• Guides and supports a drawer or oven/rack for even, controlled sliding
• Reduces sticking, scraping, or uneven travel when opening or closing
• Helps prevent the drawer or rack from sagging or coming off the track
• Works as a mechanical replacement when the original rail is bent, cracked, or worn

• One slide rail

• Disconnect power or unplug the appliance before beginning any repair
• Remove the affected drawer or rack to access mounting screws and clips
• Match rail orientation and secure with the original fasteners; do not overtighten
• Test operation after installation and reassemble any removed components

This ice maker gear drives the ejector blades that push ice from the tray into the bin. Replacing a worn or broken gear restores proper harvest cycles and stops grinding or slipping during ejection. What it does:

• Turns the ice maker ejector to release ice cubes during the harvest cycle.
• Stops or reduces grinding noises and slipping when the gear teeth are stripped or damaged.
• Helps restore regular ice production when the ejector no longer rotates.
• Works as the replacement driven gear in compatible LG ice maker gear trains.

• Disconnect power before servicing the ice maker to avoid shock or injury.
• Remove the ice maker assembly to access the gear; follow OEM instructions for disassembly.
• Inspect the mating gear, motor shaft, and ejector assembly for wear—replace additional damaged parts as needed.
• Use the matching part number to ensure fit.

This hinge assembly replaces a worn or damaged refrigerator door hinge to restore proper door alignment and smooth opening and closing. It helps stop sagging doors, noisy movement, and improper sealing for better cooling performance. What it does:

• Supports and pivots the refrigerator door for correct alignment and even sealing
• Replaces broken, bent, or worn hinge hardware that causes door sag or misalignment
• Reduces rubbing, grinding, or noisy hinge movement when opening or closing
• Helps restore proper door closure to prevent cold air loss and temperature issues

• Unplug the appliance and support the door before removing hinge hardware to prevent injury or damage
• Transfer any mounting screws or brackets only if specified by the OEM; replace visibly damaged fasteners
• Tighten mounting fasteners to secure the hinge but avoid over-torquing; confirm door alignment after installation

This spanner is the specialized hand tool used to turn and hold slotted nuts, collars, or fittings on compatible appliances, making service and adjustments easier and safer. It gives a secure grip for loosening or tightening components without damaging surrounding parts. What it does:

• Fits and turns slotted or notched appliance fasteners and collars commonly used in assemblies
• Helps hold a component steady while you loosen or tighten the mating fastener
• Reduces slippage and tool marks compared with pliers or improvised tools
• Useful during maintenance tasks such as removing retaining rings, collars, or adjustable fittings

• One spanner tool

• Disconnect power and/or gas and follow all safety precautions before servicing appliances
• Use the correct size spanner engagement to avoid slipping or rounding the fastener
• Apply steady force; do not use cheater bars or excessive torque unless specified by the manufacturer

This turntable roller ring sits under the glass tray and allows it to rotate smoothly for even heating. Replace a worn, warped, or broken ring to restore stable rotation and consistent cooking performance.

• Supports the glass turntable and rides on built-in rollers for smooth, quiet movement
• Keeps the tray level and centered to promote even heating
• Common symptoms: tray not turning, uneven cooking, scraping/grinding noises, or a wobbly/slipping turntable
• Restores proper interaction between the turntable, drive coupling, and motor

• Unplug the microwave or switch off the breaker before servicing
• Remove the glass tray; lift out the old ring and clean the track
• Place the new ring with the rollers facing down on the track; reseat the tray on the center drive coupling
• Test rotation with a microwave-safe cup of water

The Flapper Door Spring is an OEM part for LG refrigerators, designed for the ice dispenser's flapper door mechanism. This spring plays a role in ensuring the flapper door opens and closes properly, providing a tight seal when the ice dispenser is not in use.

Over time, the flapper door spring can lose tension or break due to fatigue or corrosion, leading to issues with the flapper door's operation.

Symptoms of a bad Flapper Door Spring include:

• The flapper door on the ice dispenser fails to close completely
• Ice or frost buildup around the dispenser area
• Difficulty dispensing ice
• Increased energy consumption as the refrigerator works harder to maintain its set temperature

This OEM LG part is also compatible with some Kenmore models.

Left side upper hinge.

Right side upper hinge.

The Dispenser Ice Chute Door is an OEM part for LG side-by-side refrigerators featuring exterior ice and water dispensers. This door guides ice from the storage bin to the access port.

Causes of failure can involve hinge wear reducing tight insulation seals, mineral buildup along tracks impeding smooth operation, or cracking down the center from repeated opening/closing cycles.

Symptoms of a bad ice chute door include:

• Difficulty dispensing crushed ice types or cubes
• Leaks inside the fridge from failed door perimeter seals
• Door remaining partially open or unable to fully close
• Ice backup preventing dispensing when needed

Replace yours today with this genuine OEM LG door to maintain top-quality ice production and on-demand access. Ergonomic design glides open and closed reliably for maximum usability. This replacement part is also compatible with Samsung, GE, and Kenmore side-by-side refrigerators featuring externally mounted dispensers. Proper fit sustains premium performance.

This holder bracket replaces a damaged or missing mounting support. It secures an internal component so it stays aligned and stable, helping your appliance operate smoothly without looseness or rattling.

• Provides a rigid mounting point to hold a component or assembly in place
• Maintains alignment to reduce vibration, rubbing, and intermittent operation
• Restores support when the original bracket is cracked, warped, or missing
• Common symptoms include a loose/wobbly part, rattling noises, or visible broken tabs

• Disconnect power to the appliance before servicing
• Note the original bracket's orientation and transfer any clips or screws from the old part
• Use existing hardware and tighten fasteners evenly—do not overtighten
• Verify proper fit and alignment before restoring power

The Dispenser Lever Retainer is an OEM part for LG refrigerators. This part secures the dispenser lever in place, this part ensures the smooth operation of the water and ice dispenser.

Causes of a bad Dispenser Lever Retainer can include normal wear and tear from repeated use, accidental damage, or deterioration of the material over time.

Symptoms of a bad Dispenser Lever Retainer include:

• The dispenser lever is loose or wobbly
• Difficulty in dispensing water or ice
• The lever does not return to its original position after use
• Unintended activation or difficulty in activating the dispenser

This OEM LG part is also compatible with some Kenmore models.

The Ice Door Lever Spring is an OEM component compatible with LG refrigerators. It is part of the mechanism that opens and closes the ice door on LG French door refrigerators. Over time, springs can lose resiliency or become misaligned.

Causes may be extensive usage over years or damage like kinking that compromises spring function.

Symptoms of a bad ice door lever spring include:

• The ice door not latching fully when closed
• Difficulty opening or poor balance while moving the door
• The lever rubbing or catching instead of moving smoothly

This OEM LG part is also compatible with Sears/Kenmore side-by-side refrigerators.

This display power control board assembly powers and controls the appliance's user interface so lights, touchpads and status displays operate correctly. It replaces a failed display board to restore normal panel behavior and feedback. What it does

• Supplies power and signal control to the front display and indicator lights.
• Manages button/touch inputs and display output for the control console.
• Common symptom: display or control lights are dim, flicker, or not lighting.
• Common symptom: control panel is unresponsive, buttons do not register, or display shows no information.

• Disconnect power (unplug appliance or shut off breaker) before any service.
• Handle the board carefully and avoid static discharge; use anti-static precautions if available.
• Verify connector orientation and seating before reassembly; do not force connectors.

This funnel assembly channels wash water inside the tub to the wash system, helping maintain proper flow and prevent internal leaks. Replace a cracked or missing funnel to restore consistent cleaning performance and reliable operation.

• Directs water flow between the tub and wash/circulation components
• Helps maintain wash pressure for effective cleaning
• Creates a proper water path at its mounting point to prevent internal leaks
• Common signs of failure: visible cracks/warping, water dripping from the area, or declining cleaning results

• Disconnect power and turn off the water supply before servicing
• Remove dish racks and interior panels/filters as needed to access the funnel location for your model
• Transfer any reusable screws, clips, or seals from the old part
• After installation, run a short cycle and check carefully for leaks

A decorative drain trim that restores the finished look around the drain opening and helps direct excess water into the drain channel. Replaces a worn or damaged trim piece to improve appearance and reduce water pooling at the drain area. What it does

• Covers and protects the drain opening while keeping the area looking finished.
• Guides water into the drain channel to help prevent minor pooling or splashing.
• Replaces cracked, bent, or cosmetically worn trim that can catch debris.
• Common symptom: visible damage or missing trim around the drain opening; water pooling or uneven appearance near the drain.

• One decorative drain trim piece.

• High-level, do-it-yourself friendly: typically secures by snap-fit or a few fasteners; follow model-specific service manual.
• Power off and disconnect appliance from power (and water if applicable) before beginning work.
• Inspect surrounding seals and mounting surfaces; replace any damaged parts to ensure a proper fit.

NOTE: This part also requires software update kit CJT30000002. DO NOT INSTALL WITHOUT UPDATING SOFTWARE. Call for more information.

The Compressor is an OEM part for LG refrigerators. As the primary component that circulates refrigerant to chill the refrigerator and freezer compartments, it is crucial for proper cooling operation. The compressor works with the condenser fan and evaporator coil to regulate temperatures inside the refrigerator.

Causes of a faulty compressor can include gradual breakdown of motor windings, loss of refrigerant pressure over time, or failure of electrical components vital to operation.

Symptoms of a bad compressor are:

• Elevated fridge/freezer temperatures unable to be maintained
• Frost patterns indicating poor or insufficient cooling
• Abnormal vibrations or sounds upon compressor cycling
• Error codes displayed regarding cooling performance

It is also compatible with Sears/Kenmore refrigerator models.


The Compressor Overload Protector Assembly is an OEM part for LG refrigerators. The compressor overload protector steps in if the compressor motor draws excessive current. It then interrupts the power to prevent overheating. The wire harness boosts the compressor to kick-start it, disengaging as soon as the motor reaches the desired speed.

Over time, the compressor overload protector can wear out or become damaged due to electrical issues, power surges, or constant exposure to high temperatures. A faulty protector can compromise the safety and efficiency of the refrigerator’s cooling system.

Symptoms of a bad compressor overload protector assembly include:

• The refrigerator not cooling properly
• The compressor frequently cycling on and off
• Clicking noises coming from the compressor area
• The refrigerator not turning on at all

This OEM LG part is also compatible with Sears/Kenmore models.

The Overload Compressor is an OEM part for LG refrigerators. This part protects the refrigerator's compressor from overheating and potential damage by acting as a safety device. It works by monitoring the compressor's electrical current and temperature. If the compressor operates under conditions that could lead to overheating or overcurrent, the overload protector will cut off the power to the compressor, allowing it to cool down before potentially restarting.

Causes of damage to the Overload Compressor can include power surges, electrical faults within the refrigerator, or a malfunctioning compressor that requires more current than usual to operate.

Symptoms of a bad Overload Compressor include:

• The refrigerator not cooling properly or not cooling at all
• The compressor failing to start, indicated by a clicking sound coming from the back of the refrigerator where the compressor is located.
• The refrigerator or freezer section warming up

This OEM LG part is also compatible with some Kenmore models.

This PTC cover is the protective housing that shields a PTC sensor/assembly from debris and physical damage, helping maintain reliable sensor performance and prolong component life in the appliance. What it does:

• Protects the PTC sensor or PTC assembly from dust, impact, and accidental contact
• Helps prevent shorting or intermittent sensor signals caused by contaminants
• Supports proper positioning and mounting of the PTC component
• Can help address symptoms such as visible sensor damage, exposed wiring, or intermittent operation related to a compromised sensor housing

• Disconnect power to the appliance before starting any repair
• Remove the outer panel(s) as needed to access the PTC location; handle surrounding wiring and components carefully
• Replace only with the correct OEM cover to ensure proper fit and protection

This damper assembly controls airflow between compartments to help maintain consistent refrigerator temperatures and restore proper air distribution. It replaces a damaged or stuck damper that interferes with cooling balance. What it does:

• Regulates fresh food/freezer airflow by opening and closing the inlet
• Helps correct uneven temperatures or reduced cooling caused by a stuck or broken damper
• Stops unwanted drafts when the damper is closed
• Operates with the fridge's control system to respond to temperature changes

• Disconnect power to the appliance before starting any repair
• Access typically requires removing interior panels or shelving to reach the damper housing
• Handle plastic parts and wiring gently; avoid forcing connectors

Replacement front cover that restores your appliance's exterior finish and helps protect controls and internal components from everyday wear, spills, and minor impacts, delivering a clean, finished look and proper front-panel fit. What it does:

• Covers and protects the appliance's front area, helping shield controls and wiring from dirt and moisture.
• Restores damaged or cracked front trim for improved appearance.
• Helps maintain proper alignment and fit of the front assembly.
• Common symptom: cracked, chipped, warped, or loose front panel that exposes internal parts or looks worn.

• Disconnect power (unplug or switch off breaker) before starting any repair.
• Basic hand tools (screwdriver set) may be required to remove the old cover and install the replacement.
• Handle edges carefully to avoid cuts; align tabs/clips and secure fasteners snugly but do not overtighten.

This small stopper installs in the refrigerator to limit the travel of a moving component and keep it securely in place. Replacing a broken or missing stopper prevents over-extension and helps maintain smooth, aligned operation.

• Limits the range of motion for a door, bin, or drawer to prevent over-opening or accidental removal
• Helps keep interior components aligned and operating smoothly
• Replace if cracked, missing, or deformed
• Common symptoms: drawer or bin slides out too far, door swings past normal range, or a broken plastic stop is found

• Disconnect power before servicing; remove or support the affected bin/drawer/door
• Note the old stopper's orientation and location before removal
• Transfer and reuse any original screws or clips if applicable
• Snap or fasten the new stopper in place and test for smooth movement

This customized pin is a precision fastener that serves as a pivot or locating point within your appliance. It helps keep mating parts aligned and moving smoothly. Replace a bent, worn, or missing pin to restore proper operation. What it does

• Acts as a pivot/axle or locating pin between connected parts
• Maintains alignment to reduce wobble and uneven movement
• Supports smooth opening/closing or rotation at the joint
• Common signs it's needed: looseness, sagging or misalignment, scraping/squeaking at the pivot, or a visibly worn/bent/missing pin

• One customized pin

• Disconnect power (and shut off water supply, if applicable) before servicing
• Support the door/panel/assembly to remove load from the pin during removal/installation
• Note the orientation and order of any spacers, bushings, or washers and transfer them to the new pin
• Apply a light lubricant and verify smooth movement before restoring power

The Drier Assembly is an OEM part for LG refrigerators. This part is responsible for removing moisture and contaminants from the refrigerant. This ensures that the refrigerant circulates effectively and efficiently, preventing damage to other components and maintaining the refrigerator's cooling performance.

Causes of a bad Drier Assembly can include contamination from moisture entering the refrigerant lines, blockages from debris or particulates, and general wear and tear over time that reduces its effectiveness.

Symptoms of a bad Drier Assembly include:

• Reduced cooling efficiency or warm refrigerator temperatures
• Unusual noises from the refrigeration system
• The compressor running continuously or cycling frequently
• Frost buildup on the evaporator coils due to improper refrigerant flow

This OEM LG part is also compatible with Sears/Kenmore models.

This condenser assembly replaces the condenser wiring and support used in compatible refrigerators to restore proper condenser connections and airflow. It helps re-establish electrical routing and secure mounting so the cooling system can run reliably. What it does:

• Replaces damaged or corroded condenser wiring and associated mounting hardware
• Restores electrical connection between condenser components and the control circuitry
• Helps resolve symptoms such as cooling loss, intermittent compressor operation, or visible wiring damage
• Maintains proper condenser positioning for adequate airflow and heat dissipation

• Disconnect power and unplug the appliance before starting work
• Inspect surrounding components (fan, compressor, terminals) for related damage
• Use manufacturer-recommended torque and routing to avoid pinched wires

The Fan Assembly is an OEM part for LG refrigerators. It is responsible for circulating air within the refrigerator and freezer compartments, ensuring consistent cooling and optimal temperature distribution. The fan assembly helps maintain the freshness of your food by evenly distributing cold air.

Common causes of a bad fan assembly include electrical issues, worn-out bearings, or obstructions that prevent the fan from spinning properly.

Symptoms of a bad fan assembly include:

• Unusual noises coming from the refrigerator
• Inconsistent temperatures within the fridge or freezer
• Frost buildup in the freezer
• Refrigerator running continuously or not cooling effectively

This OEM LG part is also compatible with Sears/Kenmore models.

This fan grill assembly is the molded cover that protects the refrigerator/freezer fan and helps direct airflow for efficient cooling. It restores proper air movement and keeps debris away from the fan blade and motor. What it does:

• Covers and protects the evaporator/condenser fan from loose items and debris
• Directs airflow to support consistent cooling and efficient operation
• Reduces fan noise caused by damaged or loose grills
• Prevents accidental contact with the spinning fan blade

• Disconnect power to the appliance before servicing to avoid electrical shock or injury
• Typically secures with screws or retaining clips; keep all fasteners and align tabs before tightening
• Handle the plastic grille carefully to avoid cracking; confirm correct orientation before final install
• If fan or motor damage is present, inspect and replace those parts as needed

The Defrost Control Assembly is an OEM part for LG refrigerators, crucial for regulating the defrost cycle within the unit. This component plays a pivotal role in ensuring that the evaporator coils are periodically defrosted, preventing the build-up of ice that can impede airflow and cooling efficiency.

Causes of a bad Defrost Control Assembly can include electrical failures, sensor malfunctions, or damage to the assembly itself, which can disrupt the defrost cycle.

Symptoms of a bad Defrost Control Assembly include:

• The refrigerator or freezer compartment becoming too warm due to blocked airflow from ice accumulation
• A noticeable build-up of frost or ice on the evaporator coils or in the freezer compartment
• The refrigerator running continuously without cycling off
• Unusual noises coming from the refrigerator as ice builds up and interferes with the fan

This OEM LG part is also compatible with Sears/Kenmore.

The Door Switch is an OEM part for LG refrigerators. It is located near the door hinge and is activated by the door's movement. When the door is closed, the switch is engaged, allowing the interior light to turn off and other functions to operate normally. When the door is opened, the switch is released, triggering the interior light to turn on and potentially activating other features, such as the ice dispenser or cooling system.

Causes of a faulty door switch can include wear and tear over time, mechanical damage from excessive force, or electrical issues.

Symptoms of a bad door switch may include:

• The interior light not turning on when the door is opened
• The interior light remains on when the door is closed
• Issues with the dispenser or other functions associated with the door switch

The Dispenser Micro Switch is an OEM part for LG refrigerators. It is a component of the ice and water dispensing system, responsible for activating the dispenser when the lever is pressed.

Causes of a bad Dispenser Micro Switch can include mechanical wear from frequent use, failure due to moisture or debris affecting the switch’s contacts, or electrical faults that prevent proper signaling.

Symptoms of a bad Dispenser Micro Switch include:

• The dispenser not releasing ice or water when the lever is pressed.
• Continuous dispensing or dripping after the lever is released.
• Intermittent or no response from the dispenser controls.

This OEM LG part is also compatible with Sears/Kenmore.

This DC fan motor drives the appliance's internal circulation fan to keep air moving where it's needed. Replacing a failing motor restores proper airflow and can resolve noise, non-running, or intermittent fan operation. What it does:

• Powers the fan that circulates air through the appliance and across coils
• Helps maintain stable temperatures by keeping airflow consistent
• Supports defrost performance by preventing stagnant, frost-prone areas
• Symptoms of failure include the fan not running, running intermittently, or making grinding/rattling noises

• 1 DC motor

• Disconnect power before servicing; wear cut-resistant gloves
• Access the fan housing; remove covers/guards and clear any ice or obstructions
• Transfer the fan blade and any grommets/brackets from the old motor to the new one
• Note connector orientation; ensure the blade spins freely and clears the shroud before reassembly and testing

The DC Motor is an OEM part for LG refrigerators. This part circulates air throughout the refrigerator to ensure uniform cooling and maintain optimal temperatures.

Causes of a bad DC motor can include electrical issues such as short circuits or burnt-out windings, physical damage from impact, or wear and tear from regular use.

Symptoms of a bad DC motor include:

• Refrigerator or freezer not cooling properly
• Unusual noises such as buzzing or humming from the motor area
• Evaporator fan not spinning or spinning intermittently
• Increased frost buildup in the freezer

This OEM LG part is also compatible with some Kenmore models.

This motor bracket secures and aligns the appliance motor, providing stable mounting and helping reduce vibration for reliable operation. It's a direct-fit replacement when the existing motor mount is cracked, bent, or loose. What it does:

• Provides a fixed mounting point to keep the motor properly aligned with the drive system
• Dampens movement to reduce vibration and noise during operation
• Prevents motor shift that can cause belt misalignment or rubbing
• Restores secure fastener locations for reliable motor performance

• One motor bracket

• Disconnect power (and water, if applicable) before beginning any repairs
• Use the original fasteners or OEM-equivalent hardware to secure the bracket
• After installation, verify motor alignment and run a test cycle to ensure quiet, vibration-free operation

A replacement cover motor that powers the refrigerator's dispenser cover, allowing the door to open and close so you can access ice and water. Replaces a worn or failed motor to restore normal dispenser cover operation. What it does:

• Drives the dispenser cover mechanism so the cover opens when dispensing and closes when idle
• Helps keep the dispenser sealed to reduce drafts and prevent pests or debris from entering
• Stops or fails to move when worn, causing a stuck, slow, or noisy dispenser cover
• Works with the dispenser linkage and gears to coordinate cover motion with user controls

• One cover motor

• Disconnect power to the appliance before beginning any repair
• Remove dispenser trim and access panel per your model's service instructions to reach the motor
• Handle gears and linkage carefully; ensure proper alignment during reassembly and test cover operation before finishing

This motor bracket assembly secures the appliance motor to the cabinet, keeping the motor properly positioned for reliable operation and reducing vibration or rubbing. Replaces a worn or damaged motor mounting bracket to restore stability. What it does:

• Holds the motor in place to maintain proper belt alignment and drivetrain geometry
• Prevents motor movement that can cause loud noise, grinding, or rubbing
• Reduces excessive vibration that can transfer to the cabinet or other components
• Helps maintain safe, consistent motor operation during spin or drive cycles

• Disconnect power (and gas if applicable) before starting any repair
• Support the motor before removing mounting hardware to avoid strain on wires or components
• Tighten all fasteners to OEM torque specs; replace any damaged brackets or fasteners
• Test operation after installation and re-check for proper alignment and noise

This lamp cover is the replacement clear/white lens that protects and diffuses the appliance interior light, restoring proper illumination and preventing direct bulb contact. It helps keep the light assembly enclosed and looking finished. What it does:

• Protects the interior light bulb from spills, dust, and impact
• Diffuses light for even illumination inside the appliance
• Restores a cracked, yellowed, or missing lens to improve visibility
• Prevents direct contact with the bulb for safer operation

• One lamp cover (lens) as shown

• Remove power to the appliance before replacing the lens (unplug or shut off circuit)
• Typically snaps or screws into the light housing; use care to avoid breaking the new lens
• Inspect the light housing and bulb; replace bulb if damaged before reassembly

Damper motor support secures the damper motor assembly inside the refrigerator, keeping the air-control damper aligned so it opens and closes correctly. Replacing a damaged support restores proper airflow control and reduces noise. What it does:

• Secures and positions the damper motor assembly so the air-control damper moves smoothly.
• Keeps the motor and damper aligned to help prevent rattling, grinding, or loose motor noise.
• Supports consistent airflow between compartments to assist with even cooling.
• Resolve damper movement problems like the damper not opening or closing fully.

• Disconnect power to the appliance before starting work; remove food and shelves as needed for access.
• Remove the interior access panel to reach the damper assembly; handle plastic tabs and clips gently to avoid breakage.
• Align the motor and damper during reassembly and secure all fasteners; test damper operation before replacing panels and shelving.

This damper motor support replaces a broken or warped mount for the refrigerator's air damper assembly. It holds the damper motor and door securely so the system can meter freezer air into the fresh food compartment.

• Secures and aligns the air damper motor/door within the duct
• Helps ensure proper opening/closing of the damper to regulate airflow and temperature
• Damage can contribute to a warm or too-cold refrigerator and inconsistent temperatures
• May cause clicking or buzzing from the damper area or a visibly loose assembly

• Disconnect power to the refrigerator before servicing
• Access the damper behind the fresh food compartment duct/cover; remove shelves as needed
• Note wiring and orientation; transfer the existing damper motor and door to the new support and reuse fasteners
• Ensure the door moves freely and seals before reassembly; restore power and verify airflow

The Ice Dispenser Door Motor is an OEM part for LG refrigerators. This motor is responsible for the operation of the ice dispenser door, controlling its opening and closing mechanism to allow ice to be dispensed without letting warm air into the freezer.

Symptoms of a bad Ice Dispenser Door Motor include:

• The dispenser door not opening or closing properly,
• Ice not being dispensed when activated,
• Unusual noises coming from the dispenser mechanism.

Causes of ice dispenser door motor failure can include electrical issues such as shorts or wiring problems, mechanical wear over time, or blockages that strain the motor.

This OEM LG part is also compatible with Sears/Kenmore.

The Door Bracket is an OEM part for LG refrigerators. This bracket supports the refrigerator door by providing stability and ensuring proper alignment during opening and closing. It plays a crucial role in maintaining the door’s secure fit, which is essential for maintaining the internal temperature and efficiency of the appliance.

Common causes of a bad door bracket include wear and tear from frequent use, impact damage, or corrosion due to moisture.

Symptoms of a bad door bracket include:

• The refrigerator door not closing properly
• The door sagging or being misaligned
• Unusual noises when opening or closing the door
• Gaps in the door seal leading to temperature inconsistencies

This OEM LG part is also compatible with Sears/Kenmore.

This fan grill assembly is the molded cover that protects the refrigerator/freezer fan and helps direct airflow for efficient cooling. It restores proper air movement and keeps debris away from the fan blade and motor. What it does:

• Covers and protects the evaporator/condenser fan from loose items and debris
• Directs airflow to support consistent cooling and efficient operation
• Reduces fan noise caused by damaged or loose grills
• Prevents accidental contact with the spinning fan blade

• Disconnect power to the appliance before servicing to avoid electrical shock or injury
• Typically secures with screws or retaining clips; keep all fasteners and align tabs before tightening
• Handle the plastic grille carefully to avoid cracking; confirm correct orientation before final install
• If fan or motor damage is present, inspect and replace those parts as needed

This refrigerator sheath heater melts frost from the evaporator so air can circulate freely and the unit can cool properly. Replacing a failed heater helps restore even temperatures and reduce frost buildup in the freezer.

• Warms the evaporator coil during defrost cycles to clear ice
• Helps prevent restricted airflow, warm spots, and long run times
• Common failure symptoms include heavy frost on the evaporator, poor cooling, ice buildup on the back panel, or frequent defrost errors
• May cause sizzling sounds or water under the evaporator area during normal operation after replacement

• Unplug the refrigerator before service; defrost any heavy ice to access parts safely
• Access typically from the rear of the freezer compartment behind the evaporator cover
• Handle heater leads and evaporator fins carefully to avoid damage
• Secure all connectors before reassembly

The Light Bulb is an OEM part for LG refrigerators. It can be used in either the fresh food section or freezer compartment, providing illumination for easy visibility of the stored items.

Causes of a faulty light bulb can include regular wear and tear, reaching the end of its lifespan, or accidental breakage. These factors can result in issues such as a dark or poorly lit interior, making it difficult to see the contents of the refrigerator.

Symptoms of a bad light bulb may include:

• No illumination or dim lighting inside the refrigerator
• A flickering or intermittent light
• Visible damage or broken filament inside the bulb

This LG OEM bulb is also compatible with Sears/Kenmore models.

The Capacitor is an OEM replacement part for  LG refrigerators. It is an electronic component located next to the refrigerator compressor that stores electric charge between cycles of the power supply circuit. The capacitor plays an important role in providing stable starting power to the compressor motor.

Causes of a bad capacitor next to the compressor can include heat distress over thousands of start/stop cycles of the refrigerator.

Symptoms of a bad capacitor include:

• The compressor makes loud buzzing or grinding noises during the operation
• The compressor fails to start or cycles on and off frequently
• Temperature fluctuations inside the refrigerator
• Error codes related to compressor issues

This genuine LG replacement is compatible also with Kenmore Elite model refrigerators

The Compressor Run Capacitor is an OEM part for LG refrigerators. It plays a critical role in the operation of the refrigerator's compressor by providing the necessary electrical boost to start and maintain the compressor's operation.

Causes of a bad compressor run capacitor can include electrical surges, overheating, or simply wear and tear over time. When the capacitor fails, it can no longer deliver the required electrical charge, which impacts the compressor's ability to start and run efficiently.

Symptoms of a bad compressor run capacitor include:

• The refrigerator not cooling properly
• The compressor not starting or running intermittently
• Unusual humming or clicking noises from the compressor area
• The refrigerator cycling on and off frequently

This OEM LG part is also compatible with Sears/Kenmore models.

This fan motor assembly circulates air across the evaporator coils to keep temperatures even inside the refrigerator. Replacing a worn or noisy motor restores proper airflow for consistent cooling performance.

• Drives the evaporator fan to move chilled air through the cabinet and vents
• Helps maintain stable temperatures and reduces frost from stagnant air
• Common symptoms: weak or no airflow, loud or intermittent fan noise, temperature fluctuations, refrigerator section warmer than expected
• Failures may result from worn bearings, moisture exposure, or an open motor winding

• Disconnect power before servicing; wear cut-resistant gloves and eye protection
• Access the fan behind the interior rear panel; remove shelves/drawers as needed and avoid bending evaporator fins
• Note wire connector orientation and mounting order; transfer any reusable hardware from the original assembly as needed
• After reassembly, verify the fan spins freely and confirm operation before reloading the compartment

The Control Board is an OEM component specifically designed for LG bottom-freezer refrigerators. Located within the electrical control housing, this printed circuit board directs critical operations like cooling fans, temperature sensors, and ice/water dispensers. Precise microchip programming optimizes food freshness.

Causes of a bad control board can include moisture damage deteriorating circuits over time, electrical failures inhibiting components, or loose connections preventing communications. Without directing key systems appropriately, the refrigerator cannot efficiently cool food or regulate temperatures.

Symptoms of a bad control board include:

• Abnormal cooling and frosting within the refrigerator compartment
• Inability to adjust temperature settings
• Malfunctioning ice/water dispensers or cooling vents
• Diagnostic error codes appearing

This LG OEM replacement ensures dependable performance through consistent and long-lasting operation. Compatible also with Kenmore bottom-freezer models, it restores full functionality through seamless repairs.

NOTE: The small wire connector features three wires for easy setup. If your original ice maker has 6 wires then order part number AEQ73110205.

The Ice Maker Assembly Kit is an OEM replacement part for LG French door refrigerators. As a comprehensive repair solution, it includes the ice maker, drive motor, assembly, and all necessary mounting hardware.

Symptoms of a bad ice maker assembly include:

• Inability to produce cube ice automatically
• Grinding noise coming from the ice maker area
• Ice not dispensing when the oven is engaged
• Error codes or malfunctions shown on the display

Causes relate to high demand on icemaker parts like mold heating elements or drive motors which cycle 100 times per day. Constant use exceeding 10 years contributes to breakdown in precise fit and function of components.

This small retaining clip secures its mating component within the refrigerator assembly, keeping parts properly seated and reducing vibration. Replacing a damaged or missing clip helps restore a snug fit and reliable operation of the attached piece.

• Holds the designated part firmly in place within the assembly
• Maintains proper alignment to prevent movement or rattling
• Helps ensure panels, ducts, or lines stay secured during use
• Symptoms can include loose or sagging parts, vibration noises, or components that won't stay attached

• Disconnect power; if working near the water system, also shut off the water supply
• Note the original orientation and placement before removal
• Fully seat the mating component, then press the new clip into place without forcing
• Check operation before reassembly

The Water Line Connector is an OEM replacement part for LG refrigerators. It is responsible for connecting the water supply line from the home plumbing to the refrigerator's internal water distribution system, allowing for ice and water dispenser functionality.

Causes of a bad water line connector can include cracking, leaks, or deterioration of the connector material over time due to regular water pressure and temperature fluctuations. Connectors may also become damaged if exposed to impact.

Symptoms of a bad water line connector include:

• Leaks at the connection point between the line and refrigerator
• Loose, slipping, or disconnected water line fitting
• Reduced water pressure or no water flow to the dispenser
• Error codes related to water flow from the refrigerator diagnostics

 This OEM LG part is also compatible with Sears/Kenmore refrigerators.

The Clip is an OEM part for LG refrigerators. This clip secures the water tube in place, preventing it from moving or becoming disconnected. It plays a crucial role in maintaining the proper flow of water to the ice maker and water dispenser.

Causes of a bad water tube clip can include physical damage, wear and tear from regular use, or brittleness due to temperature fluctuations. If the clip fails, it can result in leaks or disconnections, disrupting the water supply.

Symptoms of a bad water tube clip include:

• Water leaks inside or outside the refrigerator
• The water tube becoming loose or disconnected
• Reduced or no water flow to the ice maker or water dispenser

This OEM LG part is also compatible with Sears/Kenmore refrigerators.
