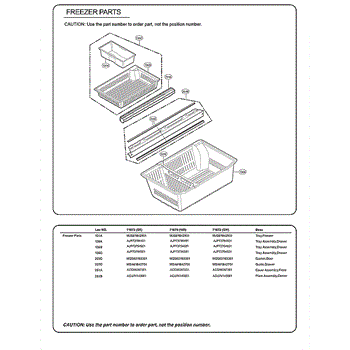

Parts for Kenmore Elite 79571079014: Freezer Parts

This is a replacement screw designed to secure appliance components where the original customized fastener is required. It restores proper fit and stability for panels, brackets, or assemblies that use this specific fastener. What it does:

• Replaces a missing, stripped, or damaged customized screw to restore secure attachment of parts.
• Helps eliminate rattling, loose panels, or misaligned assemblies caused by a faulty fastener.
• Matches the OEM mounting point to maintain correct part alignment and function.
• Suitable where the appliance design calls for this specific customized screw type.

• Turn off and unplug the appliance before servicing to avoid shock or injury.
• Use the correct screwdriver or bit to avoid stripping the screw head; do not force.
• Keep track of small parts during disassembly and reassembly; work on a stable surface.
• If threads are damaged or the mounting hole is stripped, inspect the mating component for repair before installing the new screw.

This mounting screw secures panels and small components on compatible LG appliances, restoring fit and stability for loose or rattling parts. A simple replacement that helps prevent further wear and noise from unsecured pieces. What it does

• Fastens trim, panels, brackets or small assemblies to the appliance chassis
• Restores secure fit when original screws are missing, stripped or damaged
• Helps eliminate rattling, vibration noise and misaligned panels
• Works where the original factory screw has corroded or worn

• One mounting screw

• Turn power off and disconnect the appliance before beginning any repair
• Use the correct screwdriver or bit to avoid stripping the head
• Tighten until snug; avoid over-torquing which can strip threads or crack plastic
• Replace with the correct OEM screw rather than forcing

A general-purpose replacement bolt used to secure appliance components and fasten panels. Restores proper fit and helps eliminate movement caused by loose or missing hardware for safer, quieter operation. What it does:

• Fastens panels, brackets, and assemblies to keep parts aligned and secure
• Stops rattling, vibration noise, and loose or shifting components
• Replaces corroded, stripped, or missing bolts that can cause misalignment
• Works where the OEM lists a generic "bolt" or common fastener

• Disconnect power and unplug the appliance before starting any repair
• Use the correct driver or socket to avoid stripping the head
• Replace any associated washers or nuts if damaged; secure to proper tightness without over-torquing
• If threads are damaged, repair or replace the mating hardware to ensure a safe fit

The Handle Mounting Stud is an OEM replacement part for LG refrigerator doors. It provides a sturdy mounting point for the door handle assembly. Reliable handle connection and support is crucial for dependable door function and access.

Causes of a faulty stud can include damage from excess weight or impact over time rendering the stud loose or unstable.

Symptoms of a bad stud include:

• Loose or sagging door handle
• Difficulty opening and closing the refrigerator door
• Potential for the handle to detach completely
• Safety concerns if the handle connection fails

This OEM LG replacement stud is also compatible with Sears/Kenmore models.

This customized replacement screw secures appliance components and restores proper fit and function. It's a direct-fit fastener designed for use where the OEM specifies a tailored screw to replace a worn, stripped, or missing fastener. What it does

• Fastens panels, brackets, or assemblies that use a manufacturer-specified customized screw
• Stops rattling or loose parts caused by worn or missing hardware
• Restores secure mounting for affected components
• Matches the OEM shape and thread pattern to prevent damage when used as directed

• Disconnect power and water before starting any repair
• Use the correct screwdriver or bit to avoid stripping the head
• Install by hand initially, then tighten snugly—do not overtighten to avoid thread damage
• Keep removed hardware organized so you replace parts in their original locations

This rear door handle replaces a worn or damaged handle on compatible LG appliances, restoring a secure grip and smooth opening. It's a direct-fit exterior handle that keeps the appliance door operating and looking right. What it does

• Provides a secure gripping point to open and close the appliance door
• Replaces cracked, loose, or broken rear handle hardware
• Restores correct alignment and feel when the door is operated
• Helps prevent further damage to the door edge from makeshift handles

• Power off and unplug the appliance before starting work; remove food or shelves as needed for access
• Keep fasteners and mounting clips; transfer original hardware unless new hardware is explicitly included
• Test door operation and alignment after installation; tighten fasteners evenly to avoid stress

Replacement drain tube assembly that directs wastewater from the appliance tub to the drain pump, restoring proper drainage and helping reduce leaks. Use when the original tube is cracked, kinked, clogged, or visibly leaking. What it does

• Channels wastewater from the tub to the drain/pump for normal draining.
• Maintains a sealed path to help prevent water leaks under or around the appliance.
• Replace when you see pooling water, slow or no drain, or visible damage to the tube.
• Works as the fluid conduit; does not include clamps or pump.

• Disconnect power and water supply before beginning any service.
• Route the tube along the original path and secure with existing clamps or the correct replacement fasteners.
• Avoid kinks, sharp bends, and contact with sharp edges to prevent leaks or premature wear.
• After installation, restore power/water and run a short drain cycle; check all connections for leaks.

This adjustable leveling leg assembly supports and stabilizes your appliance by threading into the base frame. Replacing a worn or missing leg helps you level the unit for smoother, quieter operation on uneven floors.

• Provides height adjustment to level the appliance and distribute weight evenly
• Helps prevent rocking, wobbling, and excess vibration or rattling
• Can improve door alignment and smooth opening/closing when the cabinet is properly leveled
• Useful when a leg is missing, damaged, or threads are stripped

• Disconnect power; if applicable, shut off the water supply
• Use a helper to safely brace or tip the unit; protect flooring when accessing the leg
• Unthread the old leg and hand-thread the new one; tighten as needed
• Adjust front-to-back and side-to-side until stable; all legs bear weight evenly

This replacement freezer tray holds water to form ice and fits into the freezer compartment to restore ice production and keep cubes contained. It's a simple swap that brings back reliable ice-making without tools. What it does:

• Holds water in molded cavities so ice cubes form evenly
• Replaces cracked, warped, or missing trays that leak or fail to produce ice
• Keeps ice contained and easier to remove from the freezer
• Helps prevent spills and pooling inside freezer shelves

• Remove the old tray, clean the cavity area, and slide or set the new tray into place per your freezer's shelf layout
• Wash the tray with warm, soapy water and rinse before first use
• Do not use sharp tools to pry ice from the tray; twist gently or run under cold water to release cubes
• Keep away from direct heat or stovetop surfaces and avoid using abrasive cleaners

A replacement refrigerator shelf assembly that restores a level, stable storage surface for leftover and fresh foods. Designed to replace a damaged, cracked, or worn shelf so you can safely store items and keep the interior organized. What it does:

• Provides a sturdy, level surface for food and containers to sit on
• Replaces cracked, chipped, or shattered glass or a warped shelf frame
• Stops items from sliding or falling when a shelf edge is broken
• Helps restore proper spacing and visibility inside the refrigerator

• Remove food and containers before removing the old shelf
• Wear cut-resistant gloves when handling broken or glass shelves
• Support the shelf while lifting out and during installation to avoid dropping
• Verify fit and seating into the shelf tracks; do not force—confirm alignment before applying weight

The Glass Shelf is an OEM part for LG refrigerators. It provides a durable surface for organizing and displaying items inside the refrigerator and freezer compartments.

Causes of a faulty shelf can include chips or cracks developing from repeated loading and unloading of items over time. Temperature fluctuations may also cause warping.

Symptoms of a problematic glass shelf include:

• Sagging or bowing that prevents proper fitting
• Breaks or weak spots that compromise strength
• Difficulty removing or replacing the shelf

This OEM LG part is also compatible with some Kenmore models.

This guide assembly is a chassis alignment and support piece that helps hold and position internal TV components for proper fit and operation. Replacing a damaged guide restores secure mounting and reduces panel or board movement. What it does:

• Secures and aligns internal TV modules or boards to the cabinet
• Prevents rubbing, vibration noise, and intermittent contact from loose parts
• Helps keep the display and internal assemblies correctly spaced for reliable operation
• Useful when cracked, warped, or broken guides cause misalignment or rattling

• One guide assembly as shown

• Unplug the TV and remove power/antenna cables before starting
• Ground yourself to protect against static-sensitive components
• Use original screws and fasteners; inspect adjacent tabs and mounts for damage during installation

This rail guide assembly replaces a worn or broken slide rail that supports smooth movement of a drawer or component. Restores proper alignment and helps the drawer glide quietly and evenly. What it does:

• Guides and supports the drawer or sliding component along its track.
• Replaces damaged or bent rail sections that cause sticking or uneven movement.
• Reduces scraping, grinding, or noisy operation from a faulty guide.
• Helps restore proper alignment to prevent binding or partial closure.

• One rail guide assembly.

• Disconnect power (and water if applicable) and follow appliance-specific disassembly steps before replacing the rail.
• Basic hand tools are typically required; avoid forcing components to prevent breakage.
• Keep fasteners and any removed parts organized for reassembly.

This guide assembly is a factory-style mounting guide used in TV chassis to position and support internal components, helping maintain correct alignment and stable operation during use and service. What it does:

• Provides a mounting and alignment point for internal TV components to keep assemblies stable
• Helps maintain proper spacing between parts to prevent rubbing, misalignment, or rattling noises
• Can restore correct fit where a damaged or worn guide causes loose panels or shifting components
• Useful when repairing or replacing adjacent parts that rely on the guide for proper positioning

• Guide assembly

• Disconnect power and remove the TV from its wall mount or stand before servicing
• Handle the panel and internal boards carefully to avoid damage; use non-marring tools
• Keep track of all screws and grounding hardware removed during disassembly for reassembly

This rail guide assembly restores smooth, reliable drawer movement by guiding and supporting the slide rail. Replaces a worn or broken guide so freezer/refrigerator drawers open and close without sticking or falling off track. What it does

• Guides the drawer slide rail and keeps the drawer aligned during operation
• Helps stop drawers from binding, sticking, or coming off the rail
• Reduces scraping, grinding, or noisy sliding caused by damaged guides
• Restores proper drawer support so contents remain stable while opening and closing

• Disconnect power before working inside the appliance and remove food, drawers and shelves that block access.
• Remove the old guide and install the new guide using the original mounting screws; match the correct side/orientation before fastening.
• Use common hand tools; avoid forcing parts—if the rail is bent or damaged, replace the rail as well.

This replacement door gasket creates a heat-resistant seal between the oven door and the front frame. A tight seal helps the oven maintain temperature and cook evenly while keeping heat from escaping into the kitchen.

• Seals the oven cavity to reduce heat loss and temperature fluctuations
• Helps improve preheat times and baking performance
• Worn seals can cause heat leakage, longer cook times, or hot air felt around the door
• Cracks, flattening, or fraying indicate the gasket should be replaced

• Disconnect power before servicing; allow the oven to cool completely
• Open the door and carefully release the old gasket from its mounting clips
• Align and press the new gasket into the channel, seating each clip fully
• After installation, check for even contact around the door

A replacement hinge cover that hides and protects the door hinge hardware for a clean look and safer operation. Restores a finished appearance and keeps fingers or clothing from catching on exposed hinge parts. What it does:

• Covers and protects exposed hinge components from dirt and damage
• Keeps hinge hardware out of sight for improved appearance
• Reduces the chance of clothing or fingers catching on the hinge
• Helps maintain smooth door movement by protecting hinge area from debris

• Disconnect power to the appliance before attempting any repair; also shut off water supply if working on a unit with water connections.
• Remove any trim or screws securing the old cover; this part typically snaps or screws into place — keep hardware if reusing.
• Wear gloves to protect hands from sharp edges and to avoid cosmetic damage to the cover.

This hinge cover protects and conceals a refrigerator door hinge for a clean appearance and to help keep dirt and moisture away from moving parts. It restores the cabinet's finished look and helps prevent accidental contact with the hinge. What it does:

• Covers and protects the door hinge assembly from dust, grime and moisture.
• Hides hinge hardware for a neater, factory appearance.
• Helps reduce the chance of clothing or fingers catching on the hinge.
• Used when replacing a damaged, cracked or missing hinge trim piece.

• Designed for a snap- or screw-on installation; align over hinge before securing.
• Turn off power to the appliance and remove food from exposed shelves if working on a refrigerator door to avoid pinch hazards.
• Use basic hand tools; avoid forcing the cover to prevent cracking.
• If hinge hardware is bent or damaged, replace hinge components as needed for proper door alignment.

This door gasket assembly restores the door seal so the appliance holds a tight, reliable seal during use. Replacing a damaged gasket helps stop leaks and maintain consistent temperatures for proper operation. What it does:

• Forms the seal between the door and cabinet to prevent water/vapor or air loss
• Stops common symptoms such as visible leaks, moisture around the door, or poor temperature retention
• Replaces torn, stretched, or hardened gaskets that no longer seat properly
• Helps the appliance run more efficiently by restoring the intended seal

• Disconnect power (and water if applicable) before starting any repair
• Inspect the door and mounting channel for damage or debris; clean surfaces before installing the new gasket
• Seat the gasket evenly around the full door perimeter and secure any retaining clips or screws per OEM guidance

This refrigerator door gasket restores a tight seal around the door perimeter. Replacing a worn seal helps keep cold air in, block warm, humid air out, and maintain proper temperatures and efficiency.

• Creates the compression seal between the door and cabinet when closed
• Helps reduce frost, condensation, and temperature swings
• Replaces gaskets that are torn, cracked, warped, or no longer sealing
• Common symptoms: visible gaps, doors not closing fully, moisture around the door, or longer run times

• Disconnect power before servicing
• Warm the gasket in hot water or with a hair dryer on low to relax folds; do not overheat
• Start at the corners and press the gasket lip into the door liner groove, then work along the sides
• Close the door and check for uniform contact around the perimeter; level/adjust hinges if needed

The Mullion Flipper Assembly is an OEM part for LG refrigerators. This assembly, located between the refrigerator doors, helps seal the space between the doors when they are closed, improving energy efficiency by preventing cold air from escaping.

Causes of a bad mullion flipper assembly can include wear and tear over time, damage from frequent opening and closing of the doors, or issues with the hinges and connectors that secure it in place. A damaged or malfunctioning mullion flipper can lead to temperature inconsistencies and increased energy usage.

Symptoms of a bad mullion flipper assembly include:

• Visible damage or wear on the assembly
• Cold air escaping from between the refrigerator doors
• Increased frost buildup inside the refrigerator
• Higher energy bills due to the appliance working harder to maintain temperature

This OEM LG part is also compatible with Sears/Kenmore models.

This replacement drawer guide restores proper tracking and smooth operation to a refrigerator or freezer drawer. It helps keep the drawer aligned and reduces scraping, sticking, or uneven movement for reliable daily use. What it does:

• Guides the drawer along its track so it opens and closes smoothly
• Replaces a worn, cracked, or bent guide that can cause sticking or misalignment
• Reduces drawer rattling and scraping against the cabinet
• Helps prevent drawer drops or catching when pulling open or pushing closed

• Unplug the appliance or switch off power before servicing to avoid electrical hazards
• Remove the drawer and any screws or retaining clips holding the old guide; keep hardware if it's reusable
• Align the new guide on the track and secure with the original screws or clips; do not force parts into place
• Test the drawer operation before returning contents; recheck alignment and hardware if movement is still obstructed

This door basket restores secure storage on your refrigerator's inner door. It replaces a cracked, loose, or missing bin so bottles and condiments stay organized and easy to access.

• Provides on-door storage for jars, bottles, and condiments
• Snaps into the molded door rails/tabs for a secure fit
• Restores lost capacity and organization when a bin is damaged or missing
• Common symptoms: cracked bin, broken tabs, bin falls off, won't stay level

• Disconnect power and remove items from the door before starting
• Lift the old bin straight up and out of the door slots
• Align the new bin with the slots and press down until fully seated
• The bin is securely engaged before reloading items

This door basket assembly mounts to the refrigerator door to provide secure, convenient storage for bottles, jars, and condiments. Replacing a cracked or loose bin restores usable door storage and helps prevent spills when opening and closing.

• Creates additional door-mounted shelf space for beverages and condiments
• Direct replacement for a damaged, warped, or missing door bin
• Helps keep items organized and reduces tipping during door movement
• Seats on the molded door-liner hooks/tabs when properly aligned

• Remove all items from the existing bin; lift the bin straight up and out of the door-liner slots
• Align the hooks/tabs of the new bin with the intended position and lower until fully seated
• Do not force into place; verify correct location and ensure the bin is securely engaged before loading
• Avoid overloading to prevent stress or cracking

This door basket assembly mounts to the refrigerator door to provide secure, convenient storage for bottles, jars, and condiments. Replacing a cracked or loose bin restores usable door storage and helps prevent spills when opening and closing.

• Creates additional door-mounted shelf space for beverages and condiments
• Direct replacement for a damaged, warped, or missing door bin
• Helps keep items organized and reduces tipping during door movement
• Seats on the molded door-liner hooks/tabs when properly aligned

• Remove all items from the existing bin; lift the bin straight up and out of the door-liner slots
• Align the hooks/tabs of the new bin with the intended position and lower until fully seated
• Do not force into place; verify correct location and ensure the bin is securely engaged before loading
• Avoid overloading to prevent stress or cracking

This door basket assembly mounts to the refrigerator door to provide secure, convenient storage for bottles, jars, and condiments. Replacing a cracked or loose bin restores usable door storage and helps prevent spills when opening and closing.

• Creates additional door-mounted shelf space for beverages and condiments
• Direct replacement for a damaged, warped, or missing door bin
• Helps keep items organized and reduces tipping during door movement
• Seats on the molded door-liner hooks/tabs when properly aligned

• Remove all items from the existing bin; lift the bin straight up and out of the door-liner slots
• Align the hooks/tabs of the new bin with the intended position and lower until fully seated
• Do not force into place; verify correct location and ensure the bin is securely engaged before loading
• Avoid overloading to prevent stress or cracking

This stopper assembly cushions and limits the door travel to prevent slamming and ensure correct door alignment. It restores smooth, controlled closing and helps reduce noise and wear on the door hinge area. What it does:

• Absorbs door impact to prevent hard slams and reduce noise
• Keeps the door from overtravel for consistent alignment
• Helps protect hinge and cabinet edges from damage
• Restores proper door closing feel when worn or broken

• One stopper assembly as shown

• Disconnect power and empty door area before starting repairs
• Access may require removing door trim or inner panel
• Use basic hand tools; avoid forcing the part into place to prevent damage

The Lower Refrigerator Door Hinge is an OEM part for LG refrigerators. This hinge supports the refrigerator door, allowing it to open and close smoothly while maintaining proper alignment. It is designed to handle the weight of the door and ensure a secure and stable operation over time.

Causes of a bad lower refrigerator door hinge can include regular wear and tear, physical damage from overloading or impacts, and gradual loosening over time. A faulty hinge can lead to misalignment, difficulty in opening or closing the door, and potential damage to the door seal.

Symptoms of a bad lower refrigerator door hinge include:

• The door not closing properly or staying open
• Sagging or misaligned door
• Unusual noises when opening or closing the door
• Gaps in the door seal, causing cooling inefficiency

This OEM LG part is also compatible with Sears/Kenmore models.

The Lower Refrigerator Door Hinge is an OEM part for LG refrigerators, designed to support and pivot the refrigerator door, allowing it to open and close smoothly. This hinge is a critical component for the proper alignment and function of the door, ensuring an airtight seal when closed to maintain the internal temperature and efficiency of the refrigerator.

Causes of damage to the lower refrigerator door hinge often include normal wear and tear, excessive force when opening or closing the door, or corrosion due to moisture and cleaning agents.

Symptoms of a bad Lower Refrigerator Door Hinge include:

• Difficulty in opening or closing the refrigerator door.
• A door that hangs unevenly or does not close properly
• Unusual noises during door operation
• Visible wear or damage to the hinge itself.

This OEM LG part is also compatible with some Kenmore models.

This connector assembly secures and drives the freezer drawer bar so the drawer opens and closes smoothly. Replaces a worn or broken bar/gear assembly to restore proper drawer movement and alignment. What it does:

• Transfers drawer motion to the slide mechanism so the freezer drawer glides correctly
• Replaces worn or stripped gears that cause slipping, grinding, or uneven movement
• Secures the drawer bar to the internal slide/track to prevent misalignment or sagging
• Useful when a drawer won't open/close smoothly, catches, or rattles during operation

• Disconnect power before servicing and remove stored items from the drawer
• Generally replaces with basic hand tools; support the drawer while detaching and installing the assembly
• Inspect surrounding slide components for wear and replace if needed for reliable operation

This spanner is the specialized hand tool used to turn and hold slotted nuts, collars, or fittings on compatible appliances, making service and adjustments easier and safer. It gives a secure grip for loosening or tightening components without damaging surrounding parts. What it does:

• Fits and turns slotted or notched appliance fasteners and collars commonly used in assemblies
• Helps hold a component steady while you loosen or tighten the mating fastener
• Reduces slippage and tool marks compared with pliers or improvised tools
• Useful during maintenance tasks such as removing retaining rings, collars, or adjustable fittings

• One spanner tool

• Disconnect power and/or gas and follow all safety precautions before servicing appliances
• Use the correct size spanner engagement to avoid slipping or rounding the fastener
• Apply steady force; do not use cheater bars or excessive torque unless specified by the manufacturer

The Flapper Door Spring is an OEM part for LG refrigerators, designed for the ice dispenser's flapper door mechanism. This spring plays a role in ensuring the flapper door opens and closes properly, providing a tight seal when the ice dispenser is not in use.

Over time, the flapper door spring can lose tension or break due to fatigue or corrosion, leading to issues with the flapper door's operation.

Symptoms of a bad Flapper Door Spring include:

• The flapper door on the ice dispenser fails to close completely
• Ice or frost buildup around the dispenser area
• Difficulty dispensing ice
• Increased energy consumption as the refrigerator works harder to maintain its set temperature

This OEM LG part is also compatible with some Kenmore models.

Left side upper hinge.

Right side upper hinge.

The Dispenser Ice Chute Door is an OEM part for LG side-by-side refrigerators featuring exterior ice and water dispensers. This door guides ice from the storage bin to the access port.

Causes of failure can involve hinge wear reducing tight insulation seals, mineral buildup along tracks impeding smooth operation, or cracking down the center from repeated opening/closing cycles.

Symptoms of a bad ice chute door include:

• Difficulty dispensing crushed ice types or cubes
• Leaks inside the fridge from failed door perimeter seals
• Door remaining partially open or unable to fully close
• Ice backup preventing dispensing when needed

Replace yours today with this genuine OEM LG door to maintain top-quality ice production and on-demand access. Ergonomic design glides open and closed reliably for maximum usability. This replacement part is also compatible with Samsung, GE, and Kenmore side-by-side refrigerators featuring externally mounted dispensers. Proper fit sustains premium performance.

This lever holder is the replacement mounting bracket that secures the door lever so the microwave door operates smoothly and reliably. It restores proper lever alignment to help the door latch and release as intended. What it does:

• Secures the door lever assembly so the door can latch and release properly
• Keeps the lever aligned to prevent binding, sticking, or loose movement
• Helps restore normal door operation and user access to the oven cavity
• Common symptom: door feels loose, lever moves freely, or door will not latch

• Disconnect power before beginning any repair to avoid shock or injury
• Remove the outer cabinet or door trim only as needed to access the lever area
• Handle door components and glass carefully to avoid damage or injury

This dispenser door link connects the dispenser actuator to the refrigerator dispenser door so the door opens and closes smoothly when dispensing. Replaces a worn or broken link to restore proper dispenser door movement. What it does:

• Transfers motion from the dispenser actuator to the dispenser door so the door opens when dispensing
• Keeps the dispenser door aligned for proper sealing and closure
• Can fail if the door won't open, sticks, or the dispenser lever feels loose or disconnected
• Compatible with dispenser assemblies that use a separate plastic/metal link between actuator and door

• Disconnect power to the appliance before starting any work
• Access may require removing the dispenser trim or front housing—keep fasteners organized
• Handle plastic components carefully to avoid cracking; inspect surrounding parts for wear

This holder bracket replaces a damaged or missing mounting support. It secures an internal component so it stays aligned and stable, helping your appliance operate smoothly without looseness or rattling.

• Provides a rigid mounting point to hold a component or assembly in place
• Maintains alignment to reduce vibration, rubbing, and intermittent operation
• Restores support when the original bracket is cracked, warped, or missing
• Common symptoms include a loose/wobbly part, rattling noises, or visible broken tabs

• Disconnect power to the appliance before servicing
• Note the original bracket's orientation and transfer any clips or screws from the old part
• Use existing hardware and tighten fasteners evenly—do not overtighten
• Verify proper fit and alignment before restoring power

The Ice Door Lever Spring is an OEM component compatible with LG refrigerators. It is part of the mechanism that opens and closes the ice door on LG French door refrigerators. Over time, springs can lose resiliency or become misaligned.

Causes may be extensive usage over years or damage like kinking that compromises spring function.

Symptoms of a bad ice door lever spring include:

• The ice door not latching fully when closed
• Difficulty opening or poor balance while moving the door
• The lever rubbing or catching instead of moving smoothly

This OEM LG part is also compatible with Sears/Kenmore side-by-side refrigerators.

This display power control board assembly powers and controls the appliance's user interface so lights, touchpads and status displays operate correctly. It replaces a failed display board to restore normal panel behavior and feedback. What it does

• Supplies power and signal control to the front display and indicator lights.
• Manages button/touch inputs and display output for the control console.
• Common symptom: display or control lights are dim, flicker, or not lighting.
• Common symptom: control panel is unresponsive, buttons do not register, or display shows no information.

• Disconnect power (unplug appliance or shut off breaker) before any service.
• Handle the board carefully and avoid static discharge; use anti-static precautions if available.
• Verify connector orientation and seating before reassembly; do not force connectors.

NOTE: This part also requires software update kit CJT30000002. DO NOT INSTALL WITHOUT UPDATING SOFTWARE. Call for more information.

The Compressor is an OEM part for LG refrigerators. As the primary component that circulates refrigerant to chill the refrigerator and freezer compartments, it is crucial for proper cooling operation. The compressor works with the condenser fan and evaporator coil to regulate temperatures inside the refrigerator.

Causes of a faulty compressor can include gradual breakdown of motor windings, loss of refrigerant pressure over time, or failure of electrical components vital to operation.

Symptoms of a bad compressor are:

• Elevated fridge/freezer temperatures unable to be maintained
• Frost patterns indicating poor or insufficient cooling
• Abnormal vibrations or sounds upon compressor cycling
• Error codes displayed regarding cooling performance

It is also compatible with Sears/Kenmore refrigerator models.


THERMISTOR ASSEMBLY,PTC

The Overload Compressor is an OEM part for LG refrigerators. This part protects the refrigerator's compressor from overheating and potential damage by acting as a safety device. It works by monitoring the compressor's electrical current and temperature. If the compressor operates under conditions that could lead to overheating or overcurrent, the overload protector will cut off the power to the compressor, allowing it to cool down before potentially restarting.

Causes of damage to the Overload Compressor can include power surges, electrical faults within the refrigerator, or a malfunctioning compressor that requires more current than usual to operate.

Symptoms of a bad Overload Compressor include:

• The refrigerator not cooling properly or not cooling at all
• The compressor failing to start, indicated by a clicking sound coming from the back of the refrigerator where the compressor is located.
• The refrigerator or freezer section warming up

This OEM LG part is also compatible with some Kenmore models.

Replacement front cover that restores your appliance's exterior finish and helps protect controls and internal components from everyday wear, spills, and minor impacts, delivering a clean, finished look and proper front-panel fit. What it does:

• Covers and protects the appliance's front area, helping shield controls and wiring from dirt and moisture.
• Restores damaged or cracked front trim for improved appearance.
• Helps maintain proper alignment and fit of the front assembly.
• Common symptom: cracked, chipped, warped, or loose front panel that exposes internal parts or looks worn.

• Disconnect power (unplug or switch off breaker) before starting any repair.
• Basic hand tools (screwdriver set) may be required to remove the old cover and install the replacement.
• Handle edges carefully to avoid cuts; align tabs/clips and secure fasteners snugly but do not overtighten.

This small stopper installs in the refrigerator to limit the travel of a moving component and keep it securely in place. Replacing a broken or missing stopper prevents over-extension and helps maintain smooth, aligned operation.

• Limits the range of motion for a door, bin, or drawer to prevent over-opening or accidental removal
• Helps keep interior components aligned and operating smoothly
• Replace if cracked, missing, or deformed
• Common symptoms: drawer or bin slides out too far, door swings past normal range, or a broken plastic stop is found

• Disconnect power before servicing; remove or support the affected bin/drawer/door
• Note the old stopper's orientation and location before removal
• Transfer and reuse any original screws or clips if applicable
• Snap or fasten the new stopper in place and test for smooth movement

This cabinet roller supports the refrigerator and lets the unit roll in and out of place for cleaning or service. Replace a worn or broken roller to restore smooth movement and help keep the appliance properly positioned.

• Supports the base of the refrigerator and enables rolling movement
• Helps with safe positioning and service access without dragging
• Common failure signs: appliance is hard to move, scraping or rolling noises, a flat-spotted/cracked wheel, or a wheel that won't turn
• Replace when the roller is damaged, seized, or missing

• Disconnect power and shut off water supply; protect flooring before moving the appliance
• With help, pull the refrigerator forward and safely support it to access the roller
• Remove mounting fasteners, install the new roller, and reuse original hardware
• Confirm level and smooth movement before returning the unit to its location

The Drier Assembly is an OEM part for LG refrigerators. This part is responsible for removing moisture and contaminants from the refrigerant. This ensures that the refrigerant circulates effectively and efficiently, preventing damage to other components and maintaining the refrigerator's cooling performance.

Causes of a bad Drier Assembly can include contamination from moisture entering the refrigerant lines, blockages from debris or particulates, and general wear and tear over time that reduces its effectiveness.

Symptoms of a bad Drier Assembly include:

• Reduced cooling efficiency or warm refrigerator temperatures
• Unusual noises from the refrigeration system
• The compressor running continuously or cycling frequently
• Frost buildup on the evaporator coils due to improper refrigerant flow

This OEM LG part is also compatible with Sears/Kenmore models.

This condenser assembly replaces the condenser wiring and support used in compatible refrigerators to restore proper condenser connections and airflow. It helps re-establish electrical routing and secure mounting so the cooling system can run reliably. What it does:

• Replaces damaged or corroded condenser wiring and associated mounting hardware
• Restores electrical connection between condenser components and the control circuitry
• Helps resolve symptoms such as cooling loss, intermittent compressor operation, or visible wiring damage
• Maintains proper condenser positioning for adequate airflow and heat dissipation

• Disconnect power and unplug the appliance before starting work
• Inspect surrounding components (fan, compressor, terminals) for related damage
• Use manufacturer-recommended torque and routing to avoid pinched wires

The Fan Assembly is an OEM part for LG refrigerators. It is responsible for circulating air within the refrigerator and freezer compartments, ensuring consistent cooling and optimal temperature distribution. The fan assembly helps maintain the freshness of your food by evenly distributing cold air.

Common causes of a bad fan assembly include electrical issues, worn-out bearings, or obstructions that prevent the fan from spinning properly.

Symptoms of a bad fan assembly include:

• Unusual noises coming from the refrigerator
• Inconsistent temperatures within the fridge or freezer
• Frost buildup in the freezer
• Refrigerator running continuously or not cooling effectively

This OEM LG part is also compatible with Sears/Kenmore models.

This fan grill assembly is the molded cover that protects the refrigerator/freezer fan and helps direct airflow for efficient cooling. It restores proper air movement and keeps debris away from the fan blade and motor. What it does:

• Covers and protects the evaporator/condenser fan from loose items and debris
• Directs airflow to support consistent cooling and efficient operation
• Reduces fan noise caused by damaged or loose grills
• Prevents accidental contact with the spinning fan blade

• Disconnect power to the appliance before servicing to avoid electrical shock or injury
• Typically secures with screws or retaining clips; keep all fasteners and align tabs before tightening
• Handle the plastic grille carefully to avoid cracking; confirm correct orientation before final install
• If fan or motor damage is present, inspect and replace those parts as needed

The Defrost Control Assembly is an OEM part for LG refrigerators, crucial for regulating the defrost cycle within the unit. This component plays a pivotal role in ensuring that the evaporator coils are periodically defrosted, preventing the build-up of ice that can impede airflow and cooling efficiency.

Causes of a bad Defrost Control Assembly can include electrical failures, sensor malfunctions, or damage to the assembly itself, which can disrupt the defrost cycle.

Symptoms of a bad Defrost Control Assembly include:

• The refrigerator or freezer compartment becoming too warm due to blocked airflow from ice accumulation
• A noticeable build-up of frost or ice on the evaporator coils or in the freezer compartment
• The refrigerator running continuously without cycling off
• Unusual noises coming from the refrigerator as ice builds up and interferes with the fan

This OEM LG part is also compatible with Sears/Kenmore.

The Door Switch is an OEM part for LG refrigerators. It is responsible for detecting whether the refrigerator door is open or closed, allowing the appliance to control the interior light and, in some models, the cooling functions accordingly.

Causes of a bad door switch can include wear and tear from frequent use, electrical issues, or physical damage to the switch mechanism. A faulty door switch can lead to improper operation of the refrigerator's light or cooling system, affecting overall performance.

Symptoms of a bad door switch include:

• Interior light not turning on or off properly
• Refrigerator not cooling properly or running continuously
• Door alarm not functioning correctly
• Intermittent or unresponsive switch operation

This OEM LG part is also compatible with Sears/Kenmore.

The Dispenser Micro Switch is an OEM part for LG refrigerators. It is a component of the ice and water dispensing system, responsible for activating the dispenser when the lever is pressed.

Causes of a bad Dispenser Micro Switch can include mechanical wear from frequent use, failure due to moisture or debris affecting the switch’s contacts, or electrical faults that prevent proper signaling.

Symptoms of a bad Dispenser Micro Switch include:

• The dispenser not releasing ice or water when the lever is pressed.
• Continuous dispensing or dripping after the lever is released.
• Intermittent or no response from the dispenser controls.

This OEM LG part is also compatible with Sears/Kenmore.

This DC fan motor drives the appliance's internal circulation fan to keep air moving where it's needed. Replacing a failing motor restores proper airflow and can resolve noise, non-running, or intermittent fan operation. What it does:

• Powers the fan that circulates air through the appliance and across coils
• Helps maintain stable temperatures by keeping airflow consistent
• Supports defrost performance by preventing stagnant, frost-prone areas
• Symptoms of failure include the fan not running, running intermittently, or making grinding/rattling noises

• 1 DC motor

• Disconnect power before servicing; wear cut-resistant gloves
• Access the fan housing; remove covers/guards and clear any ice or obstructions
• Transfer the fan blade and any grommets/brackets from the old motor to the new one
• Note connector orientation; ensure the blade spins freely and clears the shroud before reassembly and testing

The DC Motor is an OEM part for LG refrigerators. This part circulates air throughout the refrigerator to ensure uniform cooling and maintain optimal temperatures.

Causes of a bad DC motor can include electrical issues such as short circuits or burnt-out windings, physical damage from impact, or wear and tear from regular use.

Symptoms of a bad DC motor include:

• Refrigerator or freezer not cooling properly
• Unusual noises such as buzzing or humming from the motor area
• Evaporator fan not spinning or spinning intermittently
• Increased frost buildup in the freezer

This OEM LG part is also compatible with some Kenmore models.

This motor bracket secures and aligns the appliance motor, providing stable mounting and helping reduce vibration for reliable operation. It's a direct-fit replacement when the existing motor mount is cracked, bent, or loose. What it does:

• Provides a fixed mounting point to keep the motor properly aligned with the drive system
• Dampens movement to reduce vibration and noise during operation
• Prevents motor shift that can cause belt misalignment or rubbing
• Restores secure fastener locations for reliable motor performance

• One motor bracket

• Disconnect power (and water, if applicable) before beginning any repairs
• Use the original fasteners or OEM-equivalent hardware to secure the bracket
• After installation, verify motor alignment and run a test cycle to ensure quiet, vibration-free operation

This motor bracket secures the appliance motor to the cabinet, keeping the motor aligned and stable for reliable operation. It's a direct-fit replacement when the original bracket is cracked, bent, or missing. What it does:

• Provides a secure mounting point to hold the motor in proper position
• Maintains motor alignment to prevent vibration, noise, or premature wear
• Helps ensure attachments (pulleys, fans, or gears) stay correctly engaged
• Commonly replaced when the bracket is damaged, rusted, or deformed

• Disconnect power to the appliance before beginning any repair.
• Verify bracket orientation and fastener locations before removal; retain any original screws or clips unless replacements are provided.
• Handle sharp edges carefully and use proper tools; minimal mechanical skill required.
• Inspect and replace those components as needed for a secure repair.

This lamp cover is the replacement light lens that protects and shields the interior lamp while helping distribute light evenly. It restores proper lighting appearance and protects the bulb from spills, debris, and impact. What it does

• Protects the appliance lamp from food, grease, moisture, and accidental contact
• Diffuses and directs light for more even interior illumination
• Restores a cracked, yellowed, or missing lens that can reduce usable light
• Helps prevent direct contact with the lamp and supports safe operation

• One lamp cover/lens as shown

• Disconnect power to the appliance before starting any repair
• Handle the cover carefully to avoid cracking; use gloves if needed
• Align tabs or mounting slots and snap or secure into place; if fasteners are present, use the correct screwdriver
• If the lamp or socket appears damaged, replace both parts.

A replacement cover motor that powers the refrigerator's dispenser cover, allowing the door to open and close so you can access ice and water. Replaces a worn or failed motor to restore normal dispenser cover operation. What it does:

• Drives the dispenser cover mechanism so the cover opens when dispensing and closes when idle
• Helps keep the dispenser sealed to reduce drafts and prevent pests or debris from entering
• Stops or fails to move when worn, causing a stuck, slow, or noisy dispenser cover
• Works with the dispenser linkage and gears to coordinate cover motion with user controls

• One cover motor

• Disconnect power to the appliance before beginning any repair
• Remove dispenser trim and access panel per your model's service instructions to reach the motor
• Handle gears and linkage carefully; ensure proper alignment during reassembly and test cover operation before finishing

Damper motor support secures the damper motor assembly inside the refrigerator, keeping the air-control damper aligned so it opens and closes correctly. Replacing a damaged support restores proper airflow control and reduces noise. What it does:

• Secures and positions the damper motor assembly so the air-control damper moves smoothly.
• Keeps the motor and damper aligned to help prevent rattling, grinding, or loose motor noise.
• Supports consistent airflow between compartments to assist with even cooling.
• Resolve damper movement problems like the damper not opening or closing fully.

• Disconnect power to the appliance before starting work; remove food and shelves as needed for access.
• Remove the interior access panel to reach the damper assembly; handle plastic tabs and clips gently to avoid breakage.
• Align the motor and damper during reassembly and secure all fasteners; test damper operation before replacing panels and shelving.

This damper motor support replaces a broken or warped mount for the refrigerator's air damper assembly. It holds the damper motor and door securely so the system can meter freezer air into the fresh food compartment.

• Secures and aligns the air damper motor/door within the duct
• Helps ensure proper opening/closing of the damper to regulate airflow and temperature
• Damage can contribute to a warm or too-cold refrigerator and inconsistent temperatures
• May cause clicking or buzzing from the damper area or a visibly loose assembly

• Disconnect power to the refrigerator before servicing
• Access the damper behind the fresh food compartment duct/cover; remove shelves as needed
• Note wiring and orientation; transfer the existing damper motor and door to the new support and reuse fasteners
• Ensure the door moves freely and seals before reassembly; restore power and verify airflow

The Ice Dispenser Door Motor is an OEM part for LG refrigerators. This motor is responsible for the operation of the ice dispenser door, controlling its opening and closing mechanism to allow ice to be dispensed without letting warm air into the freezer.

Symptoms of a bad Ice Dispenser Door Motor include:

• The dispenser door not opening or closing properly,
• Ice not being dispensed when activated,
• Unusual noises coming from the dispenser mechanism.

Causes of ice dispenser door motor failure can include electrical issues such as shorts or wiring problems, mechanical wear over time, or blockages that strain the motor.

This OEM LG part is also compatible with Sears/Kenmore.

The Door Bracket is an OEM part for LG refrigerators. This bracket supports the refrigerator door by providing stability and ensuring proper alignment during opening and closing. It plays a crucial role in maintaining the door’s secure fit, which is essential for maintaining the internal temperature and efficiency of the appliance.

Common causes of a bad door bracket include wear and tear from frequent use, impact damage, or corrosion due to moisture.

Symptoms of a bad door bracket include:

• The refrigerator door not closing properly
• The door sagging or being misaligned
• Unusual noises when opening or closing the door
• Gaps in the door seal leading to temperature inconsistencies

This OEM LG part is also compatible with Sears/Kenmore.

This fan grill assembly is the molded cover that protects the refrigerator/freezer fan and helps direct airflow for efficient cooling. It restores proper air movement and keeps debris away from the fan blade and motor. What it does:

• Covers and protects the evaporator/condenser fan from loose items and debris
• Directs airflow to support consistent cooling and efficient operation
• Reduces fan noise caused by damaged or loose grills
• Prevents accidental contact with the spinning fan blade

• Disconnect power to the appliance before servicing to avoid electrical shock or injury
• Typically secures with screws or retaining clips; keep all fasteners and align tabs before tightening
• Handle the plastic grille carefully to avoid cracking; confirm correct orientation before final install
• If fan or motor damage is present, inspect and replace those parts as needed

This refrigerator sheath heater melts frost from the evaporator so air can circulate freely and the unit can cool properly. Replacing a failed heater helps restore even temperatures and reduce frost buildup in the freezer.

• Warms the evaporator coil during defrost cycles to clear ice
• Helps prevent restricted airflow, warm spots, and long run times
• Common failure symptoms include heavy frost on the evaporator, poor cooling, ice buildup on the back panel, or frequent defrost errors
• May cause sizzling sounds or water under the evaporator area during normal operation after replacement

• Unplug the refrigerator before service; defrost any heavy ice to access parts safely
• Access typically from the rear of the freezer compartment behind the evaporator cover
• Handle heater leads and evaporator fins carefully to avoid damage
• Secure all connectors before reassembly

The Capacitor is an OEM replacement part for  LG refrigerators. It is an electronic component located next to the refrigerator compressor that stores electric charge between cycles of the power supply circuit. The capacitor plays an important role in providing stable starting power to the compressor motor.

Causes of a bad capacitor next to the compressor can include heat distress over thousands of start/stop cycles of the refrigerator.

Symptoms of a bad capacitor include:

• The compressor makes loud buzzing or grinding noises during the operation
• The compressor fails to start or cycles on and off frequently
• Temperature fluctuations inside the refrigerator
• Error codes related to compressor issues

This genuine LG replacement is compatible also with Kenmore Elite model refrigerators

The Compressor Run Capacitor is an OEM part for LG refrigerators. It plays a critical role in the operation of the refrigerator's compressor by providing the necessary electrical boost to start and maintain the compressor's operation.

Causes of a bad compressor run capacitor can include electrical surges, overheating, or simply wear and tear over time. When the capacitor fails, it can no longer deliver the required electrical charge, which impacts the compressor's ability to start and run efficiently.

Symptoms of a bad compressor run capacitor include:

• The refrigerator not cooling properly
• The compressor not starting or running intermittently
• Unusual humming or clicking noises from the compressor area
• The refrigerator cycling on and off frequently

This OEM LG part is also compatible with Sears/Kenmore models.

This fan motor assembly circulates air across the evaporator coils to keep temperatures even inside the refrigerator. Replacing a worn or noisy motor restores proper airflow for consistent cooling performance.

• Drives the evaporator fan to move chilled air through the cabinet and vents
• Helps maintain stable temperatures and reduces frost from stagnant air
• Common symptoms: weak or no airflow, loud or intermittent fan noise, temperature fluctuations, refrigerator section warmer than expected
• Failures may result from worn bearings, moisture exposure, or an open motor winding

• Disconnect power before servicing; wear cut-resistant gloves and eye protection
• Access the fan behind the interior rear panel; remove shelves/drawers as needed and avoid bending evaporator fins
• Note wire connector orientation and mounting order; transfer any reusable hardware from the original assembly as needed
• After reassembly, verify the fan spins freely and confirm operation before reloading the compartment

The Control Board is an OEM component specifically designed for LG bottom-freezer refrigerators. Located within the electrical control housing, this printed circuit board directs critical operations like cooling fans, temperature sensors, and ice/water dispensers. Precise microchip programming optimizes food freshness.

Causes of a bad control board can include moisture damage deteriorating circuits over time, electrical failures inhibiting components, or loose connections preventing communications. Without directing key systems appropriately, the refrigerator cannot efficiently cool food or regulate temperatures.

Symptoms of a bad control board include:

• Abnormal cooling and frosting within the refrigerator compartment
• Inability to adjust temperature settings
• Malfunctioning ice/water dispensers or cooling vents
• Diagnostic error codes appearing

This LG OEM replacement ensures dependable performance through consistent and long-lasting operation. Compatible also with Kenmore bottom-freezer models, it restores full functionality through seamless repairs.

This light lens covers and protects the interior lamp, diffusing brightness for a clean, finished look. Replacing a damaged lens helps keep the bulb or LED safe from bumps and moisture inside the compartment.

• Shields the bulb/LED from impact and moisture
• Diffuses light for more even illumination
• Restores appearance when the original lens is cracked, yellowed, or missing
• Helps ensure a secure fit

• Disconnect power before servicing and let any hot bulb cool
• Remove shelves or bins as needed for access
• Release the locking tabs or slide the old lens to disengage; avoid prying that could crack plastic
• Seat the new lens fully until the tabs engage; do not force

NOTE: The small wire connector features three wires for easy setup. If your original ice maker has 6 wires then order part number AEQ73110205.

The Ice Maker Assembly Kit is an OEM replacement part for LG French door refrigerators. As a comprehensive repair solution, it includes the ice maker, drive motor, assembly, and all necessary mounting hardware.

Symptoms of a bad ice maker assembly include:

• Inability to produce cube ice automatically
• Grinding noise coming from the ice maker area
• Ice not dispensing when the oven is engaged
• Error codes or malfunctions shown on the display

Causes relate to high demand on icemaker parts like mold heating elements or drive motors which cycle 100 times per day. Constant use exceeding 10 years contributes to breakdown in precise fit and function of components.

This indoor fan motor powers the air conditioner's indoor unit blower to move air across the evaporator coil. Replacing a weak or failed motor restores proper airflow for effective cooling and comfort.

• Drives the indoor blower/crossflow fan to circulate conditioned air
• Maintains correct airflow across the evaporator for cooling and dehumidification
• Common symptoms of failure: no or weak airflow, fan won't start or stalls, intermittent operation
• May cause unusual buzzing/grinding noises or the unit shutting down with a fan-related fault

• Disconnect power at the breaker before servicing; allow moving parts to stop
• Remove the indoor unit cover and access panel; note wire harness connections and routing
• Transfer any brackets, insulators, or hardware from the old motor if required
• Ensure the fan wheel spins freely and does not rub before restoring power and testing

The Water Tank Assembly is an OEM part for LG refrigerators. It stores and supplies water for the refrigerator's dispenser and ice maker, ensuring a steady and clean water flow for these features.

Causes of a bad water tank assembly can include mineral buildup from hard water, leaks due to cracks or punctures, or contamination from mold or bacteria if the tank is not regularly cleaned. Over time, wear and tear from repeated use can also lead to failure.

Symptoms of a bad water tank assembly include:

• Water dispenser not functioning properly
• Reduced or no ice production
• Leaks or puddles inside the refrigerator
• Unpleasant taste or odor in the water

This OEM LG part is also compatible with Sears/Kenmore refrigerators.

An in-line union for appliance tubing, this tube connector joins two sections of plastic line to create a secure, leak-resistant connection in the water circuit, ideal for restoring flow after a repair, trim, or reroute. What it does:

• Connects two lengths of compatible plastic tubing to form a continuous run
• Helps maintain proper water delivery through the appliance's water system
• Can address leaks, drips, or loose/failed connections at a splice point
• Useful when replacing, shortening, or rerouting tubing during service

• 1 tube connector

• Disconnect power and shut off the water supply before servicing
• Cut tubing square; ensure ends are clean, round, and free of gouges
• Insert tubing fully into the connector until seated, then perform a gentle pull test
• Restore water and inspect all joints for leaks; use the connector size that matches your tubing's outer diameter

This tube assembly directs water through the appliance, restoring a secure, leak-resistant path when the original line is brittle, kinked, or damaged. Replacing it helps stop leaks and restores normal water flow.

• Routes water from the inlet valve to internal components
• Maintains sealed connections to reduce drips and seepage
• Replaces tubing that is cracked, kinked, or clogged with mineral deposits
• Common symptoms: visible leaks, puddling, low flow, or intermittent water delivery

• Disconnect power and shut off the water supply before servicing
• Place a towel to catch residual water and relieve line pressure
• Note the routing and connection points; transfer any retainers from the old part if needed
• Insert tubing fully into fittings and tug gently to confirm engagement; restore water and check for leaks

This tube assembly directs water through the appliance, restoring a secure, leak-resistant path when the original line is brittle, kinked, or damaged. Replacing it helps stop leaks and restores normal water flow.

• Routes water from the inlet valve to internal components
• Maintains sealed connections to reduce drips and seepage
• Replaces tubing that is cracked, kinked, or clogged with mineral deposits
• Common symptoms: visible leaks, puddling, low flow, or intermittent water delivery

• Disconnect power and shut off the water supply before servicing
• Place a towel to catch residual water and relieve line pressure
• Note the routing and connection points; transfer any retainers from the old part if needed
• Insert tubing fully into fittings and tug gently to confirm engagement; restore water and check for leaks

Located in the left refrigerator door on french door models.

The Water Valve Assembly is an OEM part for LG refrigerators. It is essential for controlling the flow of water to the ice maker and the water dispenser. This solenoid-operated valve responds to signals from the refrigerator’s electronic control system to accurately manage the release of water, ensuring efficient operation and reliability.

Symptoms of a bad Water Valve Assembly include:

• The ice maker not producing ice or producing very small cubes
• The water dispenser not functioning or dispensing a trickle instead of a steady flow
• Water leaking from the refrigerator

Causes of a bad water valve assembly can stem from mineral deposits that clog the valve, electrical failures that impair the valve’s operation, or wear and tear from normal usage leading to leaks or malfunctions.

This OEM LG part is also compatible with Sears/Kenmore.

Note: Flow meter is not needed on all models, remove if necessary. Redesigned single valve replaces older dual solenoid valves. Wiring harness is included. Located behind the refrigerator.

The Filter Assembly, Head is an OEM replacement part for LG refrigerators. As an essential filtration component, the filter head houses the water filter and is responsible for dispensing clean, filtered water through the refrigerator's dispenser. It works to remove contaminants and improve taste.

Causes of a bad filter head can include normal wear and tear over time, mineral buildup within the head that impacts water flow, or damage to the head itself from accidental impact.

Symptoms of a bad filter head include:

• Reduced or slow water flow from the dispenser
• Noticeable declines in water filtration effectiveness
• Leaks or water damage around the filter head area

This OEM LG part is also compatible with select Sears/Kenmore brand models.

The Water Filter Bypass is an OEM part for LG refrigerators. It is used when you choose not to use a water filter in your refrigerator. This bypass plug allows water to flow directly to the dispenser and ice maker without being filtered, ensuring continuous operation even when a filter is not installed.

Causes of a bad water filter bypass can include damage to the bypass plug, clogging from debris, or wear and tear over time. If the bypass plug is not functioning properly, it can disrupt the water flow and lead to issues with the ice maker and water dispenser.

Symptoms of a bad water filter bypass include:

• Reduced water flow or no water flow to the dispenser
• Ice maker not producing ice
• Water leaks around the bypass plug area

This OEM LG part is also compatible with Sears/Kenmore.

This replacement pipe holder secures a small appliance pipe or tube in place, reducing movement and vibration to help prevent noise, wear, or accidental disconnection. It restores proper routing and support for the pipe. What it does:

• Secures a pipe or tubing to the appliance frame or chassis to keep it from shifting
• Reduces rattling or vibration caused by loose plumbing or tubing
• Helps maintain proper alignment to avoid chafing or contact with other components
• Useful when a cracked, broken, or missing clip allows pipe movement

• Turn off and unplug the appliance before accessing internal components
• Remove any panels or covers to reach the pipe clip location
• Snap the clip over the pipe into the existing mounting tab; replace any damaged mounting hardware

This lower ice bank door hinge secures and pivots the freezer's ice bank door so it opens and closes smoothly, helping maintain proper sealing and ice dispensing alignment. Designed as a direct replacement for the original hinge. What it does:

• Supports the ice bank door, providing a stable pivot point for opening and closing
• Keeps the ice bank door aligned to maintain an effective seal and proper operation
• Prevents sagging or binding that can interfere with ice dispensing or door function
• Restores correct door movement after hinge wear or damage

• Use basic hand tools; keep power to the appliance off and unplug before starting
• Handle the ice bank and door carefully to avoid damaging the trim or ice chute
• Reuse original fasteners only if undamaged; replace damaged screws to ensure secure mounting

This door gasket assembly replaces a worn or damaged refrigerator door seal to help restore an airtight seal and maintain proper cooling. A properly seated gasket reduces drafts, moisture intrusion, and energy loss. What it does:

• Seals the refrigerator door to keep cold air in and warm air out.
• Helps prevent frost buildup and moisture accumulation inside the compartment.
• Reduces compressor run time and energy usage caused by a leaking seal.
• Addresses symptoms such as warm spots, visible gaps around the door, or condensation on the door edges.

• Disconnect power to the appliance and remove food from the door area before starting.
• Inspect the door flange for damage and clean the mounting surface to ensure a proper seal.
• Seat the gasket fully into the channel; some models require loosening or removing trim screws to install.
• If the door does not close evenly after installation, check hinge alignment and adjust per the OEM instructions.

This cover lever is a direct-fit replacement part that protects and operates the appliance's lever mechanism, restoring secure lever movement and preventing debris entry. It's a small service part that helps maintain normal door/lever function. What it does:

• Covers and protects the lever assembly from wear and debris
• Provides the proper surface for the lever to engage and operate smoothly
• Replaces cracked, broken, or missing lever covers that can catch or stick
• Helps restore proper user control when lever trim is damaged

• One cover lever (single piece)

• Disconnect power before performing any service
• Installation is typically a panel-level repair; remove access panel or trim to reach the lever area
• May snap or screw into place; keep fasteners and alignment tabs in mind during reassembly
