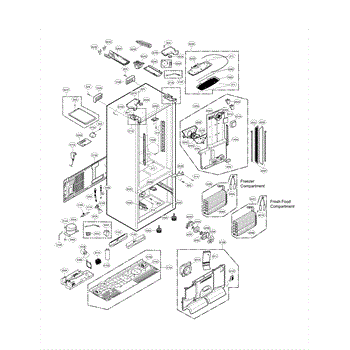

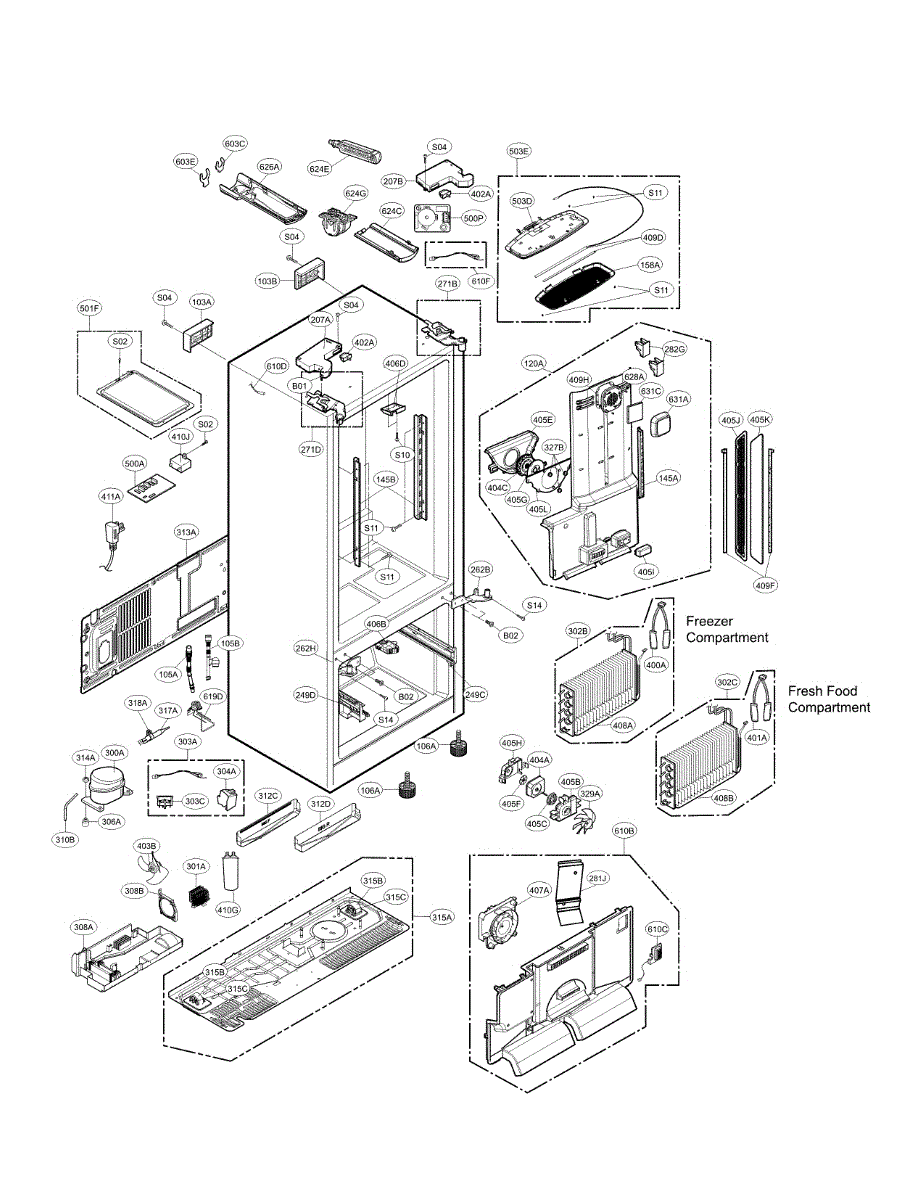

Parts for Kenmore Elite 79572043315: Case Parts

This replacement screw secures specified panels or components inside your appliance. Refreshing worn or missing hardware helps restore a tight fit, reduce rattling, and keep assemblies properly aligned for reliable performance.

• Provides secure fastening for brackets, panels, or internal assemblies
• Replaces stripped, rusted, or lost hardware
• Helps reduce vibration and rattling noises
• Symptoms include loose panels, shifting components, or a screw that won't tighten

• Disconnect power and allow any hot surfaces to cool before servicing
• Wear cut-resistant gloves and eye protection
• Match length and thread to the original; replace like-for-like
• Start threads by hand to avoid cross-threading; do not overtighten

This is a genuine replacement screw used to secure appliance panels and components. It restores proper fastening so panels and assemblies stay aligned and operate safely. What it does:

• Fastens panels, brackets, and small assemblies to maintain structural integrity
• Replaces missing or stripped screws that cause rattling or loose parts
• Helps stop vibration-related noise when used in its original mounting locations
• Matches the OEM fit to ensure proper alignment and clearance

• Use the correct screwdriver or bit to avoid stripping the head
• Tighten until snug; do not overtighten to prevent thread or component damage
• Disconnect power to the appliance before working on electrical components
• Replace all matching fasteners for even fit

This hinge bolt secures the hinge to the appliance cabinet or door, keeping alignment true and motion smooth. Replacing a stripped, missing, or corroded bolt helps restore proper door operation and reliable closing.

• Fastens the hinge to support and stabilize the door
• Helps maintain alignment for smooth opening and closing
• Replaces damaged, stripped, or missing hardware

• Disconnect power to the appliance; shut off water supply if applicable
• Support the door to prevent strain on remaining hardware; enlist a second person if needed
• Note the order/orientation of any shims or washers and transfer them during reassembly
• Start threads by hand to avoid cross-threading; tighten securely without overtightening

This screw is a direct-fit replacement fastener that secures panels, brackets, and internal components. Replacing a missing or stripped screw helps stop rattling and keeps parts aligned for reliable operation. What it does:

• Secures panels, trim, brackets, or internal components to restore proper fit
• Replaces missing or damaged hardware that can cause rattling or loose parts
• Restores alignment so doors, shelves, or assemblies operate smoothly
• Provides a straightforward hardware fix without replacing larger assemblies

• Use the matching screwdriver or driver bit to avoid stripping the head
• Do not overtighten — snug until seated to avoid damaging threads or plastic parts
• Disconnect power or follow appliance safety instructions before servicing electrical areas
• Keep removed hardware organized and save any damaged parts for inspection

The Handle Mounting Stud is an OEM replacement part for LG refrigerator doors. It provides a sturdy mounting point for the door handle assembly. Reliable handle connection and support is crucial for dependable door function and access.

Causes of a faulty stud can include damage from excess weight or impact over time rendering the stud loose or unstable.

Symptoms of a bad stud include:

• Loose or sagging door handle
• Difficulty opening and closing the refrigerator door
• Potential for the handle to detach completely
• Safety concerns if the handle connection fails

This OEM LG replacement stud is also compatible with Sears/Kenmore models.

This is a customized screw used to secure components in LG appliances. It replaces a worn or missing fastener to restore proper assembly and reduce rattling or loose panels. What it does:

• Secures panels, brackets, or small components in the appliance chassis
• Helps stop vibration-related noise caused by loose fasteners
• Replaces missing or stripped screws to restore safe, stable assembly
• Matches OEM fit for the specific mounting point it was made for

• Use the correct screwdriver or driver bit to avoid stripping the head
• Tighten until snug; avoid over-torquing which can damage threads or parts
• Disconnect power and follow appliance-specific safety procedures before servicing

This rear door handle replaces a worn or damaged handle on compatible LG appliances, restoring a secure grip and smooth opening. It's a direct-fit exterior handle that keeps the appliance door operating and looking right. What it does

• Provides a secure gripping point to open and close the appliance door
• Replaces cracked, loose, or broken rear handle hardware
• Restores correct alignment and feel when the door is operated
• Helps prevent further damage to the door edge from makeshift handles

• Power off and unplug the appliance before starting work; remove food or shelves as needed for access
• Keep fasteners and mounting clips; transfer original hardware unless new hardware is explicitly included
• Test door operation and alignment after installation; tighten fasteners evenly to avoid stress

The Drain Pipe Assembly is an OEM replacement part for LG refrigerators. It is a plastic tubing system that collects and removes liquid condensation from evaporator coils. Proper drainage is crucial to minimizing frost buildup and ensuring optimal cooling of food storage areas.

Symptoms of a bad drain pipe assembly include:

• Excessive frost or ice accumulation inside the refrigerator
• Puddling or leaks detected near evaporator housing
• Slow draining allowing water to pool versus emptying fully
• Cracks or breaks in the tubing prevent complete fluid removal

Causes are typically mineral sediment clogging drainage paths or deteriorating plastic from constant use. This OEM LG replacement pipe restores reliable condensate removal to maintain peak efficiency.

This OEM LG part is also compatible with Sears/Kenmore.

The Leveling Leg is an OEM part for LG refrigerators. It is one of the four legs at the bottom corners that elevate and provide stability to the entire appliance.

Causes of failure can be broken mounting points that no longer provide secure elevation, full compression of the built-in cushioning, or damage from impact on an unlevel floor.

Symptoms of a faulty leveling leg include:

• Excessive shaking or vibrating of the refrigerator
• Door alignment issues where doors are difficult to open or close fully
• Visible leaning or misalignment of the refrigerator cabinet

This OEM LG part is also compatible with some Kenmore models.

This duct assembly channels and seals airflow inside the refrigerator, helping deliver cold air to the right places for steady, even temperatures. Replace a cracked or warped duct to restore proper air circulation and cooling performance.

• Directs cooled air from the evaporator through the cabinet to maintain set temperatures
• Helps seal and separate airflow paths to prevent temperature swings and condensation
• Provides a mounting path and pass-throughs for related components, depending on model design
• Helps with symptoms like uneven cooling, weak airflow from vents, frost/ice near vents, or a loose/rattling rear panel

• Disconnect power before servicing; remove food from the affected compartment
• Take out shelves/drawers and inner paneling as needed to access the duct
• Transfer any reusable parts (e.g., seals, sensors, clips) from the old duct
• Ensure foam seals sit flat and vents are unobstructed before reassembly and restoring power

A replacement freezer tray that restores a level, secure surface for frozen foods and helps contain spills in the freezer compartment. Fits where the factory storage pan has cracked, warped, or failed. What it does:

• Provides a flat, durable surface to hold frozen foods and packages
• Contains minor spills to help keep the freezer interior cleaner
• Replaces cracked, warped or broken freezer pans that no longer seat properly
• Helps maintain organized storage and prevents items from shifting

• Disconnect power to the appliance before any service to avoid electrical hazards
• Remove food, shelves, and drawers that block access to the tray area
• Slide or snap the tray into place; do not force—verify it seats securely and level

A small protective cap that covers and protects a component connection or opening from dirt and moisture, helping maintain proper function and prolong component life. Simple replacement when the original cap is cracked, missing, or worn. What it does:

• Covers exposed fittings, terminals, or openings to keep out debris and moisture
• Helps prevent leaks or contamination at the sealed connection
• Restores a secure fit when the original cap is cracked, split, or degraded
• Commonly used where a small, removable protective seal is required

• Inspect mating surface and surrounding gasket/seal before installing; replace other damaged parts as needed
• Press the cap firmly into place until fully seated; no special tools usually required
• Wear gloves and disconnect power or water supply if working near energized or pressurized components

This door stopper replaces the small hinge stop that limits door swing and helps the door close and latch properly. It restores correct door alignment and prevents the door from swinging past its intended range. What it does:

• Acts as a mechanical stop on the door hinge to control opening angle and reduce stress on the hinge
• Helps the door close smoothly and remain properly aligned
• Commonly replaces a cracked, worn, or missing stopper that allows over-rotation or uneven closing
• Can reduce noise and wear caused by a loose or shifting door

• Disconnect power to the appliance before servicing to avoid injury
• Replace like-for-like; removal may require removing the hinge trim or screws—keep fasteners organized
• Inspect adjacent hinge components and seals for wear while the door is removed

The Shelf Assembly is an OEM replacement part for LG refrigerators. It provides a movable shelf surface for organizing and storing items in the refrigerator or freezer compartment.

Symptoms of a bad shelf assembly include:

• Sagging or bowing of the shelf surface
• Difficulty in moving or removing the shelf
• Damage or cracks in the frame or wire grid
•  Inability to bear weight as intended

Causes of failure can be repeated overloading, accidental impacts, or normal wear and tear over time.

This authentic LG shelf assembly is also compatible with refrigerators by Kenmore models.

The Drawer Tray Assembly is an OEM part for LG French door refrigerators. It consists of the removable tray and frame that make up the refrigerator's freezer drawer storage compartment. The tray assembly is designed to provide organization and easy access to frozen items tucked away in the bottom drawer.

Symptoms of a bad drawer tray assembly include:

• Difficulty opening or closing the freezer drawer
• Noisy drawer operation
• Cracked or broken tray ledges
• Poor seal allowing cold air leakage

Causes can be normal wear and tear over time, or damage from accidentally dropping heavy items or forcing a stubborn drawer.

This genuine LG tray assembly is also compatible with some Kenmore French door freezers.

This drawer tray assembly is the platform that supports a refrigerator storage drawer and guides it along the slides. Replacing a cracked or damaged tray restores smooth operation, proper alignment, and dependable support for your food items.

• Supports the drawer bin and its contents inside the compartment
• Interfaces with the slide/rail system for smooth in-and-out travel
• Helps maintain proper alignment so the drawer opens and closes fully
• Common symptoms: cracked or broken tray, broken tabs, wobbling drawer, sticking/binding, or difficulty closing

• Disconnect power and empty the drawer before service
• Remove the drawer per your model's instructions; release tabs or screws securing the tray
• Position the new tray, ensuring tabs/rollers seat correctly; reinstall any fasteners
• Reinstall the drawer and check for smooth travel before reloading

The Drawer Tray Assembly is an OEM part for LG French door refrigerators. It consists of the removable tray and frame that make up the refrigerator's freezer drawer storage compartment. The tray assembly is designed to provide organization and easy access to frozen items tucked away in the bottom drawer.

Symptoms of a bad drawer tray assembly include:

• Difficulty opening or closing the freezer drawer
• Noisy drawer operation
• Cracked or broken tray ledges
• Poor seal allowing cold air leakage

Causes can be normal wear and tear over time, or damage from accidentally dropping heavy items or forcing a stubborn drawer.

This genuine LG tray assembly is also compatible with some Kenmore French door freezers.

This rail holder secures a slide/rail assembly so a shelf or drawer tracks smoothly and stays in place. It restores proper support and alignment for the rail to prevent sagging or detachment. What it does:

• Retains and supports the rail or slide so the drawer/shelf tracks correctly
• Prevents the rail from slipping out or disconnecting during use
• Restores stable operation when a mounting point is cracked or worn
• Common symptom: drawer or shelf falls, slips, feels loose, or rattles

• One rail holder

• Disconnect power and remove contents from the area before starting
• Installation may require basic tools (screwdriver); keep fasteners from the original part
• Handle nearby shelves, glass, and sharp edges carefully to avoid damage or injury

This guide assembly restores smooth, stable sliding for a freezer/refrigerator drawer or shelf track so drawers open and close without catching or falling out of alignment. It replaces worn or broken rails that cause noisy or rough operation. What it does

• Provides the sliding track and mounting interface that guides a drawer or shelf along its travel
• Replaces cracked, bent, or worn rail sections that cause sticking, misalignment, or dropped drawers
• Restores proper engagement so drawers slide smoothly and stay securely supported
• Helps eliminate scraping, grinding, or noisy movement from damaged guide hardware

• One guide assembly

• Disconnect power to the appliance before servicing to avoid injury
• The part number matches the existing rail before installation
• Basic hand tools are typically required; keep fasteners for reuse unless replacement provided
• Follow OEM instructions for removal and reassembly to ensure correct alignment and function

This rail guide assembly restores smooth, stable sliding for a refrigerator or freezer drawer. It supports the drawer track so the drawer opens and closes without sticking, binding, or misaligning. What it does:

• Guides and supports the drawer on its track for consistent movement
• Keeps the drawer aligned to prevent binding and uneven wear
• Reduces noise and rough operation caused by a damaged or worn rail guide
• Helps prevent the drawer from coming off the track during normal use

• Disconnect power to the appliance and remove the drawer per the manufacturer's instructions before installing
• Inspect surrounding track and mounting points; replace any broken clips or fasteners
• Hand-fit the guide first, then secure hardware without over-tightening to avoid cracking plastic parts
• Test drawer travel after installation to ensure smooth, full-range movement

This fresh room tray assembly replaces the crisper drawer tray that holds fruits and vegetables, restoring proper storage and organization in the refrigerator's fresh/produce compartment. Durable plastic construction supports produce and helps keep the fresh room tidy. What it does:

• Provides the flat tray surface for the fresh/produce compartment so drawers slide and store items securely
• Restores proper support if the original tray is cracked, warped, or broken
• Helps prevent items from falling into lower compartments and keeps produce organized
• Replaces worn or damaged trays that interfere with drawer movement or sealing

• Unplug or disconnect power to the refrigerator before servicing for safety
• Remove contents and the crisper drawer before installing the replacement tray
• Slide or snap the tray into the existing tracks/locator tabs; no special tools typically required
• If the tray does not seat smoothly, verify track alignment and avoid forcing parts to prevent damage

This rail connector secures a slide rail to its mounting point, keeping the rail aligned and stable so the assembly moves smoothly. Replace a cracked, worn, or missing connector to restore proper tracking and support.

• Joins the slide rail to its bracket or panel to maintain alignment and support
• Helps the rail travel smoothly without binding or coming off track
• Replaces broken, warped, or missing connectors that allow rails to loosen
• Typical signs of failure: rail separates, wobbles, sags, or won't stay engaged

• Disconnect power to the appliance; remove items to access the rail safely
• Remove the drawer/shelf and rail as needed to reach the connector
• Release locking tabs or fasteners, transfer the rail to the new connector, and seat it fully
• Reinstall components and test for smooth travel; wear gloves to protect hands from sharp edges

This connector joins two sections of the refrigerator's water tubing to create a secure, leak-resistant seal. Replace a cracked or loose connector to restore proper water flow to the dispenser and ice maker.

• Provides a sealed union between two water tubes in the appliance's water system
• Helps prevent air and water leaks that can impact dispenser and ice maker performance
• Typical failure signs include drips or puddles near the connection, visible seepage, or moisture alerts
• Also causes low/no dispenser flow or small or hollow ice cubes

• Disconnect power and shut off the water supply; dispense water to relieve line pressure
• Prepare tubing with a clean, square cut; insert each tube fully into the connector until seated, then pull-test to retention
• Restore water and check all joints for leaks; purge air by dispensing water before normal use

This slide rail supports and guides a refrigerator drawer so it opens and closes smoothly. Replacing a worn or cracked rail restores proper alignment and glide to prevent bins from binding, tilting, or popping out of the track.

• Provides the track the drawer/bin slides on
• Maintains drawer alignment and supports the bin during use
• Helps ensure smooth, even travel in and out
• Common failure signs: drawer hard to open/close, crooked or sagging bin, drawer comes off track, visible cracks or damage to the rail

• Disconnect power and remove the affected drawer/bin before starting.
• Remove screws securing the old rail; install the new rail in the same position and orientation.
• Transfer any reusable stops/caps from the original rail if applicable.
• Reinstall the drawer and verify smooth operation before reloading.

This Tray Cover Assembly replaces a damaged or missing ice tray cover to help keep ice contained and protected inside the freezer. It restores the proper fit and helps prevent spills and ice contamination. What it does:

• Covers and protects the ice tray/ice bin to keep ice clean and contained
• Guides ice dispensing and helps maintain proper ice storage alignment
• Commonly replaced when cover is cracked, warped, loose, or missing
• Can reduce accidental spills when removing the ice bin or tray

• One tray cover assembly as shown

• Disconnect power before servicing and work with a dry, empty bin to avoid spills
• Remove the ice bin/tray per your refrigerator's service instructions to access the cover
• Handle clips and tabs gently—plastic parts can be brittle at low temperatures

This cover assembly replaces a damaged or missing rear housing panel on compatible LG flat-panel TVs, restoring the set's protection and appearance. It provides the outer shell that houses internal components and mounts to the TV chassis. What it does

• Replaces the TV's rear housing to protect internal circuit boards, power supply, and connectors.
• Restores proper mounting points for internal components and external ports.
• Helps prevent dust and debris from entering the TV and interfering with electronics.
• Improves appearance by replacing cracked, warped, or discolored rear panels.

• High-level repair: remove stand and disconnect all power and cables before starting.
• Support the screen and internal components when removing the old cover to avoid stress on the panel.
• Use appropriate non-marring tools and keep track of screws and clips; some fasteners may be reused.

This guide assembly is a replacement plastic mounting guide that helps align and secure TV internal components and panels for stable operation and fit. Replacing a damaged guide restores proper panel alignment and reduces rattles. What it does

• Positions and supports TV panels or internal modules to maintain correct alignment
• Keeps components from shifting, which can cause rubbing, noise, or uneven gaps
• Helps ensure consistent fit of the bezel and display assembly after reassembly
• Restores secure mounting where original guide is cracked, broken, or missing

• One guide assembly

• Disconnect power and remove the TV from its stand or wall before starting
• Partial disassembly of bezel or rear cabinet is typically required; keep track of screws and clips
• Handle the panel and internal cables carefully to avoid damage; wear an anti-static wrist strap if available
• Test fit before final reassembly and power-up to proper alignment

This guide assembly replaces the internal guide that helps align and support the TV panel and internal components, restoring proper fit and reducing rattles or misalignment. It's a straight swap for damaged or worn guides. What it does:

• Holds and aligns the display panel and internal modules to maintain correct spacing and fit
• Prevents panel movement that can cause rubbing, rattling, or uneven gaps
• Restores secure mounting after impact or wear that bent or broke the original guide
• Helps ensure proper chassis alignment for accurate screen placement and service access

• Disconnect power and remove the TV from its stand or wall before servicing
• Handle the display panel and internal cables carefully to avoid damage
• Use appropriate screwdrivers and keep fasteners organized for reassembly

This rail guide assembly supports and guides a refrigerator drawer along its slide track. Replacing a worn rail restores smooth, even movement and helps the drawer close properly without binding or coming off track.

• Guides the drawer along the slide path for smooth opening and closing
• Maintains alignment to keep the drawer level and stable
• Common symptoms of failure: sticking, rough or noisy travel, tilting, coming off track, or not closing fully
• Damage or wear to the rail can prevent proper drawer operation

• Disconnect power and remove drawer contents before servicing
• Pull out and remove the drawer/basket to access the rail
• Unfasten and remove the old rail; retain and transfer any mounting hardware or clips if needed
• Secure the new rail and test drawer travel for smooth, even operation

This rail guide assembly restores smooth, stable movement for a dishwasher or appliance rack/drawer. It replaces a worn, cracked, or damaged guide so trays slide in and out without sticking or leaning. What it does:

• Guides and supports the appliance rack/drawer during travel for consistent alignment
• Prevents sticking, sagging, and uneven movement caused by broken or worn guides
• Reduces noise from rubbing or misaligned racks as the drawer opens and closes
• Helps maintain proper rack height and positioning for full drawer travel

• Disconnect power and remove contents from the rack/drawer before starting
• Inspect the mounting area and any retaining clips for wear; replace clips if damaged
• Typically secures with clips or screws—use basic hand tools and avoid overtightening
• Test rack movement after installation to ensure smooth operation and correct alignment

This rail guide assembly keeps a refrigerator drawer aligned and sliding smoothly, restoring secure support and quieter operation for fresh-food or freezer drawers. It replaces worn or broken guides that let drawers stick or fall out. What it does:

• Guides the drawer along its slide for smooth, even movement
• Restores proper alignment to prevent sticking, sagging, or falling
• Reduces rattling and noise caused by a damaged or loose guide
• Works with the drawer slide system to maintain full travel and support

• One rail guide assembly

• Turn off power to the appliance and remove stored items before starting
• Remove the drawer and old guide per your model's service instructions
• Align the new guide to the slide rail and secure with original fasteners; do not force parts
• If screws or clips are missing or damaged, replace them before reassembling

The Freezer Door Gasket is an OEM replacement part for LG refrigerators. It is designed to create a tight seal around the freezer door, helping to maintain the internal temperature by preventing cold air from escaping and warm air from entering. This ensures the freezer operates efficiently and keeps food frozen at the proper temperature.

Over time, freezer door gaskets can wear out or become damaged due to repeated opening and closing, exposure to cold temperatures, or the buildup of dirt and debris. A faulty gasket can lead to temperature fluctuations and increased energy consumption.

Symptoms of a bad freezer door gasket include:

• Frost buildup inside the freezer
• The door not sealing properly
• Increased energy use
• Food not staying properly frozen

This OEM LG part is also compatible with Sears/Kenmore models.

Replace a cracked or missing door bin with this door basket. It mounts to the refrigerator door to hold bottles and condiments, restoring safe, convenient storage and helping the door close properly.

• Attaches to the inner door to organize bottles and small items within easy reach
• Replaces a bin that is cracked, warped, or has broken locking tabs
• Symptoms include: bin falls off, won't stay seated, spills, or difficulty closing the door
• Restores designed door storage capacity and stability

• Unload the door and lift the old bin up and out of the mounting slots
• Align the new basket with the slots and press down until fully seated on both ends
• Do not force; confirm it's locked in before loading items
• Follow appliance safety guidelines; avoid overloading the bin after installation

Color: Stainless

The Door Gasket Assembly is an OEM replacement part for LG refrigerators. This part seals the door and maintains a thermal barrier. Proper compression provides energy efficiency.

Causes of a faulty gasket assembly may involve deterioration as adhesive softens from repeated compression. Mineral deposits accumulated over extended use could also harden material reducing flexibility.

Symptoms of a problematic gasket include:

• Cool air felt leaking from the door
• Moisture visible on seal interface areas
• Temperature fluctuations

This part is also compatible with some Kenmore refrigerator models.

The Gasket Assembly Door is an OEM part for LG refrigerators. This gasket forms a seal around the refrigerator door, preventing warm air from entering and cool air from escaping, thus maintaining optimal temperature inside the refrigerator.

Causes of a bad gasket assembly can include wear and tear over time, damage from frequent opening and closing of the door, or degradation from exposure to various elements. A compromised gasket can lead to inefficiency in the refrigerator's cooling performance.

Symptoms of a bad gasket assembly include:

• Warm air entering the refrigerator
• Increased energy consumption
• Frost buildup inside the refrigerator
• The door not sealing properly or being difficult to close

This OEM LG part is also compatible with Sears/Kenmore models.

The French Door Mullion is an OEM part for LG refrigerators. It is a flap located between the two doors of a French door refrigerator, helping to seal the gap and maintain the internal temperature by preventing warm air from entering when the doors are closed. This component is crucial for energy efficiency and proper functioning of the refrigerator.

Over time, the mullion can wear out or become damaged due to frequent use, impact from door closures, or issues with the hinge mechanism. Causes of a bad French door mullion include wear and tear, physical damage, or a faulty hinge that causes misalignment.

Symptoms of a bad French door mullion include:

• The mullion not folding or unfolding correctly
• Visible cracks or damage to the mullion
• Warm air entering the refrigerator, affecting cooling
• Increased energy consumption

This OEM LG part is also compatible with Sears/Kenmore models.

This drawer guide is the plastic slide that supports and guides a freezer or refrigerator drawer for smooth, stable opening and closing. It replaces a worn or broken guide to reduce sticking, sagging, and drawer misalignment. What it does:

• Supports the drawer on its track so the drawer opens and closes smoothly
• Keeps the drawer aligned to prevent binding, scraping, or uneven movement
• Restores proper engagement with the drawer slide to stop sagging or partial drops
• Helps reduce noise and wear caused by a damaged or missing guide

• Disconnect power or unplug the appliance before accessing interior components
• Remove the drawer and any contents or glass shelves first to avoid breakage
• Typically secures with simple clips or a few screws; do not force parts—line up tabs before seating
• If metal parts are bent or the mating slide is damaged, inspect both sides and replace as needed

The Basket Assembly is an OEM component specifically designed for LG Door-in-Door refrigerators containing bottom-mounted crisper drawers. This integral assembly organizes stored items within the refrigerator doorway.

Symptoms of a bad basket assembly include:

• Cracked or broken perforated shelves
• Detached mounting brackets failing to secure basket
• Warped contours no longer fitting base compartment
• Missing attachments inhibiting proper installation

Causes of failure involve stresses from repeated loading/unloading cycles, mineral buildup weakening plastic brackets over time, or impact damage compromising structural integrity.

Replace yours today with this genuine OEM LG assembly to maintain tidy organizational capacity. Precision slots provide adjustable shelf positioning optimized for produce, snacks, and beverages. Compatible across Samsung, Frigidaire, and GE models featuring removable door crisper baskets.

This refrigerator door shelf bin replaces a cracked or missing bin on the fresh food door. It snaps into the molded slots to restore secure, convenient storage for condiments, jars, and small bottles. What it does:

• Mounts to the inner door liner to hold items and free up shelf space
• Restores door storage capacity when the original bin is damaged or missing
• Common symptoms: cracked plastic, broken tabs, bin falls off, won't stay seated
• Helps keep jars and bottles organized and easy to access

• 1 door shelf bin

• Remove items from the old bin, then lift it straight up to release from the door slots
• Align the new bin's hooks with the door slots and press down firmly until it locks
• Handle plastic carefully and consider wearing gloves to avoid cuts from sharp edges
• Do not force the bin; ensure it's positioned in the correct door location before securing

This refrigerator door shelf bin replaces a cracked or missing bin on the fresh food door. It snaps into the molded slots to restore secure, convenient storage for condiments, jars, and small bottles. What it does:

• Mounts to the inner door liner to hold items and free up shelf space
• Restores door storage capacity when the original bin is damaged or missing
• Common symptoms: cracked plastic, broken tabs, bin falls off, won't stay seated
• Helps keep jars and bottles organized and easy to access

• 1 door shelf bin

• Remove items from the old bin, then lift it straight up to release from the door slots
• Align the new bin's hooks with the door slots and press down firmly until it locks
• Handle plastic carefully and consider wearing gloves to avoid cuts from sharp edges
• Do not force the bin; ensure it's positioned in the correct door location before securing

This refrigerator door shelf bin replaces a cracked or missing bin on the fresh food door. It snaps into the molded slots to restore secure, convenient storage for condiments, jars, and small bottles. What it does:

• Mounts to the inner door liner to hold items and free up shelf space
• Restores door storage capacity when the original bin is damaged or missing
• Common symptoms: cracked plastic, broken tabs, bin falls off, won't stay seated
• Helps keep jars and bottles organized and easy to access

• 1 door shelf bin

• Remove items from the old bin, then lift it straight up to release from the door slots
• Align the new bin's hooks with the door slots and press down firmly until it locks
• Handle plastic carefully and consider wearing gloves to avoid cuts from sharp edges
• Do not force the bin; ensure it's positioned in the correct door location before securing

The Refrigerator Door Shelf is an OEM part for LG refrigerators. It provides additional storage space on the door of the refrigerator, allowing for the organization and easy access of frequently used items such as condiments, beverages, and small containers. It measures approximately 14" x 4" x 4".

Causes of a bad refrigerator door shelf can include general wear and tear from repeated use, overloading the shelf with heavy items, or accidental damage during cleaning or reorganization. Cracks or breakage in the plastic material can also render the shelf unusable.

Symptoms of a bad refrigerator door shelf include:

• Cracked or broken shelf
• Items not staying securely on the shelf
• The shelf not fitting properly into the door brackets
• Difficulty in attaching or removing the shelf

This OEM LG part is also compatible with Sears/Kenmore refrigerators.

The Refrigerator Door Shelf is an OEM part for LG refrigerators. Designed to offer additional storage space, this door shelf seamlessly integrates into the refrigerator door, providing a convenient spot to store jars, bottles, and other condiments.

Over time, door shelves may suffer from wear and tear or become damaged due to overloading or accidental impact. This can lead to cracks, breaks, or a loose fit, which compromises the shelf's ability to hold items securely.

Symptoms of a bad Refrigerator Door Shelf include:

• Visible cracks or breaks in the shelf
• The shelf sagging or unable to hold items securely
• Difficulty fitting the shelf into the door slots
• Items falling through the shelf due to damage or warping

This OEM LG part is also compatible with some Kenmore models.

This stopper assembly mounts on the appliance door to cushion movement and hold the door in position, reducing wear and preventing slamming for smoother, safer operation. Fits as the OEM door stop used on compatible LG models. What it does:

• Cushions door movement to prevent hard impacts and reduce noise
• Holds the door in the open or closed position to prevent unwanted swings
• Helps maintain door alignment and reduces stress on hinges and latches
• Common symptom: door slams, won't stay open, or bangs against the cabinet

• Disconnect power and water before starting any repair
• Remove the door or open access for safe replacement
• Replacement typically requires basic hand tools (screwdriver or nut driver)
• Inspect surrounding hinge/fastener hardware and replace if worn

This door stopper assembly mounts at the hinge to control how far the door opens and promote smooth, consistent closing. Replacing a worn or broken stopper restores proper door swing and helps protect the hinge from overextension.

• Limits the door's opening range to prevent overextension
• Guides and cushions door movement for a smoother close
• Helps maintain door alignment at the hinge area
• Common symptoms: door swings too far, doesn't stop at the usual angle, clicks/binds near the hinge, or visible cracks/wear on the stopper

• Disconnect power to the appliance before servicing
• Support the door and use a helper when loosening hinge hardware
• Note the original orientation and transfer any spacers/shims if present
• Tighten fasteners evenly and verify smooth door operation before finalizing reassembly

The Lower Refrigerator Door Hinge is an OEM part for LG refrigerators. This hinge supports the refrigerator door, allowing it to open and close smoothly while maintaining proper alignment. It is designed to handle the weight of the door and ensure a secure and stable operation over time.

Causes of a bad lower refrigerator door hinge can include regular wear and tear, physical damage from overloading or impacts, and gradual loosening over time. A faulty hinge can lead to misalignment, difficulty in opening or closing the door, and potential damage to the door seal.

Symptoms of a bad lower refrigerator door hinge include:

• The door not closing properly or staying open
• Sagging or misaligned door
• Unusual noises when opening or closing the door
• Gaps in the door seal, causing cooling inefficiency

This OEM LG part is also compatible with Sears/Kenmore models.

The Lower Refrigerator Door Hinge is an OEM part for LG refrigerators, designed to support and pivot the refrigerator door, allowing it to open and close smoothly. This hinge is a critical component for the proper alignment and function of the door, ensuring an airtight seal when closed to maintain the internal temperature and efficiency of the refrigerator.

Causes of damage to the lower refrigerator door hinge often include normal wear and tear, excessive force when opening or closing the door, or corrosion due to moisture and cleaning agents.

Symptoms of a bad Lower Refrigerator Door Hinge include:

• Difficulty in opening or closing the refrigerator door.
• A door that hangs unevenly or does not close properly
• Unusual noises during door operation
• Visible wear or damage to the hinge itself.

This OEM LG part is also compatible with some Kenmore models.

This slide rail guides and supports a single appliance drawer or pull-out door so it opens and closes smoothly and stays aligned. Replaces a worn, bent, or noisy guide to restore proper movement and stability. What it does:

• Provides a rolling/sliding track for a drawer or pull-out door to travel smoothly
• Replaces damaged or worn rail that causes sticking, misalignment, or uneven movement
• Helps keep the drawer properly supported and prevents sagging or binding
• Works as a direct-fit replacement when the original rail is broken or worn

• One slide rail (single left or right guide)

• Disconnect power and empty the drawer before starting repairs
• Typical installation requires removing the drawer and fastening the rail with existing screws or clips
• Inspect mating hardware and replace any stripped screws or broken clips for secure fit

This rail holder is a small mounting bracket that secures a sliding rail or shelf rail inside the appliance, restoring stable support and proper alignment for the rail assembly. It's a direct-replacement style part used where a broken or worn bracket allows the rail to sag or detach. What it does:

• Secures the end of a sliding shelf or drawer rail to the appliance frame for stable movement
• Restores proper alignment when a rail droops, binds, or pulls away from its mounting point
• Prevents the rail from disengaging or falling during use
• Works with the original rail assembly to maintain smooth in-and-out travel

• One rail holder / rail mounting bracket (quantity: 1)

• Disconnect power (or unplug appliance) before starting work and allow any hot surfaces to cool
• Basic hand tools (screwdriver or nut driver) may be required; keep fasteners for reuse unless new ones are provided
• Handle edges carefully; support the rail/shelf while removing or installing the holder to avoid drops or damage

This rail holder is a small mounting bracket that secures a sliding rail or guide to the appliance, restoring smooth movement and proper alignment. It's a direct-fit replacement designed to replace worn or broken rail supports. What it does:

• Secures and supports a sliding rail or guide so drawers/doors move smoothly
• Prevents rail movement that can cause rubbing, sticking, or uneven travel
• Restores proper alignment when a damaged holder causes noisy or wobbly operation
• Helps maintain safe rail attachment to the cabinet or frame

• Disconnect power (or unplug) and move the appliance to a safe, stable position before starting
• Basic hand tools are typically required; save mounting hardware unless replacement is specified
• If mounting screws or clips are damaged, replace them to ensure a secure fit

This slide rail is a direct-fit replacement that restores smooth, reliable movement to a refrigerator or freezer drawer. It replaces a worn or broken glide so the drawer opens and closes without sticking or sagging. What it does:

• Replaces a damaged or worn drawer glide to restore proper sliding action
• Supports the drawer to keep it level and reduce binding or sticking
• Reduces noise from grinding or scraping during drawer movement
• Helps maintain correct drawer alignment for proper sealing and operation

• Verify left/right orientation and part number before installation
• Remove contents and disconnect power if working near electrical components
• Typical installation uses existing mounting points and hardware; save original fasteners when possible

This ice maker gear drives the ejector blades that push ice from the tray into the bin. Replacing a worn or broken gear restores proper harvest cycles and stops grinding or slipping during ejection. What it does:

• Turns the ice maker ejector to release ice cubes during the harvest cycle.
• Stops or reduces grinding noises and slipping when the gear teeth are stripped or damaged.
• Helps restore regular ice production when the ejector no longer rotates.
• Works as the replacement driven gear in compatible LG ice maker gear trains.

• Disconnect power before servicing the ice maker to avoid shock or injury.
• Remove the ice maker assembly to access the gear; follow OEM instructions for disassembly.
• Inspect the mating gear, motor shaft, and ejector assembly for wear—replace additional damaged parts as needed.
• Use the matching part number to ensure fit.

This center hinge assembly replaces the factory center hinge that supports and aligns the refrigerator doors, restoring proper door movement and a tight seal for efficient cooling. It's a direct-fit mechanical hinge used where the upper and lower doors meet. What it does:

• Supports the weight of the upper/lower doors and maintains proper door alignment
• Lets the door pivot smoothly to open and close without binding
• Helps the door seal correctly to prevent warm air leaks and frost buildup
• Stops sagging or uneven door gaps that cause rubbing or poor closure

• One center hinge assembly

• Disconnect power to the appliance before starting work; if the unit has a water line, shut off the water supply as needed
• Support the door while removing and installing the hinge to prevent dropping or damage
• Use basic hand tools; follow the manufacturer service instructions for torque and fastener sequence

This center hinge assembly secures and guides a refrigerator door, restoring proper door alignment and smooth opening/closing. Replacing a worn or damaged center hinge helps stop sagging doors and improves seal integrity for reliable cooling. What it does:

• Supports the center of a refrigerator door and keeps it aligned on the cabinet frame
• Guides door movement to ensure smooth opening and closing
• Restores proper door fit to help maintain an even door seal
• Addresses symptoms such as door sagging, misalignment, scraping or grinding noises from the hinge

• Disconnect power to the appliance before starting any repair.
• Doors are heavy; support the door and use a second person or proper support when removing or installing hinges.
• Keep track of fasteners and hinge shims or spacers; reinstall in the same order and orientation.

This turntable roller ring sits under the glass tray and allows it to rotate smoothly for even heating. Replace a worn, warped, or broken ring to restore stable rotation and consistent cooking performance.

• Supports the glass turntable and rides on built-in rollers for smooth, quiet movement
• Keeps the tray level and centered to promote even heating
• Common symptoms: tray not turning, uneven cooking, scraping/grinding noises, or a wobbly/slipping turntable
• Restores proper interaction between the turntable, drive coupling, and motor

• Unplug the microwave or switch off the breaker before servicing
• Remove the glass tray; lift out the old ring and clean the track
• Place the new ring with the rollers facing down on the track; reseat the tray on the center drive coupling
• Test rotation with a microwave-safe cup of water

The Spanner Wrench is an OEM replacement part for LG refrigerators. This tool allows you to adjust the door hinges to ensure the doors are level and aligned properly. A well-aligned door is crucial for maintaining the internal temperature and efficiency of the refrigerator, preventing energy loss and ensuring food is stored under optimal conditions.

Symptoms that you might need to adjust the door hinges and potentially need this wrench include:

• Doors not closing properly or sealing tightly
• Visible gaps between the door and the main body of the refrigerator
• The refrigerator tilting or not sitting level

This spanner wrench is also compatible with some Sears/Kenmore refrigerators.

This spring restores the correct tension for the connected mechanism so parts move and return as designed. A fatigued or broken spring can cause loose, inconsistent action; replacing it helps recover smooth, reliable performance.

• Provides the return/tension force for the attached assembly
• Helps keep parts aligned and moving smoothly
• Reduces slack that can cause rattling, squeaks, or intermittent operation
• Common signs of failure: stretched or broken spring, weak return action, unusual noise

• Disconnect power; turn off water and/or gas supplies before servicing
• Wear gloves and eye protection—springs can release stored energy suddenly
• Note the original orientation and hook locations; take a reference photo before removal
• Support the linked component and carefully relieve/reapply tension to avoid snap-back

This hinge secures and guides a refrigerator door for reliable opening and closing. It restores proper door alignment to help maintain an airtight seal and prevent sagging or rubbing. What it does:

• Supports the refrigerator door and attaches it to the cabinet frame
• Guides smooth door movement and maintains alignment
• Helps prevent door sag, uneven gaps, and items catching when opening/closing
• Reduces rubbing, scraping or abnormal door noise caused by a worn hinge

• Disconnect power and remove food from the door before starting; support the door to prevent dropping
• Use the factory mounting screws and follow OEM torque and alignment steps
• Check door position and seal after installation; adjust hinge mounting if necessary

Replacement refrigerator door hinge that restores smooth pivoting and proper door alignment, helping the door open and close reliably and maintain an airtight seal to preserve cooling performance. What it does:

• Supports the refrigerator door and allows it to pivot smoothly.
• Replaces worn, bent, or damaged hinges that cause door sag or misalignment.
• Helps reduce noisy or grinding door operation when the hinge is failing.
• Promotes an even door seal to help maintain internal temperature consistency.

• Unplug the appliance and remove food from nearby shelves before starting work.
• Support the door while removing hinge fasteners to prevent dropping or damage.
• Reinstall using the original hardware; align the door and tighten fasteners securely but avoid overtightening.

The LG cap assembly is an OEM replacement part responsible for controlling the opening and closing of the ice dispenser chute on an LG refrigerator. The ice dispenser door assembly is specifically designed to cover and protect the ice dispenser chute, ensuring that ice is dispensed only when desired.

Common causes of a bad cap assembly include accidental impact, wear and tear from regular use, or exposure to temperature fluctuations within the refrigerator. These factors can lead to cracks, breaks, or loosening of the caps, which can compromise their protective function.

Symptoms of a bad cap assembly include:

• Visible cracks or damage to the caps
• Loose or missing caps
• Difficulty in maintaining the proper position of internal components

This OEM LG part is also compatible with Sears/Kenmore.

This LED cover is the clear lens that protects and diffuses the control-panel LED indicators, restoring a clean, readable display and shielding the LEDs from dirt and damage. It fits into the panel opening for a finished look. What it does:

• Covers and protects control-panel LEDs from dust, spills, and impact
• Diffuses LED light for even, readable indicator illumination
• Replaces cracked, cloudy, scratched or missing LED lens that affects display appearance
• Helps keep internal electronics cleaner by sealing the LED area

• One LED cover (lens)

• Disconnect power before starting any repair to avoid shock or damage
• Handle lens carefully to avoid scratches; use non-abrasive cloth for cleaning
• Typical installation uses small screws or snap clips—retain hardware and follow the appliance service manual

This dispenser lever holder is the mounting bracket behind the refrigerator's dispenser paddle. It supports and aligns the lever and switch so water or ice dispenses reliably when the paddle is pressed.

• Holds and guides the dispenser lever and actuator switch inside the dispenser housing
• Provides a secure pivot point for smooth paddle movement
• Helps ensure consistent activation of water and ice dispensing
• Damage can cause a loose or stuck paddle, intermittent dispensing, or no dispense

• Disconnect power and shut off the water supply before servicing
• Remove the dispenser panel/escutcheon to access the lever assembly; note part orientation
• Transfer the lever, switch, and return spring to the new holder and secure with the original fasteners
• Restore power/water and test dispensing before reinstalling trim

This holder bracket replaces a damaged or missing mounting support. It secures an internal component so it stays aligned and stable, helping your appliance operate smoothly without looseness or rattling.

• Provides a rigid mounting point to hold a component or assembly in place
• Maintains alignment to reduce vibration, rubbing, and intermittent operation
• Restores support when the original bracket is cracked, warped, or missing
• Common symptoms include a loose/wobbly part, rattling noises, or visible broken tabs

• Disconnect power to the appliance before servicing
• Note the original bracket's orientation and transfer any clips or screws from the old part
• Use existing hardware and tighten fasteners evenly—do not overtighten
• Verify proper fit and alignment before restoring power

The Dispenser Lever Retainer is an OEM part for LG refrigerators. This part secures the dispenser lever in place, this part ensures the smooth operation of the water and ice dispenser.

Causes of a bad Dispenser Lever Retainer can include normal wear and tear from repeated use, accidental damage, or deterioration of the material over time.

Symptoms of a bad Dispenser Lever Retainer include:

• The dispenser lever is loose or wobbly
• Difficulty in dispensing water or ice
• The lever does not return to its original position after use
• Unintended activation or difficulty in activating the dispenser

This OEM LG part is also compatible with some Kenmore models.

The Ice Door Lever Spring is an OEM component compatible with LG refrigerators. It is part of the mechanism that opens and closes the ice door on LG French door refrigerators. Over time, springs can lose resiliency or become misaligned.

Causes may be extensive usage over years or damage like kinking that compromises spring function.

Symptoms of a bad ice door lever spring include:

• The ice door not latching fully when closed
• Difficulty opening or poor balance while moving the door
• The lever rubbing or catching instead of moving smoothly

This OEM LG part is also compatible with Sears/Kenmore side-by-side refrigerators.

This display power control board assembly replaces the control electronics that power and drive the appliance display and front-panel controls, restoring normal display illumination and responsive touch/key input. What it does:

• Supplies regulated power to the control panel and display components
• Provides the interface for buttons/touch controls and sends signals to the main control board
• Restores display backlight, icons, and status indicators when the original board fails
• Helps resolve symptoms such as a dark or unresponsive display, flickering indicators, or non-functioning front-panel controls

• Disconnect power before starting work to avoid shock or damage
• Handle the board by its edges and avoid touching components or connector pins
• Reconnect all ribbon cables and wire harnesses securely before restoring power

This funnel assembly channels wash water inside the tub to the wash system, helping maintain proper flow and prevent internal leaks. Replace a cracked or missing funnel to restore consistent cleaning performance and reliable operation.

• Directs water flow between the tub and wash/circulation components
• Helps maintain wash pressure for effective cleaning
• Creates a proper water path at its mounting point to prevent internal leaks
• Common signs of failure: visible cracks/warping, water dripping from the area, or declining cleaning results

• Disconnect power and turn off the water supply before servicing
• Remove dish racks and interior panels/filters as needed to access the funnel location for your model
• Transfer any reusable screws, clips, or seals from the old part
• After installation, run a short cycle and check carefully for leaks

This button assembly replaces the physical buttons you press on the appliance's control panel, restoring a consistent click and reliable selections. Swap a worn or stuck button pad to fix unresponsive or intermittent controls.

• Provides the external button pad that actuates the underlying switches on the user interface
• Helps resolve symptoms like unresponsive keys, intermittent operation, sticking buttons, or cracked/damaged caps
• Restores proper tactile feel and accurate selection of functions
• Built to fit the existing control panel housing on the applicable model

• Disconnect power before servicing to prevent electrical shock
• Access the control console; remove retaining screws/clips as directed in your model's service information
• Transfer any model-specific trim/overlays and reuse original mounting hardware as needed
• Align the new button pad with the underlying switches; test operation before full reassembly

This drain decor trim is the cosmetic and protective ring that fits around the appliance drain opening, restoring a clean finished look and helping channel water into the drain. It keeps the area neat and reduces visible wear. What it does:

• Covers and finishes the drain opening for a factory appearance
• Guides water toward the drain to reduce splashing and pooling near the edge
• Replaces cracked, faded, or missing drain trim
• Helps prevent debris from collecting at the drain edge

• High-level: remove lower access panel or kickplate to access drain area as required by your model
• Use gentle hand pressure to snap the trim into place; avoid prying on surrounding surfaces
• If any water lines or electrical components need to be moved to access the drain, disconnect power and water first

NOTE: This part also requires software update kit CJT30000002. DO NOT INSTALL WITHOUT UPDATING SOFTWARE. Call for more information.

The Compressor is an OEM part for LG refrigerators. As the primary component that circulates refrigerant to chill the refrigerator and freezer compartments, it is crucial for proper cooling operation. The compressor works with the condenser fan and evaporator coil to regulate temperatures inside the refrigerator.

Causes of a faulty compressor can include gradual breakdown of motor windings, loss of refrigerant pressure over time, or failure of electrical components vital to operation.

Symptoms of a bad compressor are:

• Elevated fridge/freezer temperatures unable to be maintained
• Frost patterns indicating poor or insufficient cooling
• Abnormal vibrations or sounds upon compressor cycling
• Error codes displayed regarding cooling performance

It is also compatible with Sears/Kenmore refrigerator models.


This evaporator assembly is the internal cooling coil and housing that removes heat from the refrigerator compartment, supporting proper cold temperatures and controlled defrosting. It restores normal cooling performance when the evaporator fails. What it does

• Circulates refrigerant through the evaporator coil to absorb heat from the fresh-food/freezer compartment
• Works with the defrost system to prevent excessive frost buildup on the coil
• Helps maintain consistent compartment temperatures and reduces compressor runtime when functioning correctly
• Common signs it may need replacement: poor cooling, excessive frost or ice on the evaporator, frequent or long compressor cycles

• One evaporator assembly

• Disconnect power to the appliance before starting any repair
• Replacement may require handling sealed refrigerant lines or refrigerant-system work; if refrigerant access or brazing is needed
• Inspect and replace any damaged gaskets or insulation during reassembly to ensure proper airflow and sealing
• Follow manufacturer service instructions and safety guidelines for defrost system and sensor connections

The Thermistor Assembly is an OEM part for LG refrigerators. It serves a crucial function in monitoring and regulating the temperature within the appliance. By sensing temperature changes, the thermistor sends information to the refrigerator’s control board, ensuring the system adjusts cooling to maintain the desired temperature settings.

Symptoms of a failing thermistor assembly include:

• Inconsistent temperatures in the refrigerator or freezer
• Refrigerator running longer than usual or not cooling efficiently
• Frequent fluctuations in temperature readings

Causes of thermistor assembly failure typically involve electrical faults, damage from moisture or frost, or simple wear over time, which can impact its ability to accurately measure and report temperatures.

This OEM LG part is also compatible with Sears/Kenmore.

The Overload Compressor is an OEM part for LG refrigerators. This part protects the refrigerator's compressor from overheating and potential damage by acting as a safety device. It works by monitoring the compressor's electrical current and temperature. If the compressor operates under conditions that could lead to overheating or overcurrent, the overload protector will cut off the power to the compressor, allowing it to cool down before potentially restarting.

Causes of damage to the Overload Compressor can include power surges, electrical faults within the refrigerator, or a malfunctioning compressor that requires more current than usual to operate.

Symptoms of a bad Overload Compressor include:

• The refrigerator not cooling properly or not cooling at all
• The compressor failing to start, indicated by a clicking sound coming from the back of the refrigerator where the compressor is located.
• The refrigerator or freezer section warming up

This OEM LG part is also compatible with some Kenmore models.

This PTC cover is the protective housing that shields a PTC sensor/assembly from debris and physical damage, helping maintain reliable sensor performance and prolong component life in the appliance. What it does:

• Protects the PTC sensor or PTC assembly from dust, impact, and accidental contact
• Helps prevent shorting or intermittent sensor signals caused by contaminants
• Supports proper positioning and mounting of the PTC component
• Can help address symptoms such as visible sensor damage, exposed wiring, or intermittent operation related to a compromised sensor housing

• Disconnect power to the appliance before starting any repair
• Remove the outer panel(s) as needed to access the PTC location; handle surrounding wiring and components carefully
• Replace only with the correct OEM cover to ensure proper fit and protection

This compressor damper is a vibration-isolating mount that sits between the sealed-system compressor and the chassis. It cushions the compressor to reduce noise, limit vibration transfer, and help keep refrigerant lines from being stressed.

• Isolates the compressor from the frame to absorb start/stop shock and vibration
• Helps reduce humming, rattling, or buzzing from the back/bottom of the appliance
• Replaces a damper that's cracked, flattened, hardened, or missing
• Can help if the compressor rocks or the unit vibrates excessively

• Disconnect power and pull the unit forward for access; remove rear/service panel if present
• Support the compressor to relieve load on the mounts before removing fasteners
• Match orientation; transfer any sleeves/spacers from the old damper to the new one
• Ensure the compressor sits level and that tubing is not strained before restoring power

This drip tray catches and channels water runoff inside the appliance to help prevent pooling and minor leaks. It's a direct-fit replacement listed by the manufacturer and sold as the single tray used in the unit. What it does

• Collects condensate or defrost water and directs it to the drain area to prevent pooling.
• Helps stop water from dripping onto lower drawers, shelves or the floor.
• Commonly replaces a cracked, warped or missing tray that causes visible leaks or water buildup.
• Fits into the appliance's lower compartment where the original tray sat.

• Unplug the appliance or disconnect power before servicing.
• Remove any obstructing drawers or shelves to access the tray location; handle glass shelves carefully.
• Lift out the old tray and set the new tray into the same position; no special tools typically required.

Replacement fan guide that directs airflow from the refrigerator fan to improve cooling distribution and help keep the fan blade clear of nearby components. Restores proper airflow and can reduce rubbing or scraping noises. What it does:

• Channels airflow from the fan to promote even temperatures throughout the compartment.
• Keeps the fan blade aligned and away from cabinet walls and other components.
• Commonly replaced when cracked, warped, or broken parts cause rubbing or unusual fan noise.
• Helps maintain efficient cooling by restoring the intended airflow path.

• Disconnect power (unplug or shut off breaker) before servicing the appliance.
• Access typically requires removing the interior cover or rear evaporator cover.
• Handle the plastic guide carefully to avoid cracking; align mounting tabs and secure using the original fasteners.
• Inspect the fan blade and motor for damage while replacing the guide; replace any damaged components to avoid repeat issues.

This drain tray assembly collects and directs moisture and condensate to the drain system, helping prevent leaks and pooling under the appliance. Designed to fit the appliance's drain path and restore proper drainage. What it does:

• Captures condensate and channel water toward the drain to reduce standing moisture.
• Helps prevent water from pooling under components that could cause corrosion or odors.
• Restores proper drain routing after a damaged or cracked tray is removed.
• Works with existing hoses and clips to maintain normal drainage performance.

• Disconnect power and water before beginning repair.
• Remove access panels or components as needed to reach the drain tray; keep fasteners organized.
• Inspect surrounding seals, hoses, and clips and replace any worn parts to ensure a watertight fit.
• Reassemble panels and test the appliance for proper drainage and leaks before returning to service.

This cover assembly protects the machine components and helps keep internal machinery free of debris and accessible for repair. It provides a durable barrier that helps extend component life and maintains safe operation. What it does:

• Shields motors, belts and internal linkages from dust and lint that can cause wear
• Helps contain moving parts to reduce pinch or contact hazards during normal use
• Maintains proper component alignment by providing a stable mounting surface
• Commonly replaced when cracked, warped, missing fasteners, or damaged from impact

• One cover assembly as shown

• Disconnect power before attempting service
• Handle gently to avoid cracking plastic tabs; inspect mounting clips and screws for damage
• Reuse original fasteners only if undamaged; replace any stripped screws or broken clips

This small stopper installs in the refrigerator to limit the travel of a moving component and keep it securely in place. Replacing a broken or missing stopper prevents over-extension and helps maintain smooth, aligned operation.

• Limits the range of motion for a door, bin, or drawer to prevent over-opening or accidental removal
• Helps keep interior components aligned and operating smoothly
• Replace if cracked, missing, or deformed
• Common symptoms: drawer or bin slides out too far, door swings past normal range, or a broken plastic stop is found

• Disconnect power before servicing; remove or support the affected bin/drawer/door
• Note the old stopper's orientation and location before removal
• Transfer and reuse any original screws or clips if applicable
• Snap or fasten the new stopper in place and test for smooth movement

A small retaining pin used to secure moving parts and keep components aligned for smooth operation. Replacing a worn or broken common pin can stop rattling and restore proper fit between linked parts. What it does:

• Holds or aligns two parts together so they move correctly and stay in position
• Helps prevent rattling, looseness, or parts slipping out of place
• Works as a simple mechanical fastener—no electronics involved

• One common pin

• Disconnect power to the appliance before beginning any service
• Keep track of small parts; lay out components in order to aid reassembly
• May require removal of trim or a hinge/retainer to access the pin—use basic hand tools
• If the pin is difficult to seat, do not force; inspect mating parts for damage

This cabinet roller supports the refrigerator and lets the unit roll in and out of place for cleaning or service. Replace a worn or broken roller to restore smooth movement and help keep the appliance properly positioned.

• Supports the base of the refrigerator and enables rolling movement
• Helps with safe positioning and service access without dragging
• Common failure signs: appliance is hard to move, scraping or rolling noises, a flat-spotted/cracked wheel, or a wheel that won't turn
• Replace when the roller is damaged, seized, or missing

• Disconnect power and shut off water supply; protect flooring before moving the appliance
• With help, pull the refrigerator forward and safely support it to access the roller
• Remove mounting fasteners, install the new roller, and reuse original hardware
• Confirm level and smooth movement before returning the unit to its location

The Drier Assembly is an OEM part for LG refrigerators. This part is responsible for removing moisture and contaminants from the refrigerant. This ensures that the refrigerant circulates effectively and efficiently, preventing damage to other components and maintaining the refrigerator's cooling performance.

Causes of a bad Drier Assembly can include contamination from moisture entering the refrigerant lines, blockages from debris or particulates, and general wear and tear over time that reduces its effectiveness.

Symptoms of a bad Drier Assembly include:

• Reduced cooling efficiency or warm refrigerator temperatures
• Unusual noises from the refrigeration system
• The compressor running continuously or cycling frequently
• Frost buildup on the evaporator coils due to improper refrigerant flow

This OEM LG part is also compatible with Sears/Kenmore models.

This holder is a small mounting bracket used to secure internal components in place, helping keep parts aligned and stable for reliable operation. It provides a direct, OEM-compatible replacement to restore proper fit and function. What it does

• Secures and supports nearby components to prevent shifting or vibration.
• Restores proper alignment where a worn or broken holder causes rattling or loose parts.
• Helps maintain normal operation by keeping assemblies seated correctly.
• Works behind panels or inside assemblies where a dedicated bracket is required.

• One holder/mounting bracket as shown.

• Installation generally requires removing the panel or access cover where the holder is located.
• Use proper fasteners shown in your appliance; replace any damaged screws or clips as needed.
• Disconnect power before servicing electrical appliances to reduce shock risk.

This damper controls airflow between compartments to help maintain proper temperatures and consistent cooling. It replaces a worn or broken damper to restore normal airflow and temperature balance inside the appliance. What it does:

• Regulates air flow between compartments so the refrigerator can maintain set temperatures
• Helps reduce uneven cooling and temperature swings caused by a stuck or broken damper
• Works as part of the appliance's air distribution system to route cooled air where needed
• Common symptom: compartment temperature too warm or inconsistent airflow noise from the damper area

• One damper assembly

• High-level replacement; access usually requires removing interior panels or duct covers
• Disconnect power before any repair to avoid shock or injury
• Handle with care to avoid bending or damaging mounting tabs and linkage

The Fan Assembly is an OEM part for LG refrigerators. It is responsible for circulating air within the refrigerator and freezer compartments, ensuring consistent cooling and optimal temperature distribution. The fan assembly helps maintain the freshness of your food by evenly distributing cold air.

Common causes of a bad fan assembly include electrical issues, worn-out bearings, or obstructions that prevent the fan from spinning properly.

Symptoms of a bad fan assembly include:

• Unusual noises coming from the refrigerator
• Inconsistent temperatures within the fridge or freezer
• Frost buildup in the freezer
• Refrigerator running continuously or not cooling effectively

This OEM LG part is also compatible with Sears/Kenmore models.

The Defrost Control Assembly is an OEM part for LG refrigerators. It is designed to regulate the defrost cycle, ensuring that frost buildup on the evaporator coils is periodically melted away. This helps maintain efficient cooling performance and prevents excessive ice accumulation, which can hinder the refrigerator's functionality.

You should replace the defrost control assembly if it becomes faulty. Causes of a bad defrost control assembly can include electrical failures, regular wear and tear, or damage from power surges. A malfunctioning defrost control can lead to issues such as inadequate defrosting, which results in excessive frost buildup and affects the cooling efficiency of the refrigerator.

Symptoms of a bad defrost control assembly include:

• Frost buildup on the evaporator coils
• The refrigerator not cooling properly
• The defrost cycle not initiating or running too frequently
• Increased energy consumption due to the refrigerator working harder to maintain temperature

This OEM LG part is also compatible with Sears/Kenmore models.

The Refrigerator Control Assembly is an OEM part for LG refrigerators. This component is crucial for managing and regulating the refrigerator's cooling and defrosting cycles. It ensures the proper operation of the refrigerator by controlling the temperature and defrost settings.

Causes of a bad control assembly can include electrical surges, wear and tear over time, or moisture damage. These factors can lead to malfunctioning controls or inconsistent temperature regulation within the refrigerator.

Symptoms of a bad control assembly include:

• Refrigerator not cooling properly
• Unusual noises from the control panel
• Inconsistent temperature readings
• Refrigerator not defrosting automatically

This OEM LG part is also compatible with Sears/Kenmore.

The Door Switch is an OEM part for LG refrigerators. It is located near the door hinge and is activated by the door's movement. When the door is closed, the switch is engaged, allowing the interior light to turn off and other functions to operate normally. When the door is opened, the switch is released, triggering the interior light to turn on and potentially activating other features, such as the ice dispenser or cooling system.

Causes of a faulty door switch can include wear and tear over time, mechanical damage from excessive force, or electrical issues.

Symptoms of a bad door switch may include:

• The interior light not turning on when the door is opened
• The interior light remains on when the door is closed
• Issues with the dispenser or other functions associated with the door switch

The Dispenser Micro Switch is an OEM part for LG refrigerators. It is a component of the ice and water dispensing system, responsible for activating the dispenser when the lever is pressed.

Causes of a bad Dispenser Micro Switch can include mechanical wear from frequent use, failure due to moisture or debris affecting the switch’s contacts, or electrical faults that prevent proper signaling.

Symptoms of a bad Dispenser Micro Switch include:

• The dispenser not releasing ice or water when the lever is pressed.
• Continuous dispensing or dripping after the lever is released.
• Intermittent or no response from the dispenser controls.

This OEM LG part is also compatible with Sears/Kenmore.

The Condenser Fan Motor Assembly is a genuine OEM replacement part that plays a crucial role in the functioning of your LG refrigerator. The assembly includes the fan blade, which directs air across the condenser, and the motor that powers the fan blade. Operating at DC11V with 176mA and 1.93W, this DC motor includes an electrical plug with a 3-pin harness.

Causes of a bad DC motor can include wear and tear over time, bearing failure, electrical issues, or exposure to excessive heat or moisture. A failing motor may cause the refrigerator to malfunction or stop working altogether.

Symptoms of a bad Motor DC include:

• The refrigerator not cooling properly or not cooling at all
• Strange noises coming from the refrigerator
• The ice maker not producing ice or dispensing ice
• The compressor not running or running continuously

This OEM LG part is also compatible with Sears/Kenmore models.

This DC motor assembly drives the refrigerator's fan to move air across the coils and through the cabinet, helping maintain stable temperatures. Replacing a worn, noisy, or non-running motor restores proper airflow for reliable cooling.

• Powers the fan that circulates air across the coils and throughout the compartment
• Supports even temperatures and consistent cooling performance
• Common symptoms: fan won't run, intermittent or loud fan noise, weak/no airflow, warmer than normal temperatures
• Longer run times when failing due to reduced airflow

• Disconnect power to the appliance before servicing; use cut-resistant gloves
• Access location varies by model; remove the rear cover or interior panel to reach the fan motor
• Note connector orientation before unplugging; secure wiring fully on reassembly
• Ensure the fan spins freely after installation before restoring power

The Fan Motor is an OEM part for LG refrigerators. It is essential for circulating air throughout the refrigerator and freezer compartments to ensure a consistent and even temperature. This air circulation is crucial for proper food preservation and to prevent warm spots or frost buildup, which can occur when air does not circulate properly.

Symptoms of a bad Fan Motor include:

• The refrigerator making unusual noises such as humming or buzzing, which may indicate the motor is struggling.
• Poor cooling performance, with parts of the refrigerator warmer than usual.
• The refrigerator cycling on and off more frequently, which can be a sign of the motor overheating.

Causes of a bad fan motor can include wear and tear from continuous use, accumulation of dust or debris in the fan, or electrical issues such as faulty wiring or a burned-out motor.

This OEM LG part is also compatible with Sears/Kenmore models.

This lamp cover is the replacement clear/white lens that protects and diffuses the appliance interior light, restoring proper illumination and preventing direct bulb contact. It helps keep the light assembly enclosed and looking finished. What it does:

• Protects the interior light bulb from spills, dust, and impact
• Diffuses light for even illumination inside the appliance
• Restores a cracked, yellowed, or missing lens to improve visibility
• Prevents direct contact with the bulb for safer operation

• One lamp cover (lens) as shown

• Remove power to the appliance before replacing the lens (unplug or shut off circuit)
• Typically snaps or screws into the light housing; use care to avoid breaking the new lens
• Inspect the light housing and bulb; replace bulb if damaged before reassembly

Replacement lamp cover that protects and diffuses an appliance's interior light, restoring even illumination and shielding the bulb from spills and contact. Restores proper light output and appearance after a cracked or missing lens. What it does:

• Protects the interior light bulb from food splatter, grease, and accidental contact.
• Diffuses and evens interior illumination to reduce hot spots and glare.
• Replaces cracked, yellowed, or missing lenses that can cause dim, flickering, or exposed-bulb issues.
• Matches the original lamp housing shape and secures with the appliance's existing clips or screws.

• Always disconnect power (unplug appliance or switch off circuit) and allow the bulb to cool before beginning.
• Remove any retaining screws or clips carefully; handle the cover gently to avoid cracking.
• Seat the cover securely in the lamp housing and reinstall original hardware—do not overtighten screws.
• After installation, restore power and verify the light operates and the cover is properly seated.

The Rear Evaporator Motor Grommet is an OEM part for LG refrigerators. It's designed to secure and cushion the evaporator motor, ensuring it remains in place and operates quietly. This grommet plays a crucial role in minimizing vibrations and noise from the motor, which can otherwise lead to a disruptive refrigerator operation.

Causes of a bad Rear Evaporator Motor Grommet can result from deterioration due to cooling and thawing cycles in the refrigerator. Physical damage during cleaning or servicing may cause a loose motor fit.

Symptoms of a malfunctioning Rear Evaporator Motor Grommet include:

• Unusual noises or vibrations from the back of the refrigerator.
• The evaporator motor shifting out of place, which can affect cooling efficiency.
• Increased wear on the evaporator motor due to lack of proper cushioning and support.

This OEM LG part is also compatible with some Kenmore models.

The Front Evaporator Motor Grommet is an OEM part for LG refrigerators. This grommet cushions and secures the evaporator motor, reducing vibrations and noise during operation to ensure efficient cooling.

Causes of a bad grommet can include prolonged use leading to material fatigue, exposure to extreme temperatures, or physical damage from accidental impacts. A damaged grommet can result in increased noise and potential misalignment of the evaporator motor.

Symptoms of a bad evaporator motor grommet include:

• Increased noise from the refrigerator
• Vibrations or rattling sounds
• Poor cooling performance
• The evaporator motor becoming loose

This OEM LG part is also compatible with Sears/Kenmore.

The Ice Dispenser Door Motor is an OEM part for LG refrigerators. This motor is responsible for the operation of the ice dispenser door, controlling its opening and closing mechanism to allow ice to be dispensed without letting warm air into the freezer.

Symptoms of a bad Ice Dispenser Door Motor include:

• The dispenser door not opening or closing properly,
• Ice not being dispensed when activated,
• Unusual noises coming from the dispenser mechanism.

Causes of ice dispenser door motor failure can include electrical issues such as shorts or wiring problems, mechanical wear over time, or blockages that strain the motor.

This OEM LG part is also compatible with Sears/Kenmore.

The Door Bracket is an OEM part for LG refrigerators. This bracket supports the refrigerator door by providing stability and ensuring proper alignment during opening and closing. It plays a crucial role in maintaining the door’s secure fit, which is essential for maintaining the internal temperature and efficiency of the appliance.

Common causes of a bad door bracket include wear and tear from frequent use, impact damage, or corrosion due to moisture.

Symptoms of a bad door bracket include:

• The refrigerator door not closing properly
• The door sagging or being misaligned
• Unusual noises when opening or closing the door
• Gaps in the door seal leading to temperature inconsistencies

This OEM LG part is also compatible with Sears/Kenmore.

The Ice Room Fan Motor is an OEM part for LG refrigerators. It circulates cold air within the ice compartment to maintain the optimal temperature for ice production and storage. By ensuring even air distribution, the fan motor helps keep the ice at the right consistency and prevents it from melting or clumping together.

The ice room fan motor can fail due to various reasons, including wear and tear from continuous use, electrical issues, or obstruction from ice buildup. Over time, the motor bearings can wear out, or the fan blades can become damaged.

Symptoms of a bad ice room fan motor include:

• The ice maker not producing ice or producing less ice than usual
• Ice melting or clumping together
• Unusual noises coming from the ice compartment
• Temperature fluctuations in the ice room

This OEM LG part is also compatible with Sears/Kenmore refrigerators.

Restore proper defrost performance with this sheath heater. It warms the evaporator during the automatic defrost cycle to melt accumulated frost, keeping air passages clear so your refrigerator and freezer maintain stable, efficient temperatures.

• Heats the evaporator coil during defrost to melt frost and ice
• Helps maintain airflow and consistent compartment temperatures
• Supports efficient cooling and proper defrost drainage
• Typical failure signs: heavy frost on the evaporator cover, warm fridge/freezer, or fan noise from ice contact

• Disconnect power to the appliance before servicing
• Remove shelves/drawers and the evaporator cover to access the heater; defrost any ice buildup first
• Handle the element carefully to avoid damaging evaporator fins; transfer any reusable clips/shields from the original
• Ensure all connectors are fully seated before reassembly, then restore power and verify defrost operation

The Defrost Heater is an OEM part for LG refrigerators. This part is responsible for melting away frost and ice that accumulates on the evaporator coils during the cooling cycle, ensuring the refrigerator operates efficiently and maintains the proper temperature.

Common causes for defrost heater failure include electrical failures such as blown fuses or faulty wiring, wear and tear from normal use, and damage from moisture or corrosion.

Symptoms of a failing Defrost Heater include:

• Buildup of frost in the freezer compartment
• The refrigerator struggling to maintain the set temperature
• Leaks inside the refrigerator due to ice melting inconsistently
• Increased energy usage as the fridge works harder to cool

This OEM LG part is also compatible with some Kenmore models.

This LED assembly replaces a failed interior lighting module to restore bright, energy-efficient illumination. Designed to match the original fit and light output for a seamless replacement. What it does:

• Provides interior cabinet lighting so you can clearly see contents.
• Replaces dim, flickering, or non-working LEDs commonly caused by failed diodes or connectors.
• Restores consistent, cool-running illumination without changing appliance cooling performance.
• Matches OEM mounting points and electrical connector style for a direct-swap replacement when compatible.

• One LED assembly.

• Disconnect power to the appliance before starting any service to avoid shock.
• Remove existing light cover and mounting fasteners; transfer or replace connector per OEM instructions.
• Handle the LED module by its housing; avoid contact with LED surfaces and circuit traces.
