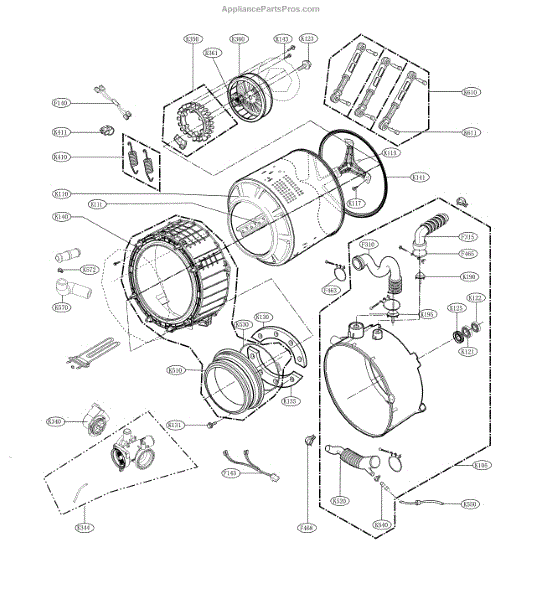

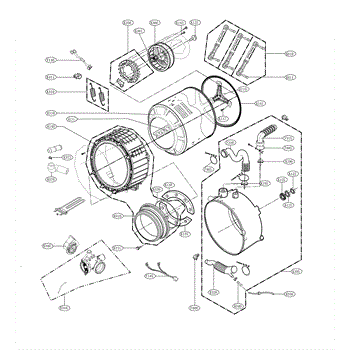

Parts for Kenmore 796.41172212 (79641172212, 796 41172212): Drum Parts

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.

The Shipping Bolt Assembly is an OEM part for LG washing machines. This assembly is used to secure the washer drum during transportation, preventing it from moving and getting damaged. Shipping bolts are essential for maintaining the integrity of the washing machine when it is being moved or installed.

Causes of a bad or missing shipping bolt assembly include improper handling during moves, wear and tear from multiple uses, or not reinstalling them when relocating the washer. Ensuring that the shipping bolts are in place is crucial for protecting the internal components of the washer during transit.

Symptoms of a missing or damaged shipping bolt assembly include:

• Excessive movement or shaking of the drum during transportation
• Internal components of the washer getting damaged during a move
• Difficulty in securing the drum for transport
• Noise or instability during washer installation

This OEM LG part is also compatible with Sears/Kenmore.

This replacement bolt assembly restores a secure connection between internal components, helping maintain proper alignment and quiet, stable operation. Use it to replace hardware that is missing, stripped, or damaged to keep parts firmly fastened. What it does

• Fastens mating parts according to the original design
• Helps prevent loosening that can lead to vibration or rattling noises
• Maintains alignment for reliable performance
• Replaces corroded, cross-threaded, or missing hardware

• One bolt assembly

• Disconnect power (and shut off water, if applicable) before servicing
• Support the component being fastened; start threads by hand to avoid cross-threading
• Tighten to manufacturer guidelines; do not overtighten
• Inspect related washers/spacers and replace if worn or distorted

Secures the washer’s tub and basket during moving to prevent internal damage. If the originals are missing after a move, install replacements for transport and remove them before using the washer.

What it does

• Locks the tub and basket to limit movement in transit
• Helps prevent suspension damage and internal rattles while relocating
• Replaces missing, bent, or stripped transport bolts
• Useful for moves, storage, or service shipments

What’s included
One shipping bolt assembly (sold individually).

Install notes

• Unplug power and turn off water before service
• Insert through the rear panel into the designated mounting point; tighten snugly—don’t overtighten
• Do not operate the washer with shipping bolts installed; remove all bolts after placement
• Some models use multiple bolts and lengths—match count/positions to your owner’s manual

Usage tip
After removal, bag and tape the bolts to the cabinet so they’re on hand for the next move.

This door hinge bracket mounts the hinge to the washer's front cabinet, keeping the door aligned so it closes and seals properly. A bent or broken bracket can lead to door sagging, poor latching, or leaks at the door.

• Secures the door hinge to the washer's front panel/cabinet
• Supports door weight to maintain alignment
• Helps preserve proper door-to-gasket contact for sealing
• Typical symptoms: door sags or rubs, won't close/latch, or water leaks at the door

• Disconnect power and shut off water before servicing.
• Support the door before removing hinge/bracket screws to prevent strain.
• Transfer the hinge to the new bracket and reinstall using existing hardware.
• Align the door and ensure latch engagement and gasket seal before fully tightening.

This lifter assembly is the plastic baffle inside the drum that lifts and tumbles laundry as the drum turns. Replacing a cracked or missing lifter restores smooth tumbling and helps prevent fabric snags and noisy operation. What it does:

• Lifts and turns items to promote effective tumbling during cycles
• Helps distribute loads more evenly and reduce thumping
• Replaces broken, loose, or missing baffles
• Addresses symptoms like rattling, clothing snagging/tearing, or poor item movement in the drum

• 1 lifter assembly

• Disconnect power before servicing
• Work through the drum opening; remove the old lifter by releasing its locking mechanism
• Align the new lifter's tabs with the drum slots, then slide/lock it securely in place
• Verify it is firmly seated and does not wobble before running a test cycle

The Spider is an OEM replacement part for LG washing machines. The spider is a central part located inside the washer tub that the inner tub spins on during the washing cycle. It plays an important role in evenly distributing load vibration across the washer tub and chassis.

Causes of a bad spider can include cracks or wear to the plastic housing over time due to continuous use and load stress, or damage from heavy impacts during transport or installation.

Symptoms of a bad spider include:

• Excessive vibration and noise during spin cycles
• The inner tub wobbling or becoming imbalanced
• Cracks or breaks in the spider housing
• Premature wear of other internal components like bearings

This genuine LG OEM replacement part is also compatible with some Kenmore models.

The Tub Ball Bearing is an OEM replacement part forLG washing machines. This crucial component supports the inner tub or drum, allowing smooth rotation during the wash and spin cycles.

Symptoms of needing to replace the tub ball bearing include:

• Excessive noise or grinding sounds during operation
• Vibration or shaking of the washing machine
• Difficulty in the tub or drum rotating or spinning

Causes of a faulty tub ball bearing can include normal wear and tear over time, exposure to excessive loads or unbalanced loads, or physical damage due to impact or mishandling.

This OEM LG part is also compatible with select Kenmore washer models.

The Tub Bearing is an OEM replacement part for LG washing machines. It is a crucial component that supports the weight of the tub and allows for smooth rotation during the wash and spin cycles.

Causes of a bad tub bearing can include excessive wear over time due to high-speed spinning, damage from overloading or unbalanced loads, or lack of proper lubrication.

Symptoms of a bad tub bearing include:

• Loud grinding or growling noises during the wash or spin cycle
• Excessive vibrations or shaking of the washing machine
• Leaks due to increased stress on the tub and other components
• Difficulty in starting or maintaining the spin cycle

This OEM LG part is also compatible with Sears/Kenmore models.

This factory bolt assembly fastens critical components securely inside your appliance. Replacing a worn, stripped, or missing bolt restores a snug fit, reduces vibration and noise, and helps prevent damage caused by loosening during operation. What it does:

• Secures mating parts to maintain alignment and structural stability
• Helps prevent vibration, rattling, and movement from a loose fastener
• Addresses issues like wobble or intermittent operation in the affected area
• Replaces damaged, corroded, or missing hardware for a reliable hold

• One bolt assembly

• Disconnect power before servicing
• Support the assembly being fastened to avoid strain or misalignment
• Start threads by hand to prevent cross-threading; tighten snugly without overtightening
• Replace companion washers or hardware if worn or damaged; match any threadlocker used on the original

The Tub Seal Gasket is an OEM part for LG washing machines. It creates a tight seal between the inner and outer tubs during the wash cycle, preventing leaks and containing water. The gasket helps prevent water from escaping the tub.

Causes of a bad gasket can include wear and tear from repeated use over time, exposure to cleaning chemicals or extreme temperatures, or damage from handling heavy loads.

Symptoms of a bad gasket include:

• Water leaking from the outer tub during operation
• Excessive moisture in areas surrounding the washer
• The tub making creaking or grinding noises
• Decreased washing or spinning performance

This OEM LG part can also be used on Kenmore/Sears appliances.

This balance weight stabilizes the washer tub during spin cycles to reduce vibration and excessive movement, helping restore quieter operation and prevent further stress on suspension components and fasteners. What it does

• Counters the rotating tub to reduce vibration and rocking during spin cycles.
• Helps stop excessive movement, banging noises, and uneven spinning that can indicate an unbalanced load or worn mounting hardware.
• Replaces a damaged or missing counterweight to regain stable, consistent spin performance.
• Mounts to the washer cabinet/tub area and secures with factory fasteners.

• Disconnect power and water supply and run a drain/spin or remove standing water before beginning work.
• Removing the washer cabinet or front panel is often required; support the tub and components while you work.
• Use appropriate hand tools and keep OEM fasteners for reinstallation; follow the appliance service manual for exact steps.
• Wear gloves and eye protection.

This Screw (drawing) is a factory fastener used to secure appliance panels and components. Replacing a stripped, corroded, or missing screw restores a tight fit, reduces vibration, and helps keep assemblies correctly aligned.

• Secures panels, brackets, and mounting points as specified by the manufacturer
• Replaces screws that are lost, damaged, corroded, or stripped
• Helps address rattling, vibration, or loose-fitting parts caused by missing hardware
• Maintains proper alignment and stability of the assembly

• Disconnect power and, if applicable, shut off gas/water before servicing
• Match the screw to its original location; start threads by hand to avoid cross-threading
• Use the correct driver; tighten snugly without over-torquing into metal or plastic
• Refer to your model's parts diagram to correct location and quantity

The Inner Door Boot Seal Clamp is an OEM part for LG washing machines. The clamp's primary function is to secure the door boot seal in place, preventing leaks during the wash cycle.

Causes of a bad Inner Door Boot Seal Clamp can include corrosion due to exposure to moisture and detergent, loss of tension over time, or physical damage which can lead to a compromised seal.

Symptoms of a bad Inner Door Boot Seal Clamp include:

• Water leaking from the front of the washing machine
• Visible rust or damage on the clamp
• The door boot seal coming loose or falling off

This genuine LG OEM replacement part is also compatible with some Kenmore models.

This washer balance weight mounts to the outer tub to absorb vibration and stabilize the drum during spin. Replacing a damaged or missing weight helps restore smoother, quieter operation and reduces movement caused by unbalanced loads. What it does:

• Adds mass to the outer tub to counterbalance spinning loads
• Helps reduce vibration, banging, and "walking" during spin
• Supports proper spin speed and cycle completion
• Replaces a cracked, crumbling, or loose tub weight

• 1 balance weight

• Disconnect power and water supply before servicing
• Access the weight by removing the necessary panels
• Support the tub and hold the weight while removing/installing bolts; tighten evenly in a crisscross pattern
• Reuse existing mounting hardware and ensure all weights and mounting points are intact before testing

This tub cover replaces the outer tub housing panel and helps protect internal wash components from water and debris while maintaining proper drum alignment. It restores the appliance cabinet integrity and supports reliable washer operation. What it does:

• Covers and protects the washer's outer tub and internal components from splashes and foreign objects
• Helps maintain proper spacing and support for the wash drum
• Can reduce water leakage paths around the tub area when installed correctly
• Addresses symptoms such as visible damage to the tub housing, loose or sagging tub trim, or water spray reaching internal components

• One tub cover

• Disconnect power and water before starting any repair
• Remove the washer cabinet or front panel as required to access the outer tub; refer to model-specific service instructions
• Inspect surrounding seals, fasteners, and mounting clips and replace any damaged pieces

The LG Door Hinge Assembly is an essential component of LG washers. This OEM replacement part is specifically designed to ensure the smooth and secure operation of the washer's door. The hinge assembly is responsible for connecting the door to the main body of the appliance, allowing easy access to the washing drum. It provides stability and durability to the door, enabling it to open and close effectively during the washing and loading processes.

This part fixes the following symptoms:

• Difficulty in opening or closing the washer door
• Door sagging or misalignment
• Excessive noise or squeaking when operating the door
• The door not staying securely closed during washing cycles
• Visible damage or wear on the hinge assembly

A replacement holder assembly that secures and supports internal components for proper alignment and operation. Restores stable mounting where the original bracket is cracked, bent, or broken so the appliance runs quietly and reliably. What it does

• Provides a secure mounting point for internal parts that rely on a fixed support
• Prevents rubbing, misalignment, and excess vibration caused by a damaged holder
• Helps restore correct component positioning to improve part interaction and operation
• Commonly used when the original bracket is cracked, worn, or no longer holds parts firmly

• One holder assembly

• Disconnect power before starting any repair; shut off water supply if the repair requires opening plumbing
• Basic hand tools typically required; handle clips and tabs gently to avoid damage
• Inspect adjacent components for wear and replace if needed for a long-lasting repair

The Motor Stator Bolt is an OEM part for LG washing machines. This bolt secures the stator to the motor, ensuring the stability and proper functioning of the washing machine's motor assembly.

Causes of a bad motor stator bolt can include wear and tear over time, improper installation, or damage from over-tightening or impact. A compromised bolt can lead to instability in the motor, potentially affecting the washer's performance.

Symptoms of a bad motor stator bolt include:

• Unusual noises during the wash cycle
• Vibrations or shaking of the washer
• The motor not functioning properly or failing to start

This OEM LG part is also compatible with Sears/Kenmore.

The wire harness links appliance components and restores a dependable electrical connection. Replace a damaged or burnt harness to correct intermittent operation or loss of function in the affected circuit. What it does:

• Routes power and signals between internal components
• Replaces cut, heat-damaged, or brittle wires and connectors
• Helps resolve intermittent operation or no response from the connected part
• Restores continuity when terminals are loose or corroded

• One single wire harness

• Disconnect power before servicing; if your appliance is connected to water, shut off the supply as applicable
• Photograph routing and connections before removal to match the original layout
• Route the new harness exactly like the original; keep clear of sharp edges, heat sources, and moving parts
• Fully seat connectors without forcing; ensure locking tabs engage

The Door Latch Hook is an OEM replacement part for LG front load washers. It is a component of the overall latch and locking assembly and works to securely close and lock the washer door. With a properly functioning latch hook, the washer door remains tightly sealed during cycles to ensure optimal water retention and the most thorough cleaning.

Symptoms of a bad door latch hook include:

• Water leaks around the door during washing cycles
• The door fails to latch fully and unlock after cycles
• Difficulty opening or closing the washer door completely
• Alignment issues like misaligned or skewed door positions

Causes of a bad door latch hook can include wear over extended use. Damage may also result from washing hard or abrasive items that put excess strain on the latch mechanism over time.

This OEM LG part is compatible with Sears/Kenmore front-load washer models as well.

This three coil solenoid is used for the cold water, bleach dispenser and prewash.

The Water Inlet Valve Assembly is an OEM replacement part for LG washing machines, designed to control the flow of water into the laundry tub. This part is responsible for opening and closing to allow water into the wash drum at the appropriate times during the wash cycle, providing the correct water level and temperature.

Causes of a bad Water Inlet Valve Assembly can include mineral deposits blocking the valve, electrical failure preventing the valve from opening or closing properly, or physical damage to the valve mechanism itself.

Symptoms of a bad Water Inlet Valve Assembly include:

• Inadequate filling of the washer drum
• Water entering the drum when the washer is off
• Unusual noises during the fill cycle
• Water that is too hot or too cold, indicating a failure in valve operation that controls temperature

This OEM LG part can also be used on Kenmore/Sears appliances.

The Float Assembly is an OEM part for LG washing machines. This part monitors and controls the water level within the appliance. It's a safety feature that prevents water overflow and potential flooding, contributing to the efficient operation of the washing machine by maintaining the correct water level for each cycle.

Causes of a bad Float Assembly can vary from simple blockages that prevent the float from moving freely to electrical faults within the switch mechanism.

Symptoms of a bad Float Assembly include:

• Water overflowing from the washing machine
• Inadequate water levels that affect the washing cycle's effectiveness
• The washing machine failing to start the fill cycle due to a malfunctioning float switch

This OEM LG part is also compatible with some Kenmore models.

This base bracket is a factory-style mounting support that secures the appliance cabinet or assembly to the base frame, restoring proper alignment and stable operation. Fits applications that use a single lower support bracket. What it does:

• Provides structural support for the appliance base, preventing sagging or misalignment.
• Stabilizes the cabinet to reduce vibration and movement during operation.
• Helps eliminate rattling or rubbing noises caused by a loose or damaged base support.
• Restores correct panel-to-frame spacing to maintain proper door and component fit.

• One base bracket

• Disconnect power and water (if applicable) before starting any repair.
• Access typically requires removing the lower access panel or cabinet; keep track of fasteners.
• Inspect surrounding mounting points and hardware; replace any stripped or damaged screws for secure fit.

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.

This base bracket mounts to the washer's lower frame to hold associated components securely in place. By keeping parts properly anchored, it helps maintain alignment and stability during operation to minimize vibration and noise.

• Attaches to the washer base and provides a mounting point for designated hardware
• Helps keep assemblies from shifting during agitation and spin
• Supports smooth, quieter operation by reducing vibration and rattling
• Common signs of failure include a bent or cracked bracket, loose/misaligned parts, or unusual noises from the base area

• Disconnect power and water supply before servicing; move the appliance for safe access
• Carefully tip or lay the washer back on protective padding; use a helper for stability
• Note the bracket's orientation and reuse existing mounting hardware as applicable
• Tighten fasteners securely and verify nearby parts have proper clearance before test run

Restore stable, level support with this replacement leg assembly. The adjustable foot steadies the unit on uneven floors, reducing vibration and rattling while allowing precise leveling for proper alignment and smooth, reliable operation.

• Provides adjustable support at the base of the unit
• Helps keep the appliance level on uneven or sloped floors
• Reduces wobble, vibration, and rattling noises
• Promotes proper door alignment and closure
• Replaces stripped, cracked, or missing leg assemblies

• Disconnect power; shut off water supply if applicable
• Carefully tilt and support the appliance to access the leg area
• Unthread the old leg; hand-thread the new assembly to avoid cross-threading, then fine-adjust with a wrench
• Level front-to-back and side-to-side; confirm stability before use

The Fabric Softener Cap is an OEM replacement part for LG front-loading washing machines. It is a replaceable component that securely fastens into the internal dispenser drawer, containing liquid fabric softener added during wash cycles. Color: blue. It measures about 2-1/2 inches wide by 4-1/2 inches deep.

Symptoms of a problematic cap could include:

• Softener stains or residue accumulating around base gasket seals
• Drips or puddles indicative of compromised sealing surfaces
• Cracks, fatigue, or warping affecting secure closure

Causes typically relate to normal plastic material breakdown after years of opening and closing cycles. Exposure to cleaning detergents could potentially deteriorate gaskets as well.

Compatible brands include Kenmore Elite and some Café laundry appliances too.

The Bleach Funnel is an OEM part for LG washing machines. This part safely dispenses and introduces liquid bleach or other cleaning agents into the wash cycle at the appropriate time.

Causes of a bad Bleach Funnel can include physical damage, wear and tear over time, or clogs from residue buildup.

Symptoms of a faulty Bleach Funnel include:

• Bleach or cleaning agents not being properly dispensed
• Leaks or residue buildup in the dispenser area
• Clogging or blockages preventing proper flow
• Washing machine not effectively utilizing bleach or cleaning additives

This OEM LG part is also compatible with some Kenmore models.

The Detergent Box Assembly is an OEM replacement part for LG washing machines. This assembly is responsible for holding and dispensing detergent and other laundry additives during the wash cycle. It ensures that the correct amounts of detergent, bleach, and fabric softener are released at the appropriate times, contributing to effective cleaning and care of your clothes.

Over time, the detergent box assembly can become worn out or damaged due to continuous exposure to water and detergent. Buildup of detergent residues can clog the compartments, and the mechanical parts of the assembly can also degrade.

Symptoms of a bad detergent box assembly include:

• The detergent, bleach, or fabric softener not dispensing properly
• Visible cracks, warping, or damage to the box
• Residues remaining in the compartments after a wash cycle
• Leaks from the detergent box area
• Error messages related to dispensing issues

This OEM LG part is also compatible with some Sears/Kenmore washing machine models.

This dispenser assembly replaces the door-mounted housing that routes water and ice to the refrigerator dispenser, restoring reliable dispensing and preventing leaks. Fits as the original-style door dispenser component. What it does:

• Channels water and ice from the door to the dispenser chute for normal dispensing operation
• Seals dispenser openings to help prevent leaks and drips at the door
• Supports the dispenser actuator and user controls (where applicable)
• Helps restore proper alignment and smooth dispensing if door components are loose or damaged

• Disconnect power and water supply before starting work to avoid electrical shock and flooding
• Replace through the refrigerator door panel; some models require removing the inner door liner and control components
• Handle with care to avoid damaging tabs and mounting clips; verify all seals and gaskets seat correctly

This drain hose cap seals and secures the refrigerator defrost drain outlet so meltwater is directed into the drain hose instead of pooling in the cabinet. Replaces a worn or damaged cap to help stop interior leaks and water buildup. What it does:

• Seals the defrost drain outlet to prevent water from spilling into drawers or onto shelves.
• Guides defrost/meltwater into the drain hose and toward the drain pan.
• Helps reduce odors and pests entering through an open drain opening.
• Fits onto the drain outlet to replace cracked, missing, or loose caps.

• Disconnect power before working inside the refrigerator to avoid electrical hazard.
• Remove shelves and drawers as needed to access the drain outlet; clear any visible debris or ice first.
• Press the cap firmly onto the drain outlet/hose until fully seated; avoid excessive force or prying tools.
• After installation, pour a small amount of warm water down the drain to confirm proper flow and seating.

The Dispenser Hose is an OEM part for LG washing machines. It connects the detergent dispenser to the washer tub, allowing detergent and other cleaning agents to be delivered effectively during the wash cycle.

Causes of a bad dispenser hose can include regular wear and tear, damage from harsh detergents, or physical damage due to kinks, pinches, or impact. Over time, the hose can become brittle, cracked, or clogged, affecting its ability to function properly.

Symptoms of a bad dispenser hose include:

• Leaks or drips from the hose area
• Detergent not dispensing correctly or at all
• Water pooling around the washer
• Visible cracks or splits in the hose

This OEM LG part is also compatible with Sears/Kenmore models.

The Vent Hose is an OEM part for LG washing machines. This hose is essential for ensuring proper ventilation within the washer, allowing air to circulate and preventing the buildup of moisture and mildew. It helps maintain the efficiency of the washing machine by facilitating the expulsion of air and excess water vapor during operation.

Causes of a bad washer vent hose can include wear and tear over time, blockages from lint or debris, or damage due to bending or pinching.

Symptoms of a bad vent hose include:

• Excessive moisture or condensation inside the washer
• Musty odors from the washing machine
• Visible cracks or holes in the hose
• Poor ventilation leading to inefficient washing cycles

This OEM LG part is also compatible with Sears/Kenmore.

The Dispenser Inlet Hose is an OEM part for LG washing machines. This hose directs water from the water inlet valve to the detergent dispenser, ensuring that water mixes with the detergent before entering the drum for efficient washing. The hose is designed to withstand high water pressure and temperature fluctuations.

Over time, the dispenser inlet hose can become clogged, cracked, or worn out due to regular use. Causes of a bad inlet hose include mineral deposits or debris buildup, wear and tear, and exposure to high temperatures or pressure that can cause the hose to degrade.

Symptoms of a bad dispenser inlet hose include:

• Leaking water around the detergent dispenser area
• Reduced water flow into the dispenser
• Visible cracks or wear on the hose
• Incomplete dissolution of detergent during wash cycles

This OEM LG part is also compatible with Sears/Kenmore.

This inlet hose routes incoming water from the washer's fill valve into the machine to support proper filling. Replace a cracked or leaking hose to stop drips, prevent water damage, and restore reliable fill performance.

• Directs incoming water from the fill valve to the dispenser/tub during wash cycles
• Maintains a sealed path to prevent internal or external leaks
• Helps the washer reach proper fill levels and timing
• Common symptoms of failure: water on the floor, leaks during fill, visible cracks or bulges, long/no fill or IE error

• Unplug the washer and turn off both hot and cold water supplies
• Keep towels or a pan handy; relieve residual water pressure before disconnecting
• Note the original routing; fully seat the hose on fittings and secure with existing clamps
• Restore water and power, then run a quick fill to check for leaks

The Drain Pump and Motor is an original LG (OEM) replacement part for LG made washing machines that is responsible for removing water from the washer at the end of the wash cycle. The pump forces water out through the drain hose so that clothing comes out free of excess water, making the drying process faster.

Symptoms of a failing Drain Pump Motor include:

• Water not draining out of the washing machine
• Noisy or unusual sounds coming from the pump area during the drain cycle
• The washing machine stopping mid-cycle

Causes of a bad Drain Pump Motor can range from obstructions in the pump or hose, which can strain or damage the motor, to wear and tear from regular use leading to motor failure. Electrical issues can also affect the motor's performance, preventing it from operating correctly.

This OEM LG part can also be used on Kenmore/Sears appliances.

The Pump Casing is an OEM replacement part for LG washing machines. It is a crucial component that houses the drain pump, which is responsible for removing water from the wash tub during the drain and spin cycles.

Symptoms of a need to replace the pump casing:

• Leaks or water seeping from the pump area
• Unusual noises or vibrations during the drain or spin cycles
• Pump failure or inability to drain water effectively
• Cracks or damage to the casing itself

Causes of a faulty pump casing can include physical impact or mishandling, excessive wear and tear over time, or potential manufacturing defects.

This OEM LG part is also compatible with Sears/Kenmore washing machines.

The LG Stator Assembly is an OEM component for LG washing machines. It is the central electromechanical part that transforms incoming AC power into the rotational force needed to turn the washer basket. Magnetic fields generated by the stator coil spin the internal drum during wash and rinse cycles.

Symptoms of a bad stator assembly include:

• The basket not spinning or agitating at all
• Buzzing noises coming from inside the washer cabinet
• Tripped circuit breakers or blown fuses indicating power issues

Causes of failure relate to excessive heat built up over many years that damages insulation or coils within the stator. Wiring connections may also degrade. Without sufficient power transmission from the stator, critical cleaning functions do not occur.

This LG replacement part is also compatible with Kenmore models using LG parts.

The Sensor Assembly is an OEM part for LG washing machines. This component is crucial for detecting and monitoring various conditions within the washing machine, such as water level, temperature, and load balance. It ensures the machine operates efficiently and effectively by providing accurate data to the control board.

Causes of a bad sensor assembly can include wear and tear from regular use, exposure to water and detergents, electrical malfunctions, or damage from impact. A faulty sensor assembly can lead to incorrect readings, which can affect the washing machine’s performance and lead to issues such as improper water levels or unbalanced loads.

Symptoms of a bad Sensor Assembly include:

• Incorrect water levels during cycles
• The washing machine stopping mid-cycle or not completing cycles
• Error codes related to water level or load balance
• The machine failing to start or operate correctly

This OEM LG part is also compatible with Sears/Kenmore models.

The Rotor Assembly is an OEM part for LG washing machines. This component is critical for the proper functioning of the washer's motor, helping to rotate the drum during the wash and spin cycles. It works in conjunction with the stator to generate the necessary magnetic fields for drum rotation.

Causes of a bad rotor assembly can include excessive wear over time, exposure to heavy loads, or physical damage due to mishandling. A malfunctioning rotor assembly can hinder the washer’s ability to spin and agitate effectively.

Symptoms of a bad rotor assembly include:

• The drum not spinning or agitating properly
• Unusual noises such as grinding or clunking during operation
• Error codes related to motor issues displayed on the control panel
• The washer not completing wash cycles correctly

This OEM LG part is also compatible with Sears/Kenmore models.

This water level pressure switch senses the washer tub's water level and signals the control to start or stop filling. It restores accurate fill detection for proper wash cycles and helps prevent overfilling or improper operation. What it does:

• Detects water level via a vacuum hose and tells the control board when to stop filling
• Helps prevent overfill, underfill, and related cycle interruptions
• Can resolve symptoms like washer not filling, overfilling, or stopping mid-cycle
• Works as the sensing interface between the tub and the control system

• One water level pressure switch assembly

• Disconnect power and shut off water supply before replacing the part
• Note the vacuum hose routing and electrical connector locations before removal
• Handle the small vacuum hose and plastic fittings gently to avoid damage or air leaks

The Suspension Spring is an OEM part for LG washing machines, specifically designed to support the tub assembly and maintain its stability during the wash and spin cycles. This spring plays a critical role in absorbing vibrations and reducing the amount of movement transferred to the washing machine's frame, ensuring smooth and quiet operation.

Causes for a Suspension Spring to fail include normal wear and tear from repeated use, overloading the washing machine beyond its capacity, which can stretch or stress the springs, and corrosion from exposure to moisture and laundry detergents.

Symptoms of a bad Suspension Spring include:

• Increased vibration and noise during the spin cycle.
• The washing machine "walking" or moving from its original position.
• Uneven drum movement, leading to inconsistent washing and spinning.

This OEM LG part can also be used on Kenmore/Sears appliances.

The Power Cord Assembly is an OEM replacement part for LG front-loading washing machines. As the primary connection to household electricity, this cord safely delivers the required voltages to internal components.

Causes of a damaged or defective cord typically involve accidental cuts, abrasions or punctures accumulated over time. Repeated bending stresses during installations can prematurely crack insulation as well.

Symptoms of a problematic power cord include:

• Inability to power "On" when plugged in
• Tripped breakers or ground fault outlets
• Visible wire fraying or other signs of compromised integrity

This OEM assembly fits some Kenmore/Sears machines and protects against potential shock or fire hazards.

This Hose, Pump is an OEM part for LG washing machines. It plays a crucial role in the appliance's water management system, connecting the pump to the drum or the outlet, and facilitating the flow of water during various washing cycles.

Hoses in washing machines can degrade due to wear and tear, exposure to high water pressure, or damage from external factors. A malfunctioning hose can lead to water leakage, and inefficient draining, and could potentially cause water damage.

Symptoms of a failing pump hose in a washing machine include:

• Water leaking from the washer during or after the cycle.
• Puddles forming around the washer, indicating a leak.
• The washing machine failed to drain water properly.
• Unusual noises during the draining phase, possibly caused by water struggling to pass through.
• Signs of wear, such as cracks or bulges, on the hose.

This OEM LG part is also compatible with some Sears/Kenmore models.


The Washer Door Lock Switch is an OEM part for LG washing machines. This critical safety feature locks the washer door during operation to prevent it from being opened, which ensures safety and proper functioning. The door lock switch also communicates with the washer's control system to indicate that the door is securely closed and the machine can begin its cycle.

Symptoms of a bad Washer Door Lock Switch include:

• The washing machine refusing to start, despite the door appearing to be closed.
• The door failing to lock properly, or the lock releasing prematurely during a cycle.
• Error messages on the washer's display related to door closure issues.

Causes of a bad door lock switch can include mechanical failures such as worn or damaged locking mechanisms, electrical issues like faulty wiring or failed solenoids, or alignment problems that prevent the door from engaging the switch properly.

This OEM LG part is also compatible with Sears/Kenmore models.

This protective cover shields internal components and wiring from dirt, moisture and accidental contact, helping keep the appliance safe and functioning properly. It's a small replacement panel that restores the appliance's factory protection. What it does:

• Covers and protects internal parts and wiring from debris and accidental impact
• Prevents loose components from rattling or shifting during operation
• Helps maintain proper spacing and alignment of nearby panels and clips
• Addresses symptoms like visible damage, missing cover, exposed wiring, or unusual noise from loose trim

• Disconnect power before starting any repair to avoid shock or injury
• Typically secures with clips or a few screws; use basic hand tools and take care not to strip fasteners
• Inspect mounting tabs and surrounding trim for damage; replace any broken clips before reassembly

This hose clamp secures a rubber hose connection to prevent leaks where the hose meets its fitting. A tight, uniform seal helps maintain proper water flow and keeps the appliance operating reliably.

• Provides a tight, 360-degree seal around the hose barb/fitting
• Helps correct issues like water leaks at the hose connection point
• Maintains correct hose attachment during operation and vibration
• Step-less ear design distributes clamping force evenly

• Unplug power and shut off water supply before servicing
• Note clamp orientation and hose routing before removal
• Use appropriate ear-clamp pincers or pliers to compress the clamp evenly
• Check the hose and fitting for wear; replace if cracked or deformed

This door boot gasket forms the flexible seal between the outer tub and cabinet opening on a front-load washer to keep wash water contained. Replace a torn or moldy boot to stop leaks and lingering odors.

• Creates a watertight seal between the outer tub and the door opening
• Flexes with drum movement to maintain a reliable barrier during wash and spin
• Helps resolve leaks at the door, visible rips or cracks, water on the floor after a cycle, and musty smells that persist after cleaning

• Unplug the washer and turn off water supply before servicing
• Remove the front panel as needed; note the boot's orientation before removal
• Clean mounting grooves; seat the new boot evenly all the way around and secure clamps firmly
• Run a quick cycle to check for leaks after reassembly

This noise filter assembly conditions incoming AC power to reduce electromagnetic interference before it reaches the control system. A failed line filter can cause no power, intermittent shutdowns, or breaker trips; replacing restores stable, reliable operation. What it does:

• Filters EMI/RFI on the power line to help protect sensitive control electronics
• Helps prevent interference that can cause no power, flickering display, or random resets
• A failing filter may trip a breaker/GFCI when the unit is plugged in or starts a cycle
• Visual clues can include scorch marks, burnt odor, or a cracked/bulged filter body

• 1 noise filter assembly

• Disconnect power before servicing; verify the outlet is de-energized
• Access is typically near the power cord entry behind a rear/top panel (varies by model)
• Label or photograph wire positions and transfer connections one by one; secure the ground
• Mount firmly and route wires to avoid pinching; reassemble and test for proper operation

• Line filter, EMI filter, RFI filter

The Gasket is an OEM part for LG washing machines, designed to ensure a watertight seal between the door and the washing machine's drum. This door gasket prevents water leaks during operation. Made from flexible, durable rubber, it conforms to the door and frame, creating a secure seal that keeps water contained within the washer during cycles.

Causes for a Gasket to fail include normal wear and tear from frequent use, chemical degradation from laundry detergents and cleaners, and buildup of residue that can cause the material to deteriorate or lose its elasticity.

Symptoms of a bad Gasket include:

• Water leaking from the front of the washing machine
• Visible signs of wear, such as cracks, tears, or holes in the gasket.
• The presence of mold or mildew on the gasket
• Difficulty closing the washer door, or the door not sealing properly.

This OEM LG part can also be used on Kenmore/Sears appliances.

NOTE: This gasket has a drain hole. For a gasket without a drain hole, order 4986ER0004B.

The Tub to Pump Hose is an OEM replacement part for LG top-load washing machines. This hose safely transports water between the wash tub and drain pump. The hose measures 13 inches in length.

Causes of failure relate to constant flexing under water pressure strains that accumulate over years of usage. Excess minerals in hard water areas promote accelerated breakdown of flexible PVC material.

Symptoms of a cracked or leaking tub to pump hose include:

• Water not draining or taking an abnormally long time
• Water continually accumulating inside the machine cabinet
• Error codes related to drainage issues displayed
• Puddles forming near or under the back of the washer

This genuine LG hose is also compatible with select Sears/Kenmore units as well.

The Inner Door Gasket Clamp is an OEM part for LG washing machines. It secures the inner door gasket in place, ensuring a tight seal to prevent water leaks during the wash cycle. This clamp is essential for maintaining the efficiency and reliability of the washing machine by keeping the door gasket firmly in position.

Over time, wear and tear, exposure to water and detergent, or accidental mishandling can compromise the integrity of the clamp, leading to potential leaks.

Symptoms of a bad inner door gasket clamp include:

• Water leaking from the door area
• The door gasket not staying securely in place
•  Visible damage or corrosion on the clamp

This OEM LG part is also compatible with Sears/Kenmore.

The Air Chamber is an OEM part for LG washing machines. This part connects to the pressure switch and ensures the washer machine fills with the correct amount of water for the selected cycle.

Causes of a bad  Air Chamber can include clogging due to detergent residue or debris, cracks or perforations that lead to air leaks, and aging of the material, which might compromise its integrity and function.

Symptoms of a faulty Air Chamber include:

• Inaccurate water level readings leading to overfilling or insufficient water during cycles
• Unusual noises during the fill cycle, indicating air escaping
• The washing machine failing to start the wash cycle due to improper water level detection
• Error codes displayed on the machine that relate to water level issues

This OEM LG part is also compatible with some Kenmore models.

The Hose is an OEM part for LG washing machines. This component is crucial for the proper flow of water into and out of the washing machine, ensuring efficient washing and rinsing cycles. The hose is designed to withstand high water pressure and regular use.

Causes of a bad hose can include wear and tear over time, exposure to harsh water conditions, or accidental damage such as kinks or punctures. Ensuring the hose is in good condition is essential to prevent leaks and maintain optimal water flow.

Symptoms of a bad hose include:

• Water leaks around the hose connections
• Reduced water flow into or out of the washing machine
• Visible cracks, bulges, or kinks in the hose

This OEM LG part is also compatible with Sears/Kenmore.

The Damper Assembly is an OEM replacement part for LG washing machines. It is a critical component that helps regulate the balance and vibration levels during the spin cycle.

Causes of a bad damper assembly in a washing machine can include excessive wear and tear due to repeated high-speed spinning, damage from excessive vibrations or unbalanced loads, or failure of the internal components responsible for dampening and stabilizing the tub motion.

Symptoms of a bad washing machine damper assembly include:

• Excessive shaking or vibrations during the spin cycle
• Loud thumping or banging noises
• The washer visibly moving or walking across the floor
• Potential leaks due to increased stress on the tub and other components

This OEM LG part is also compatible with Sears/Kenmore models.

The Hinge Pin is an OEM part for LG washing machines. It serves as a pivot point for the washer door, allowing it to open and close smoothly. This component is crucial for maintaining the proper alignment and function of the washer door, ensuring a secure and reliable seal during operation.

Common causes of a bad hinge pin include frequent use leading to wear and tear, physical damage from accidental impacts, or rust and corrosion over time. A compromised hinge pin can result in misalignment of the door, affecting the washing machine's ability to close properly and maintain an effective seal.

Symptoms of a bad hinge pin include:

• Difficulty opening or closing the washer door
• Door not staying securely closed during operation
• Squeaking or grinding noises when the door is moved
• Visible wear or damage to the hinge pin

This OEM LG part is also compatible with Sears/Kenmore models.

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.
